SKU:

FLANGE SIZE

6 INCH 7 INCH

HANDLE

DUAL NONE SINGLE

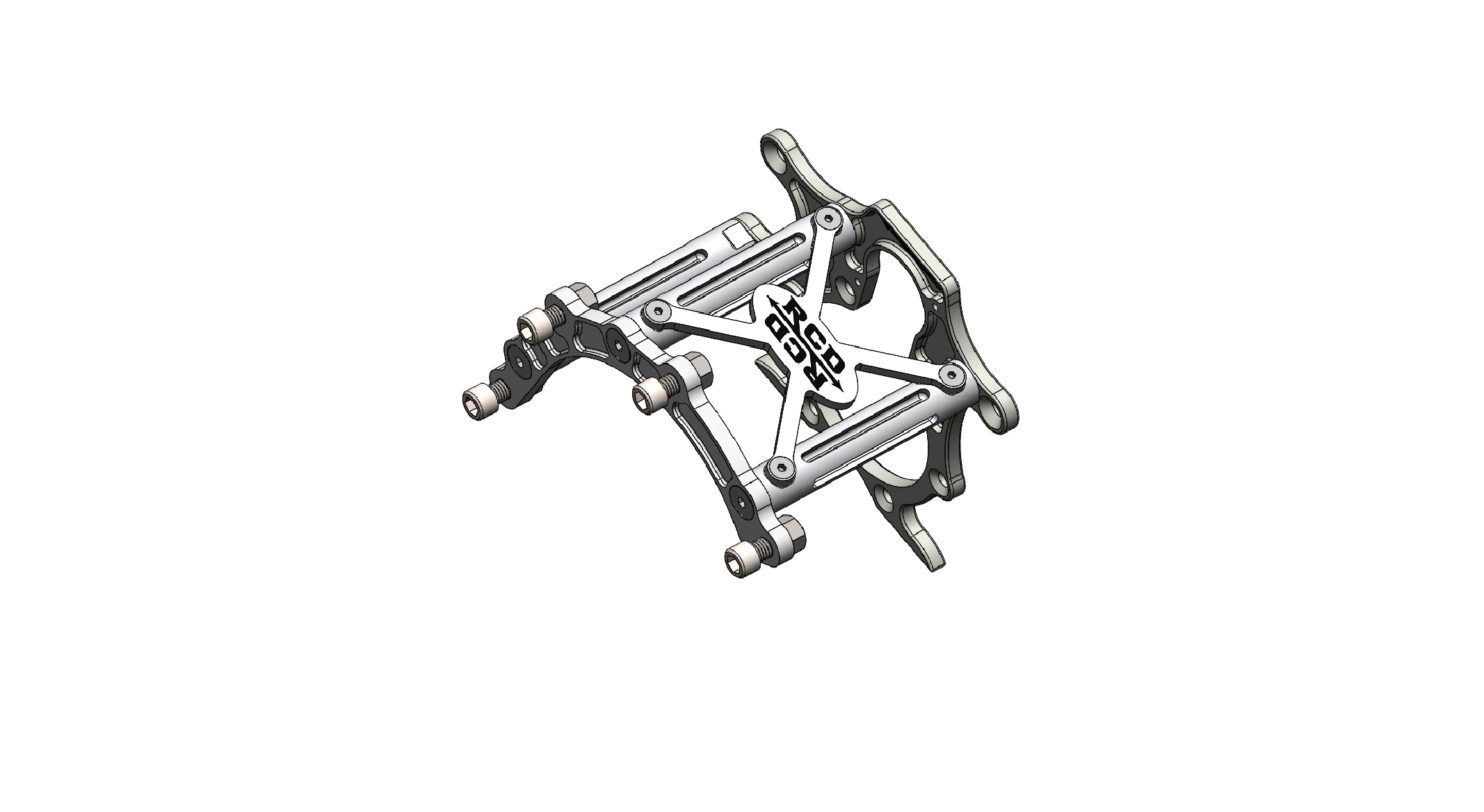

FLANGE SIZE 6 INCH HANDLE DUAL 275.46 102510-0003 This assembly is for a starter with a 6" flange it has mounts for dual handles.

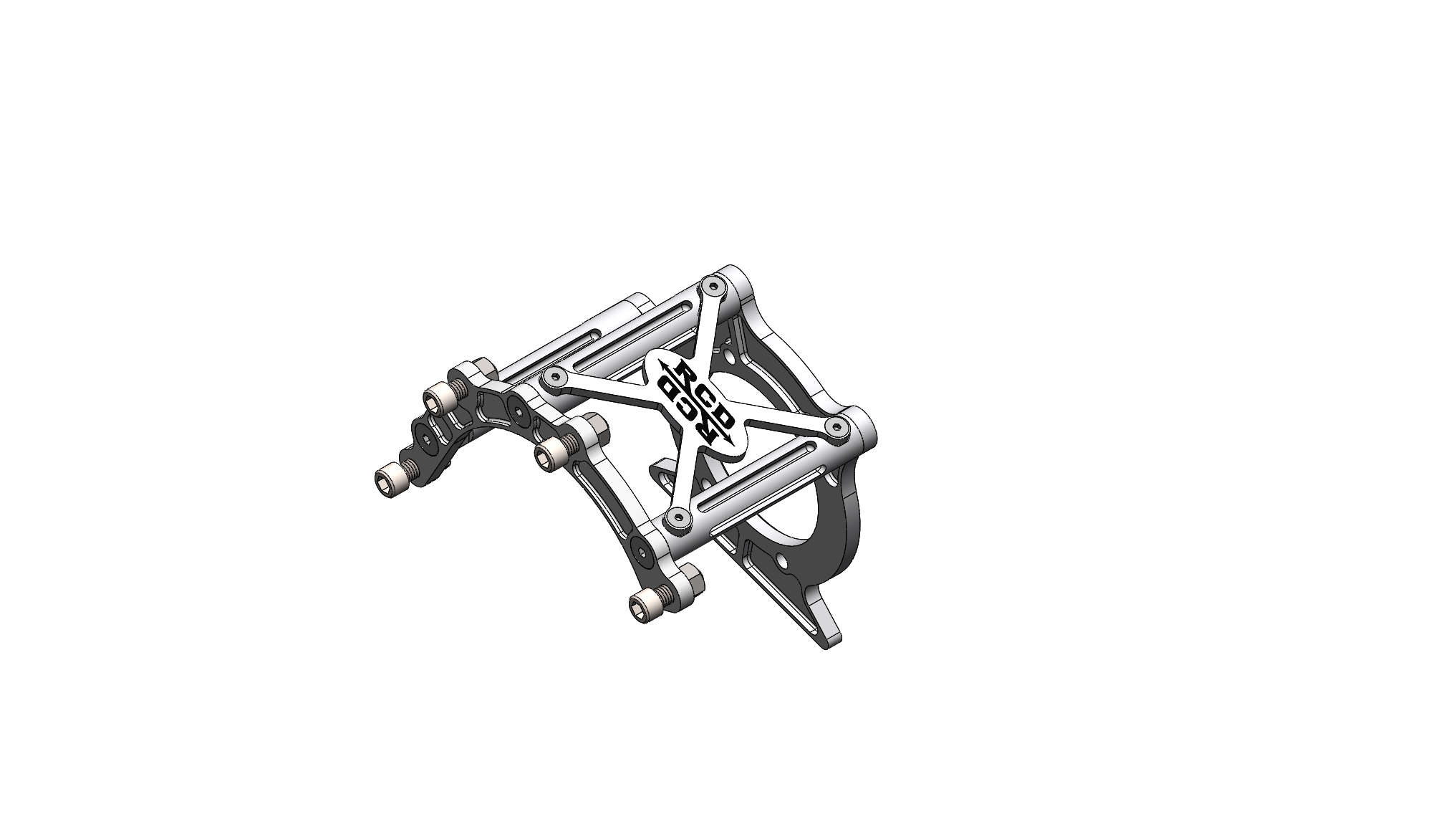

FLANGE SIZE 6 INCH HANDLE NONE 258.27 102510-0006 This assembly is for a starter with a 6" flange it has no handle mount.

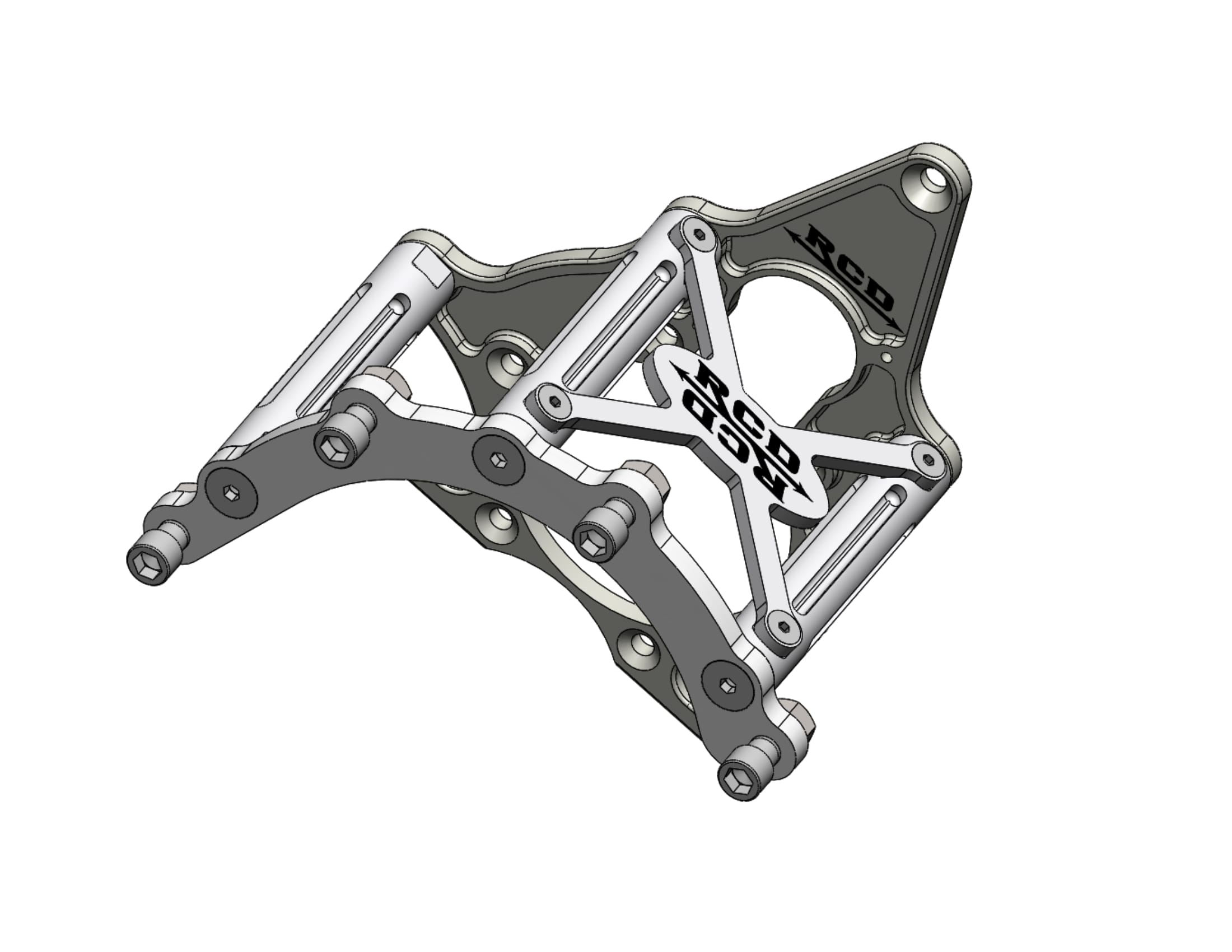

FLANGE SIZE 6 INCH HANDLE SINGLE 269.89 102510-0005 This assembly is for a starter with a 6" flange it has a mount for one handle.

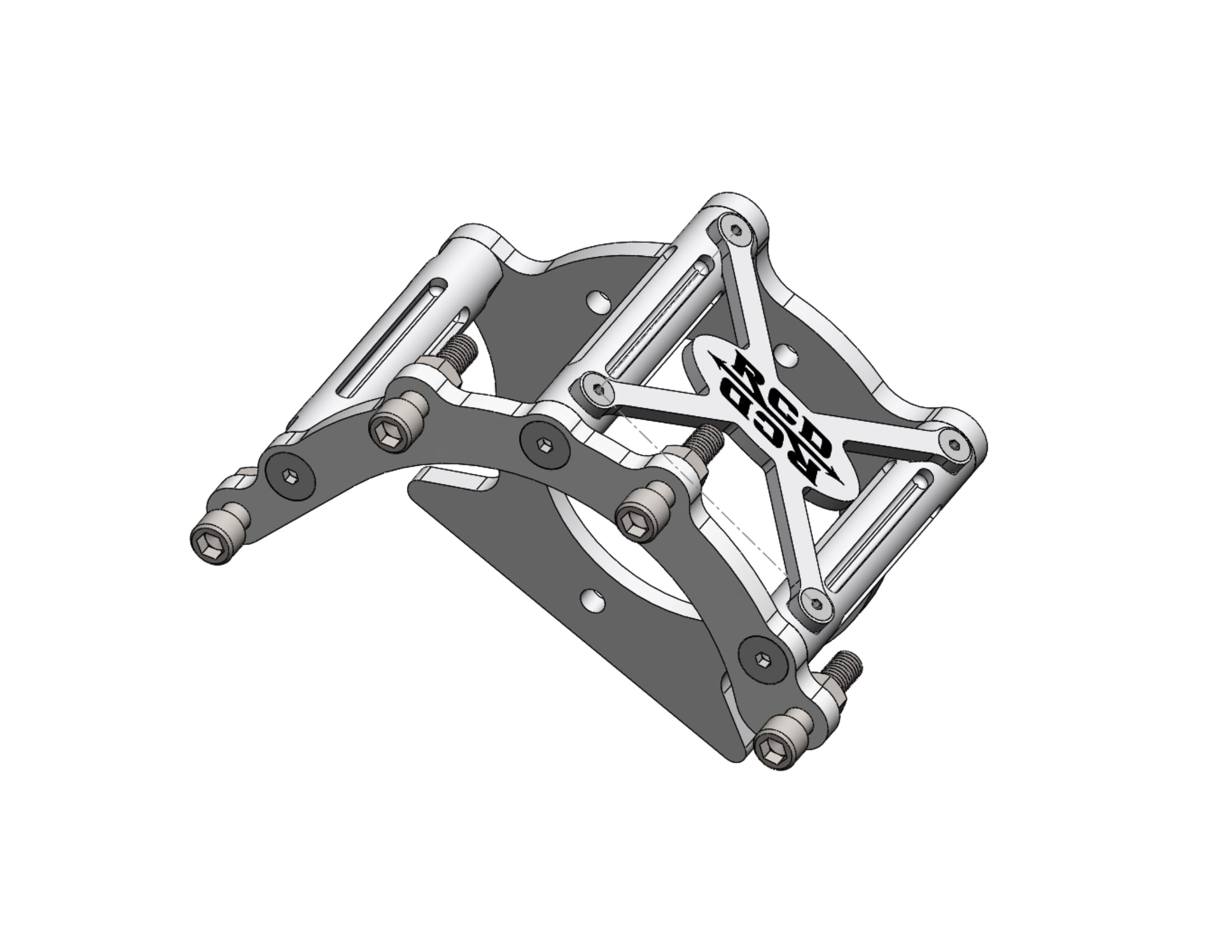

FLANGE SIZE 7 INCH HANDLE NONE 258.27 102510-0007 This assembly is for a starter with a 7" flange it has no handle mount.

X-BRACE STARTER FRAME ASSEMBLIES

BACK

These assemblies consist of an backplate and front plate machined from 3/8” thick 2024 aluminum, they are connected by 1.0” diameter aluminum stands, all are anodized black. The front faceplate has four 7/16-14 bolts to engage the keyed holes on the starter plate. Available in several different configurations to fit your application.

102510-0003 DUAL HANDLE X-BRACE STARTER FRAME RCD GEARHEAD.PDF		Download
102510-0005 X-BRACE STARTER FRAME LONG 6IN RCD GEARHEAD BOM.PDF		Download
102510-0006 X-BRACE STARTER FRAME 6IN BOM.PDF		Download
102510-0007 X-BRACE STARTER FRAME 7IN BOM.PDF		Download
