Products / STANDS

SKU:

LENGTH

2.95 3.75 4.1 4.25 4.5 4.75 5.0 5.15 5.5 6.0

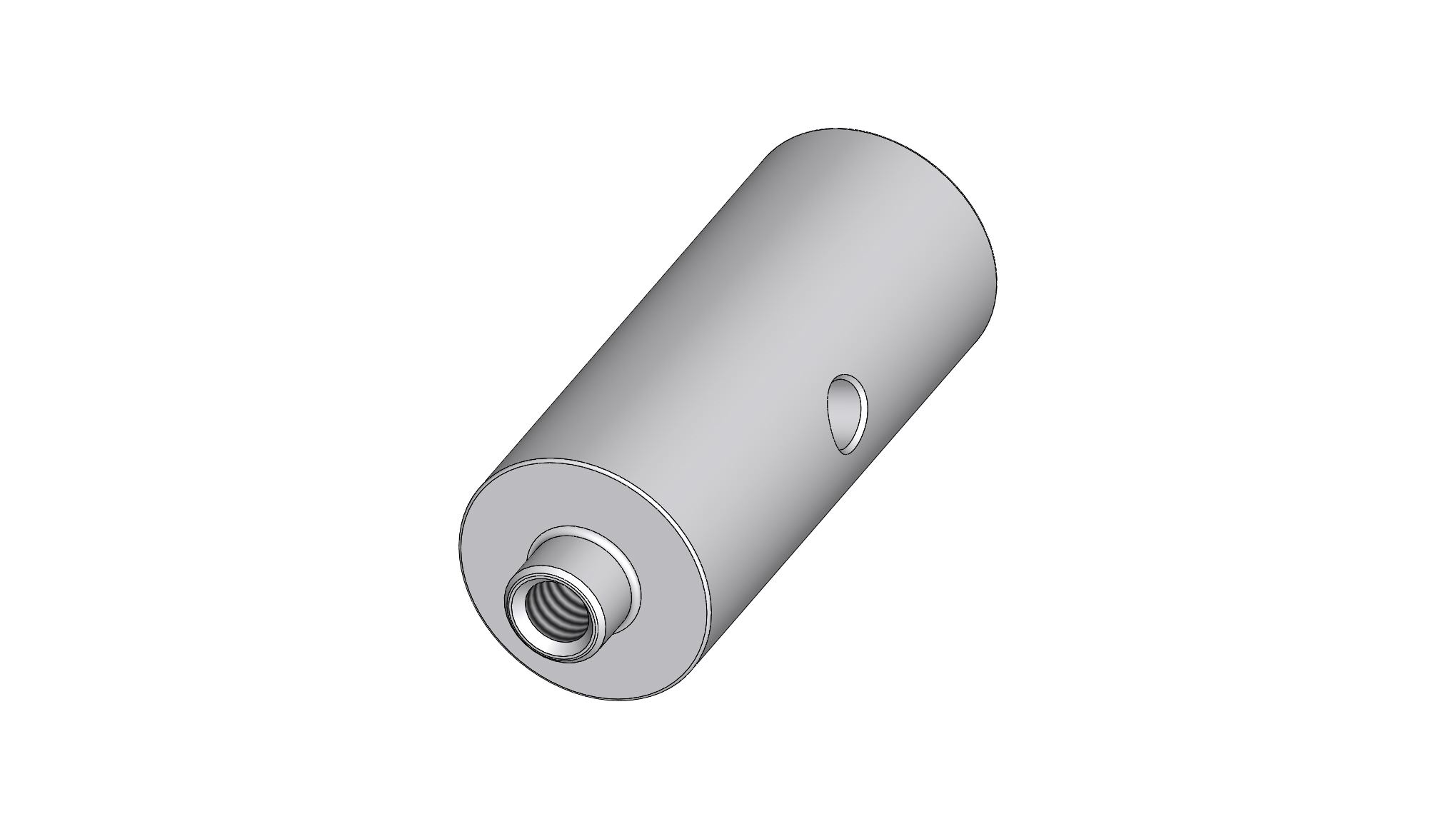

LENGTH 2.95 47.23 202035-05 These stands locate the face plate 2.95" from the front of the struts.

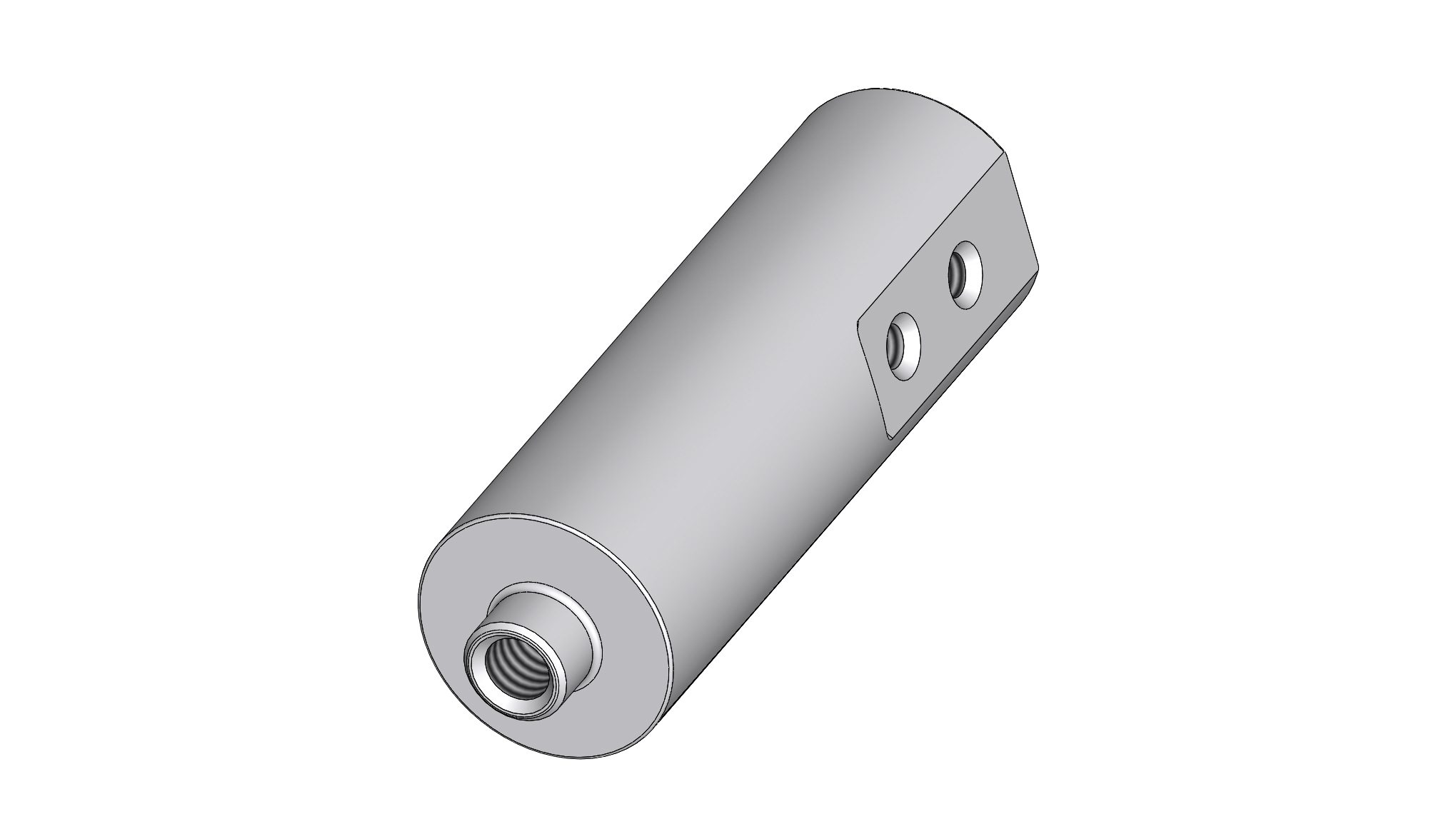

LENGTH 3.75 48.35 202035-10 These stands locate the face plate 3.75" from the front of the struts.

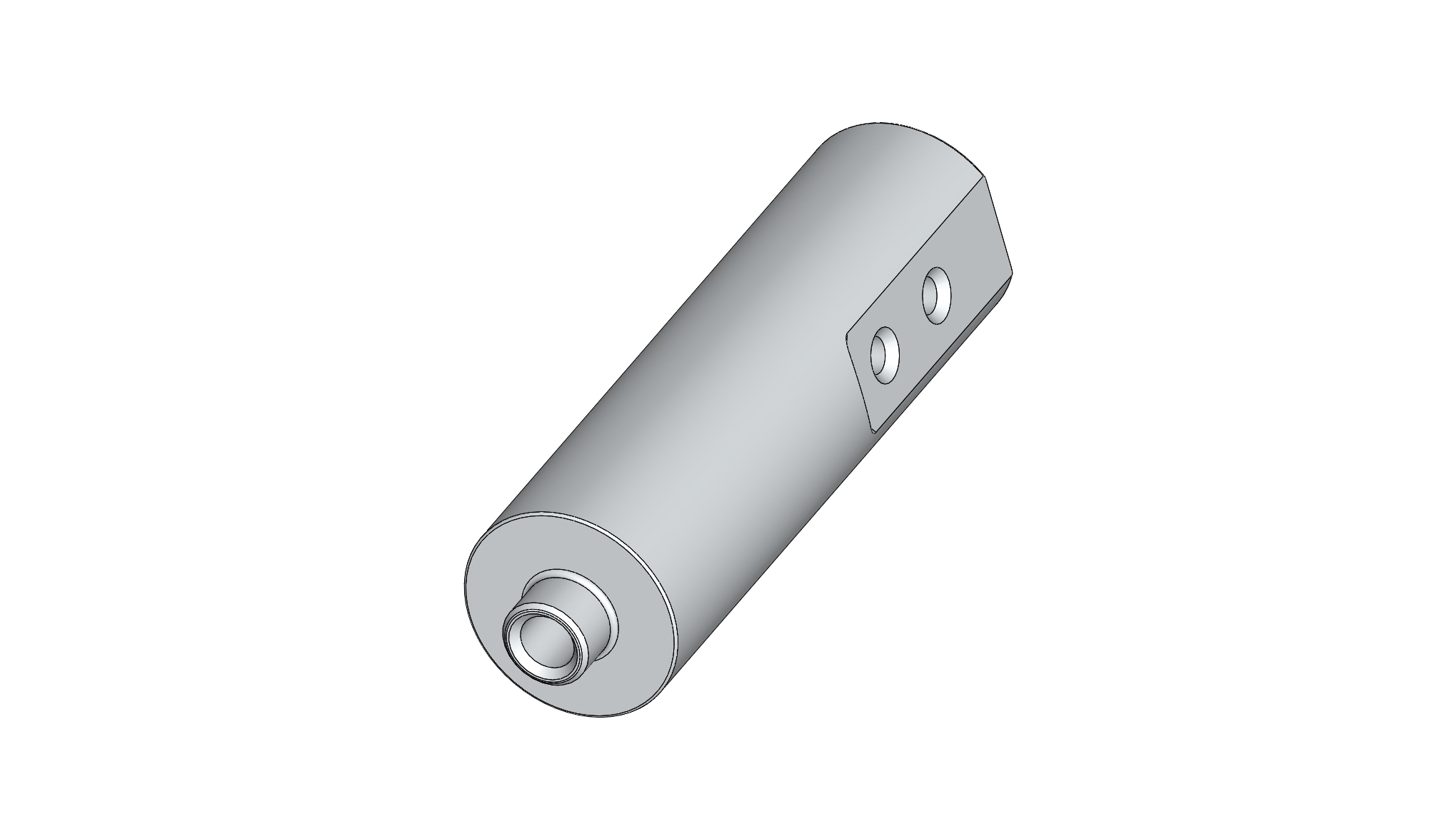

LENGTH 4.1 49.48 202035-15 These stands locate the face plate 4.10" from the front of the struts.

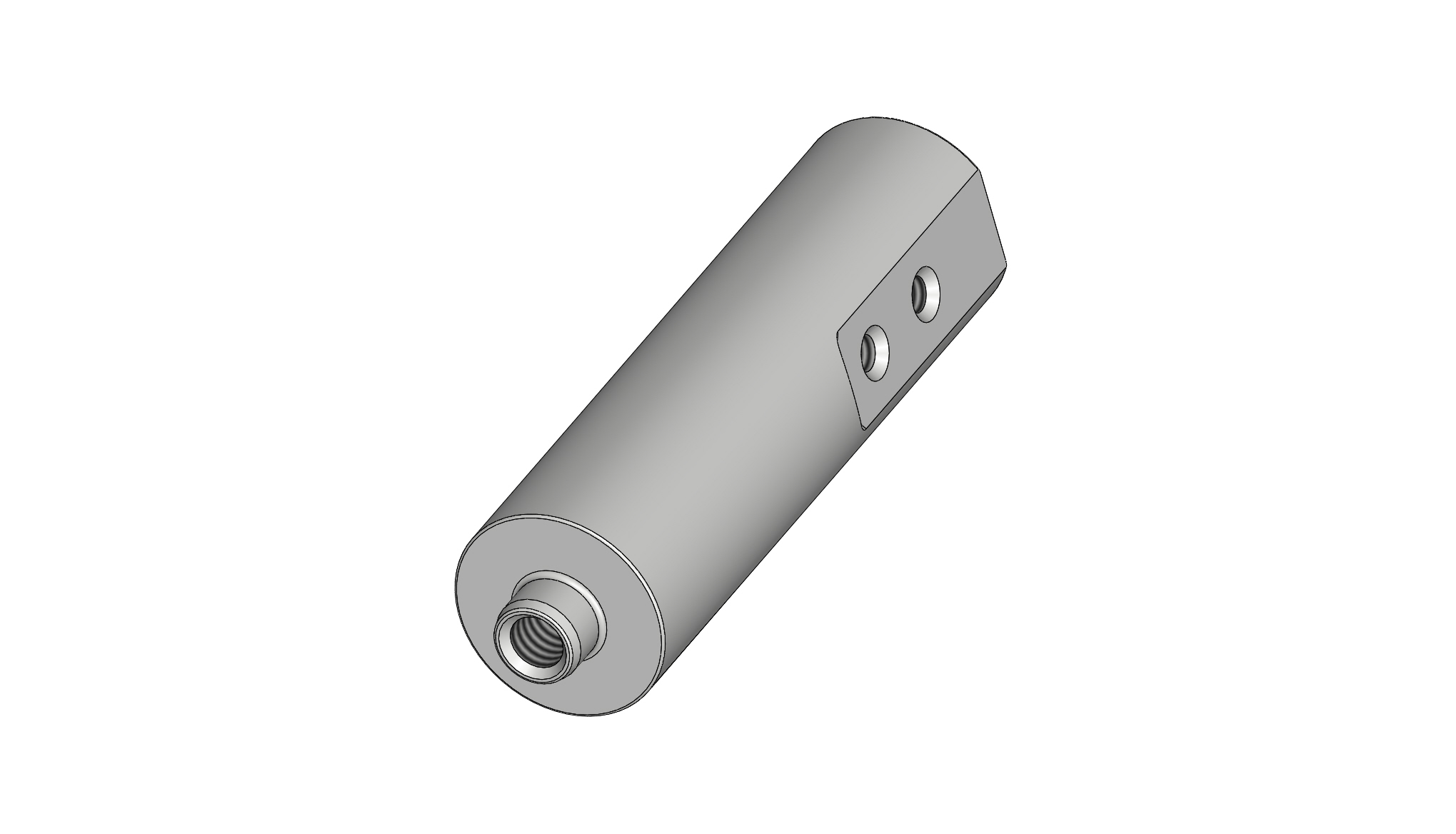

LENGTH 4.25 49.48 202035-20 These stands locate the face plate 4.25" from the front of the struts.

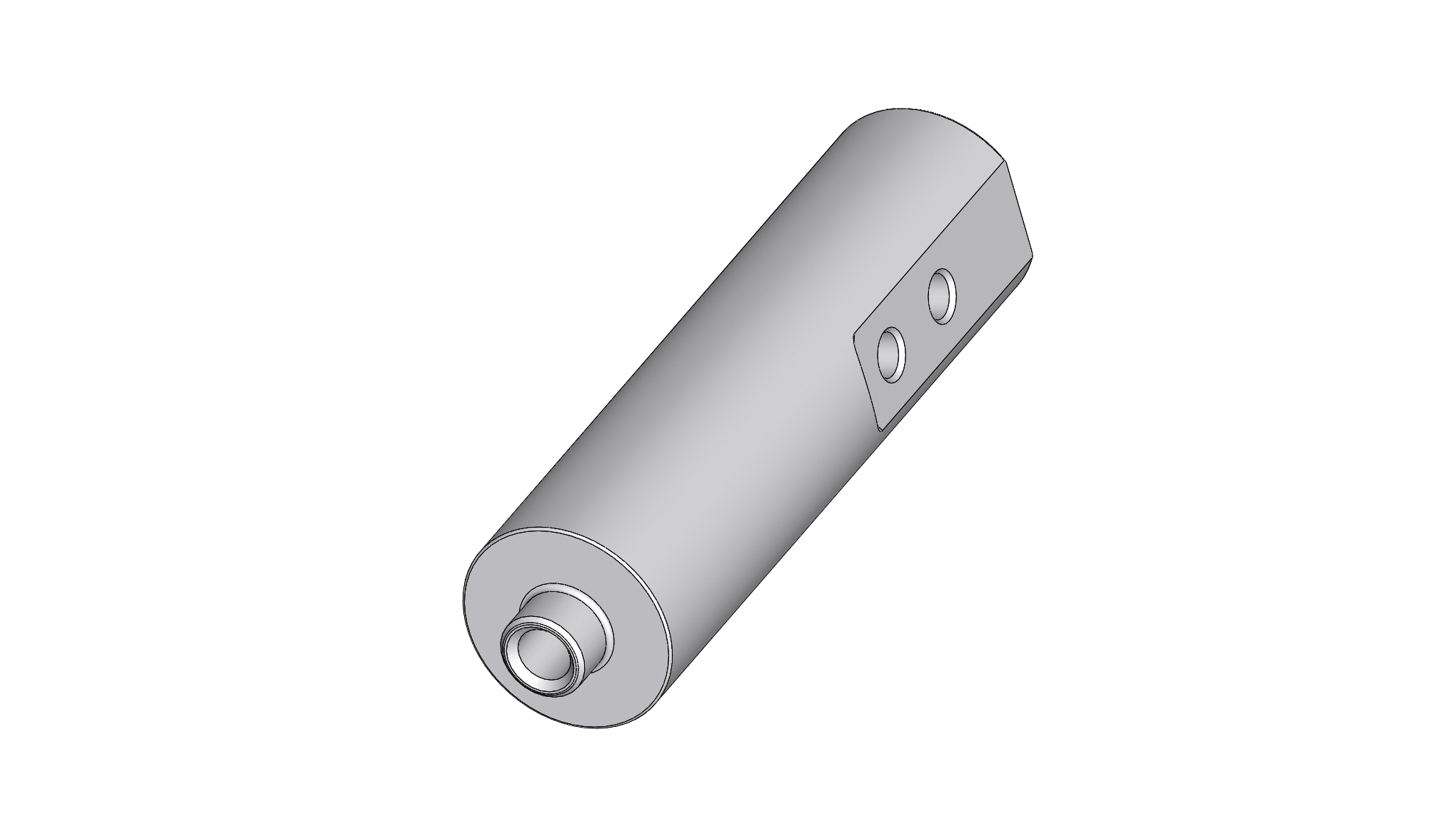

LENGTH 4.5 49.48 202035-25 These stands locate the face plate 4.5" from the front of the struts.

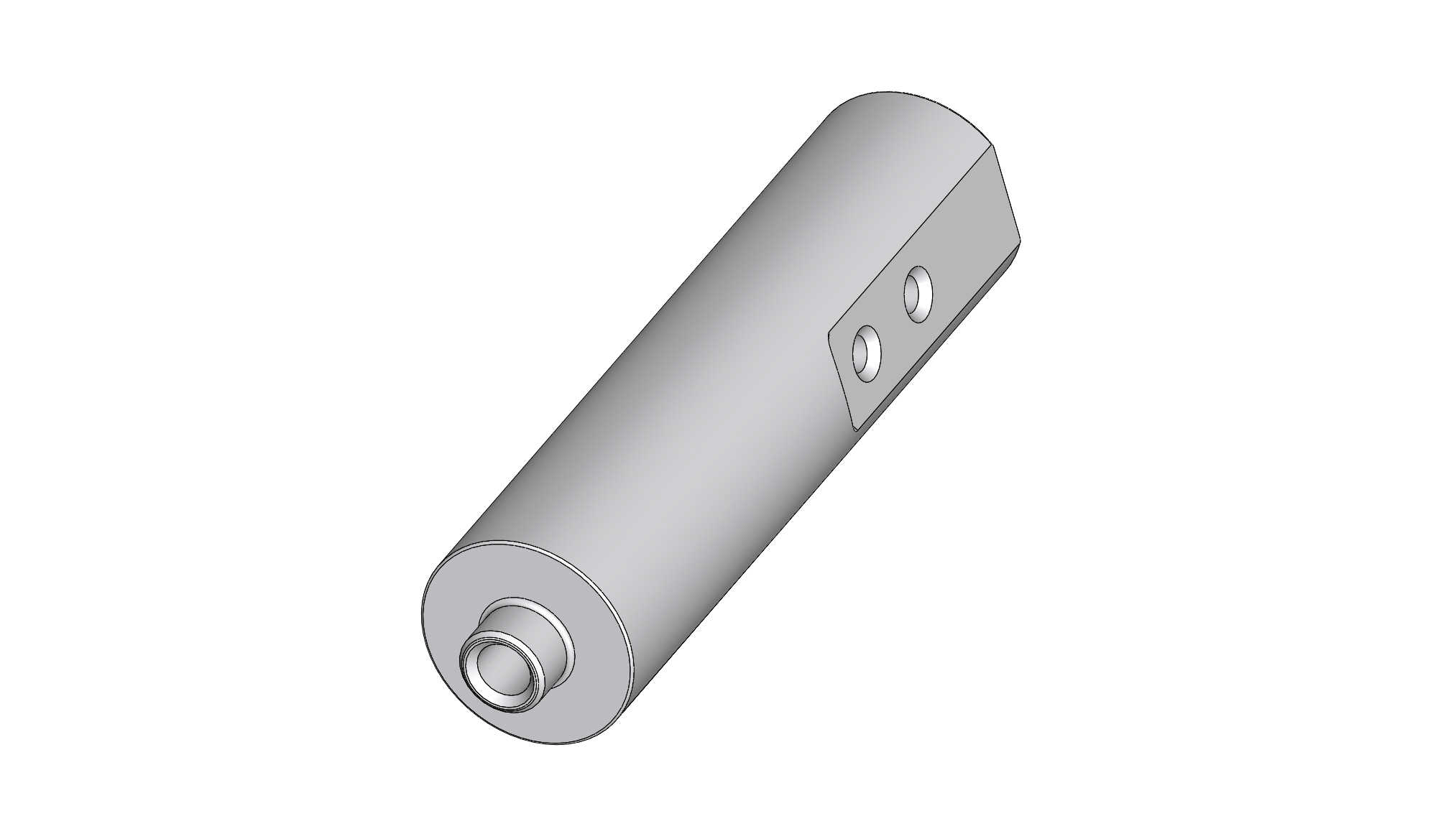

LENGTH 4.75 49.48 202035-30 These stands locate the face plate 4.75" from the front of the struts.

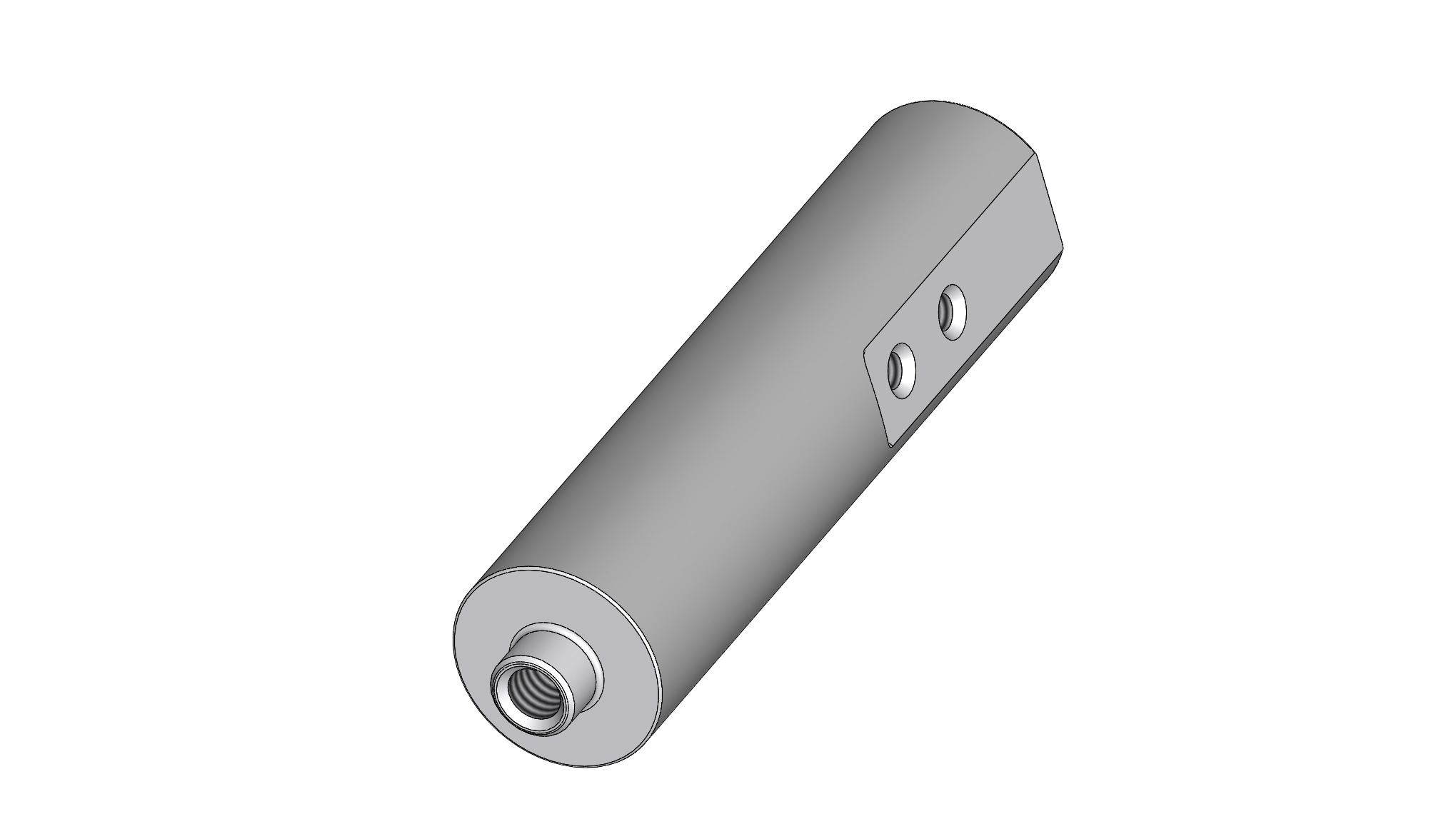

LENGTH 5.0 50.61 202035-35 These stands locate the face plate 5.00" from the front of the struts.

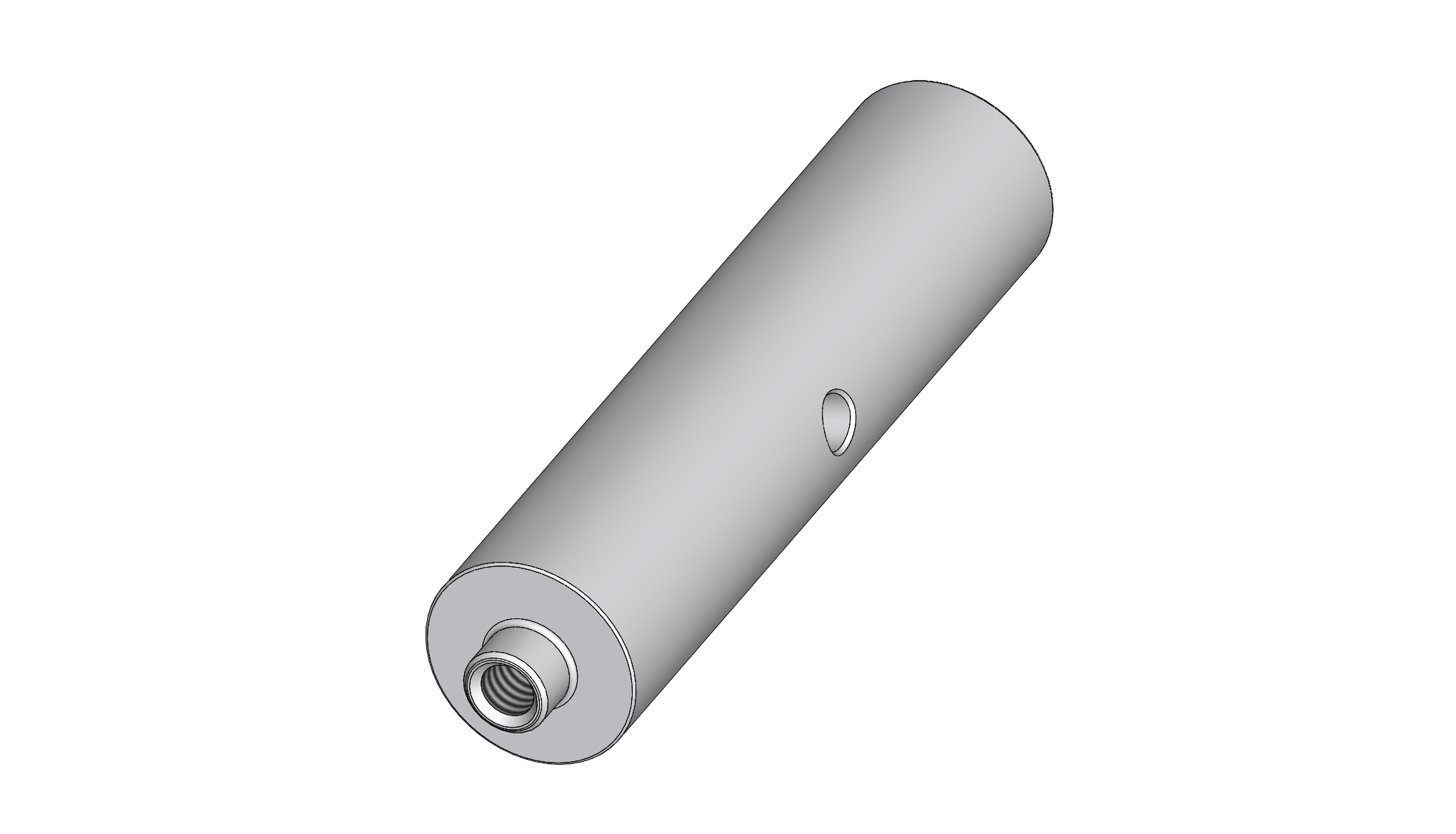

LENGTH 5.15 55.86 202035-36 These stands locate the face plate 5.15" from the front of the struts.

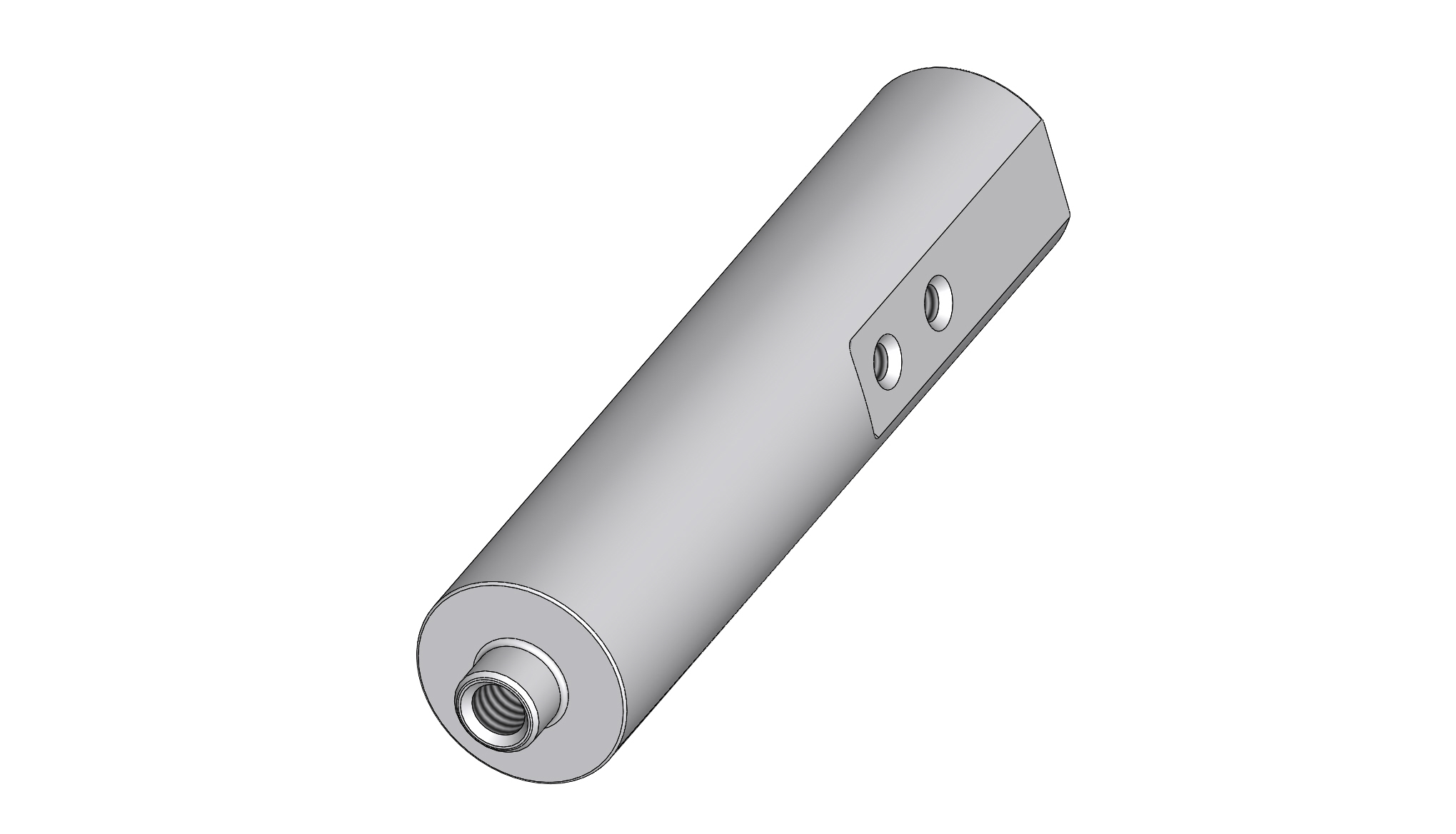

LENGTH 5.5 50.61 202035-40 These stands locate the face plate 5.5" from the front of the struts.

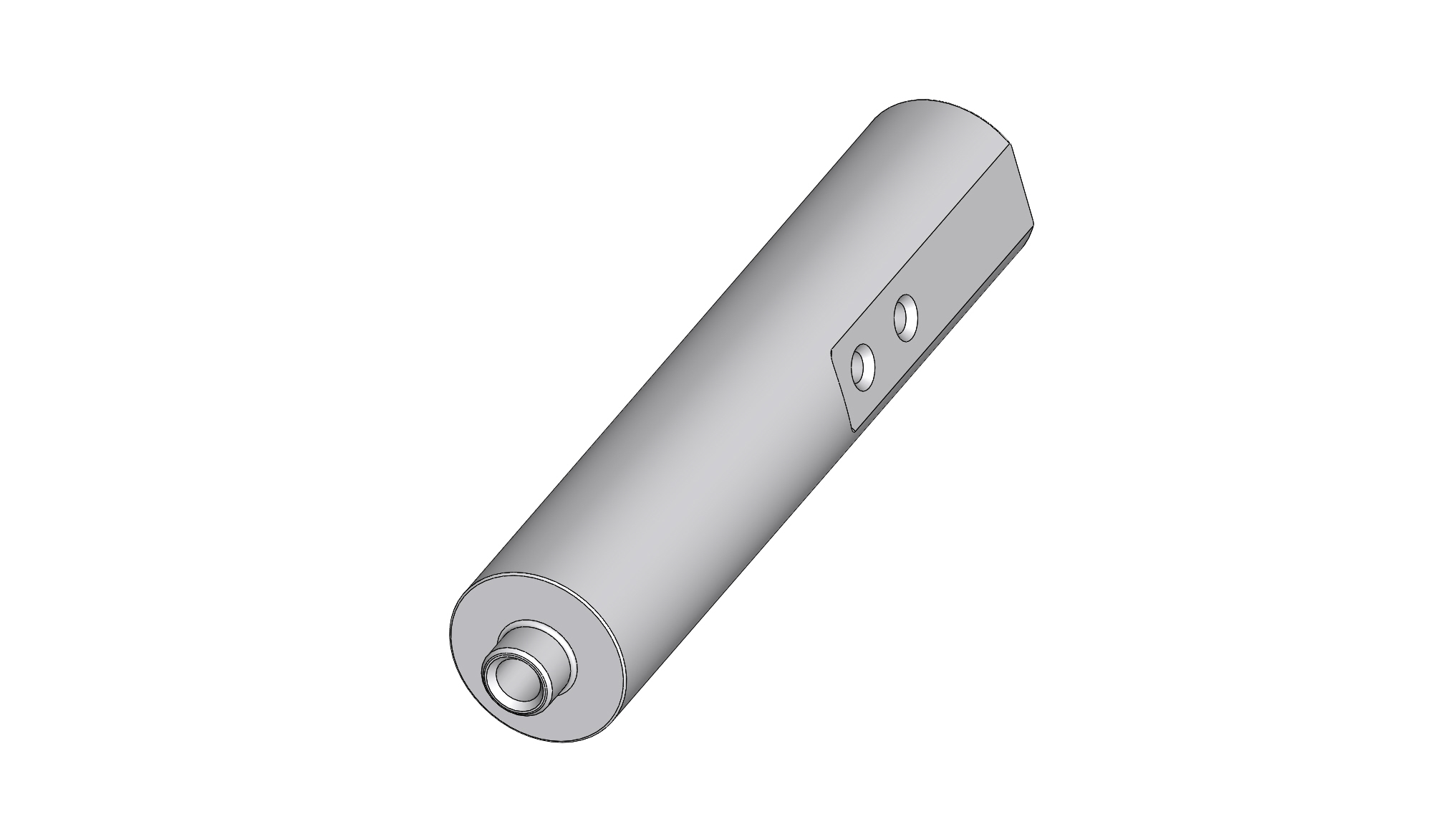

LENGTH 6.0 51.73 202035-45 These stands locate the face plate 6.00" from the front of the struts.

STANDS

These stands are made from 1 1/4” 2024 aluminum, they have 1/2” dowels machined in both side and 1/4-20 threaded holes with a flat to attach the braces. They are available is several different lengths, most applications require 4 stands. Stand lengths are measured from the ends of the 1 1/4” diameter not including the dowels.
