SKU:

DIAMETER

2.45" 3.20" 3.45"

SHAPE

FLAT CROWNED

WIDTH

3.10" 3.40" 3.91"

FLANGE HEIGHT

NONE STANDARD TALL

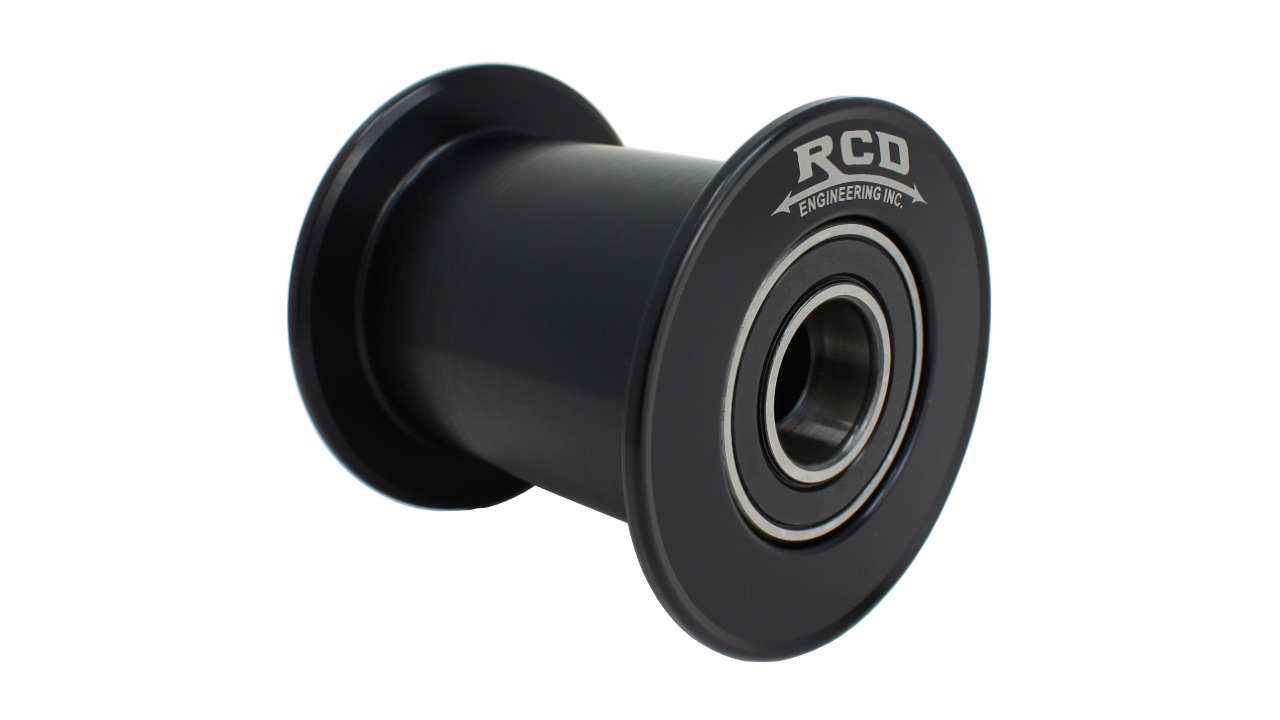

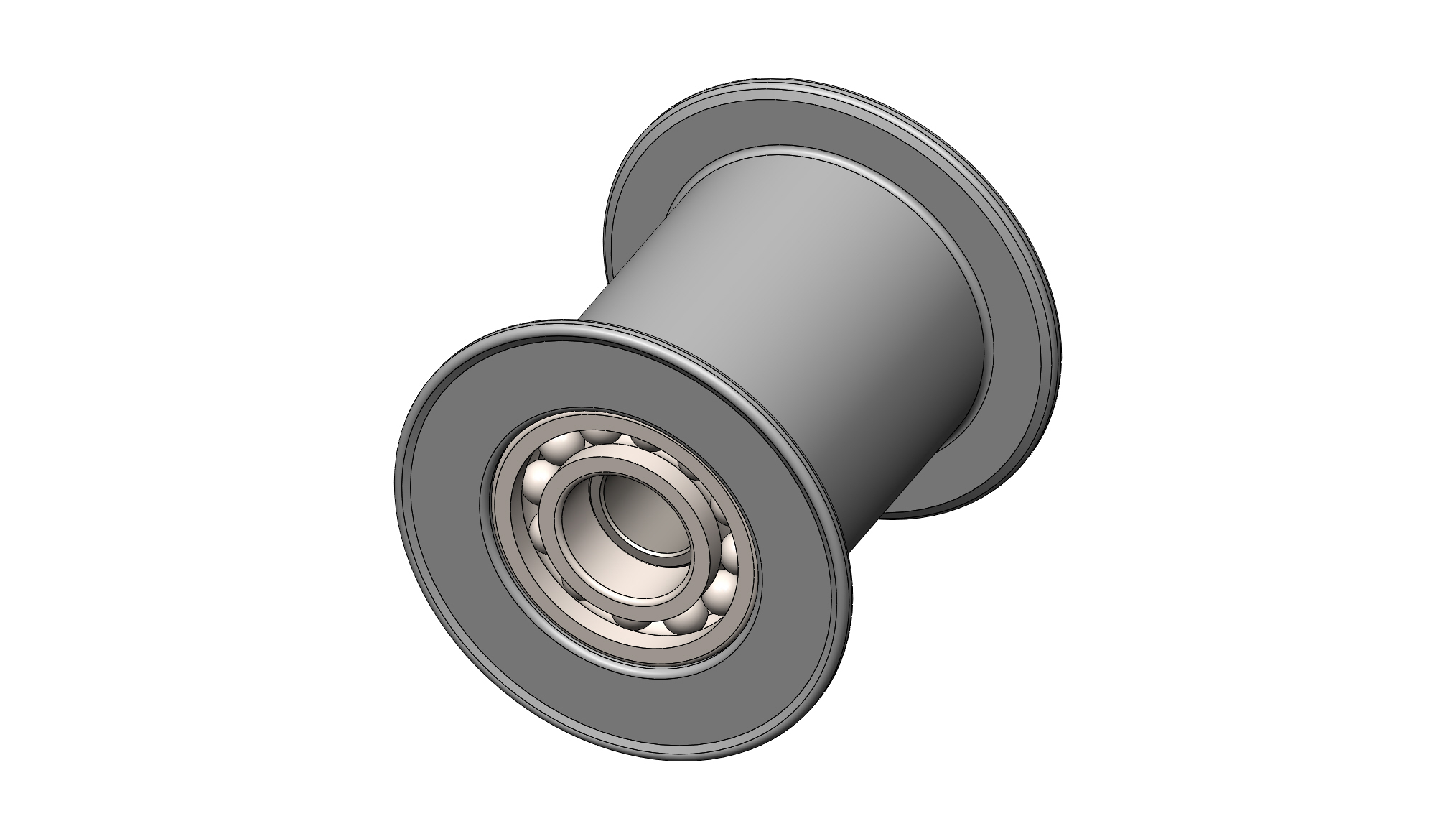

DIAMETER 2.45" SHAPE FLAT WIDTH 3.10" FLANGE HEIGHT STANDARD 192.3 156028-0016 This flat idler pulley has a diameter of 2.45" and a width of 3.1", with a standard flange height of 1/2".

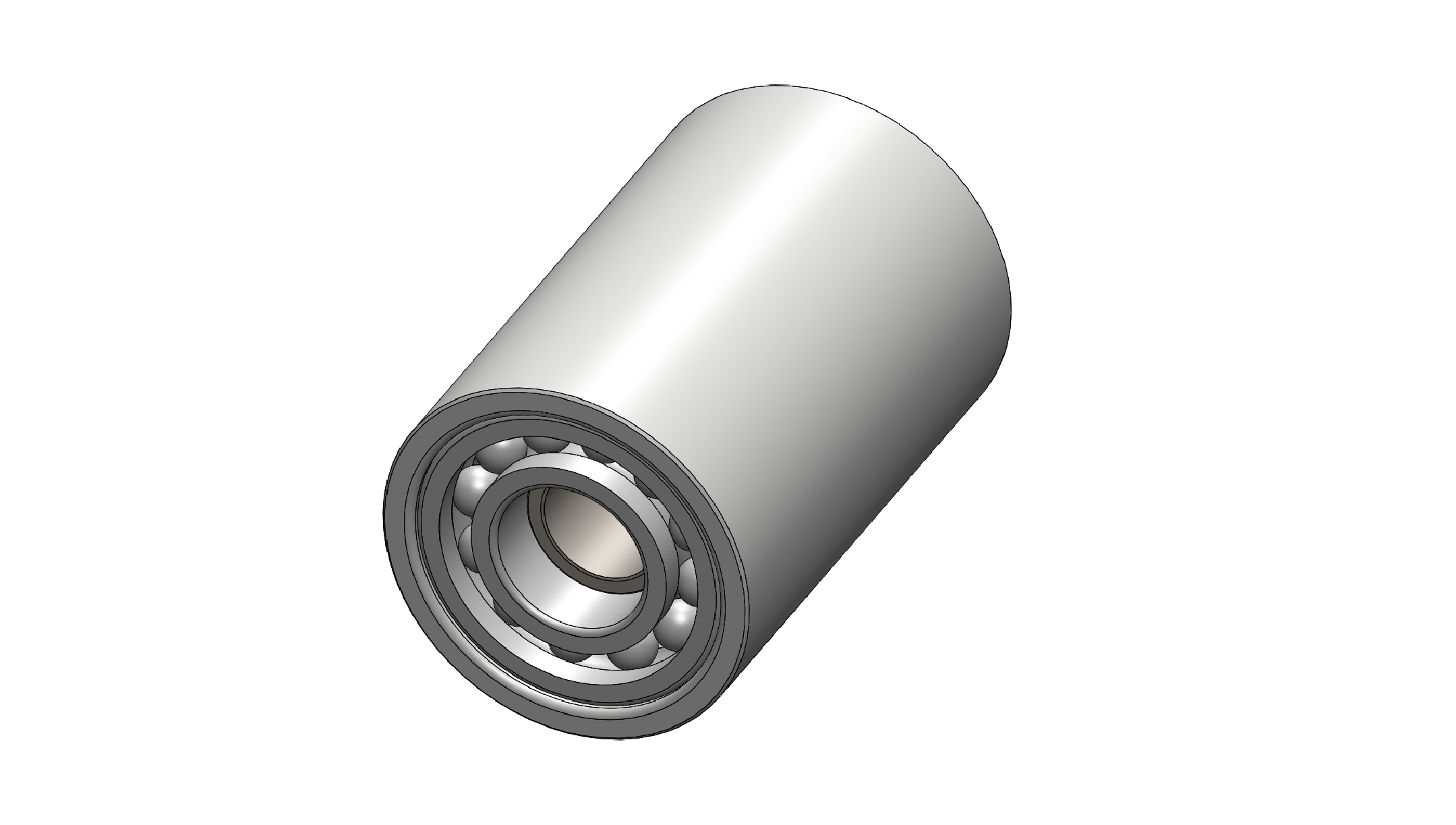

DIAMETER 2.45" SHAPE FLAT WIDTH 3.40" FLANGE HEIGHT NONE 195 156028-0018 This flat idler pulley has a diameter of 2.45" and a width of 3.4", it has no flanges.

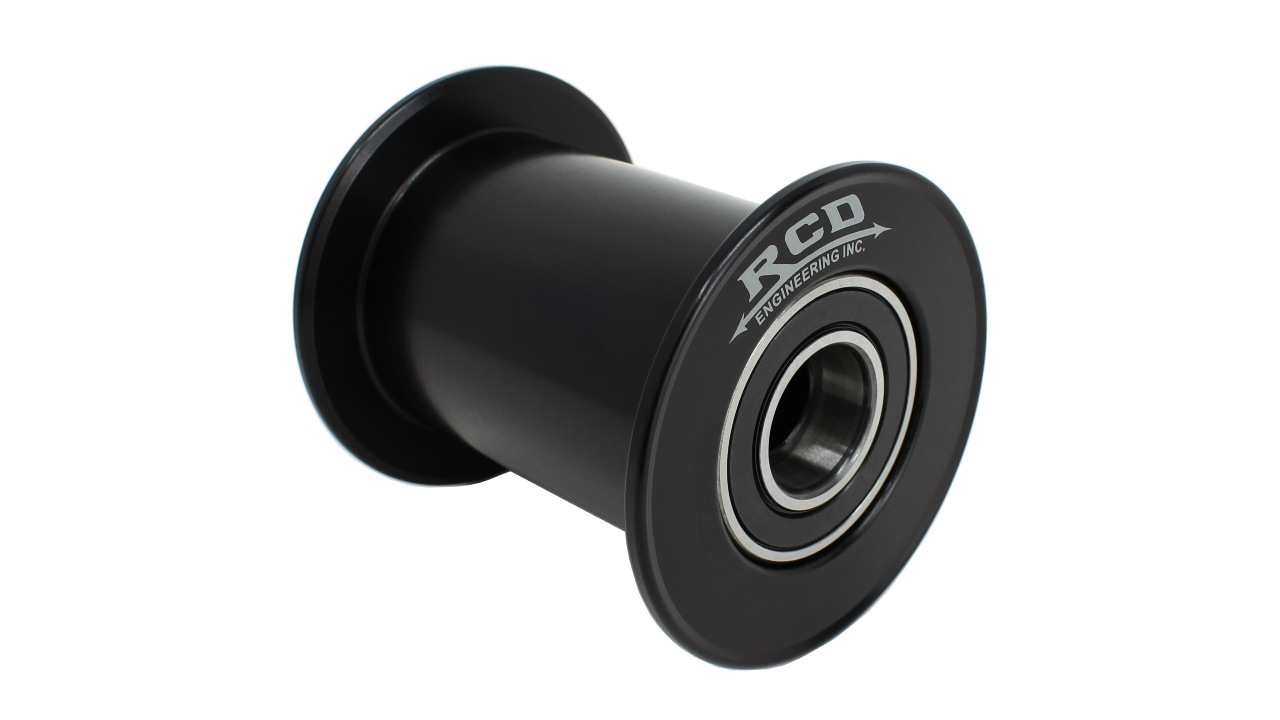

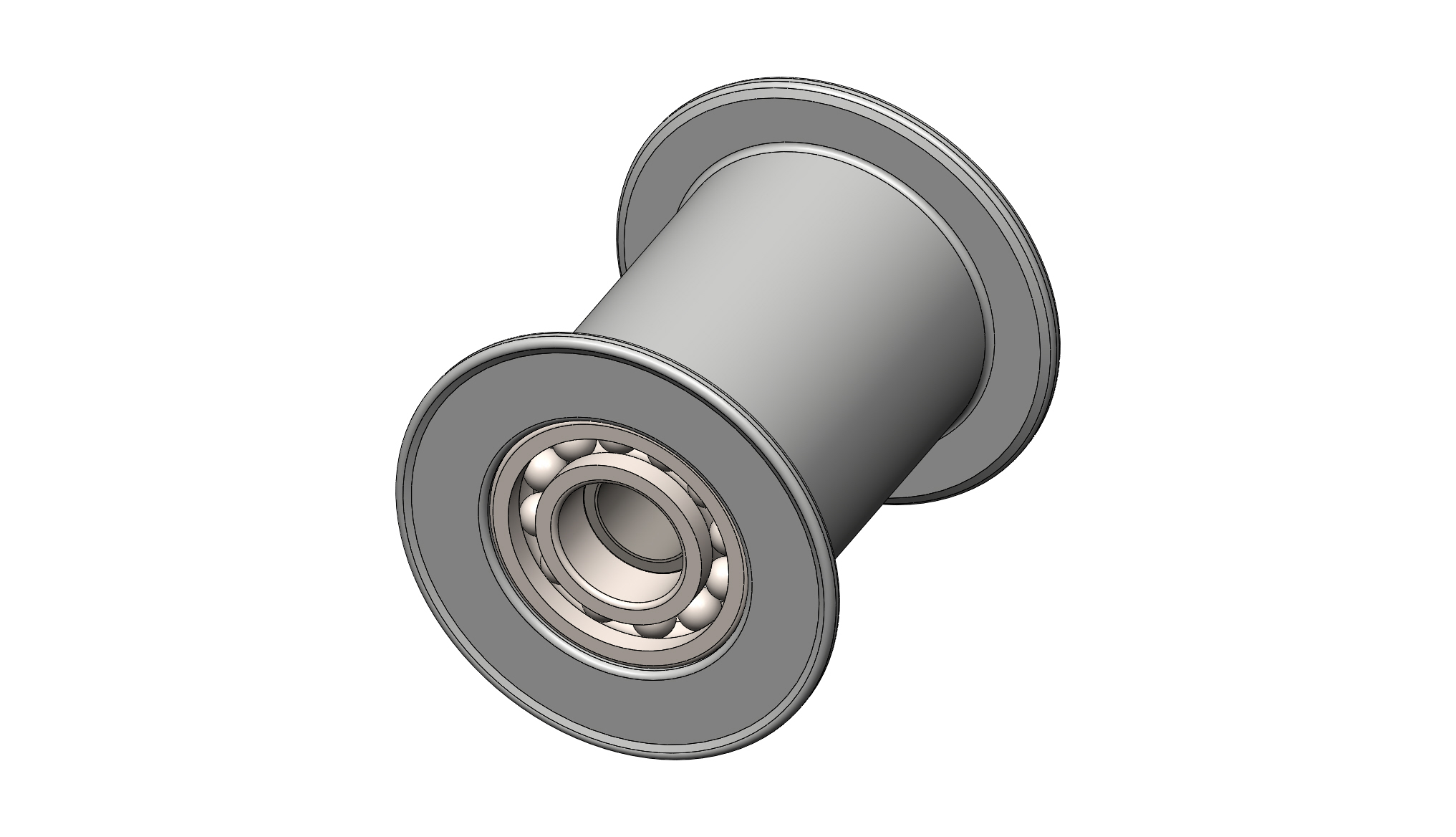

DIAMETER 2.45" SHAPE FLAT WIDTH 3.40" FLANGE HEIGHT STANDARD 197.93 156028-0019 This flat idler pulley has a diameter of 2.45" and a width of 3.4", with a standard flange height of 1/2".

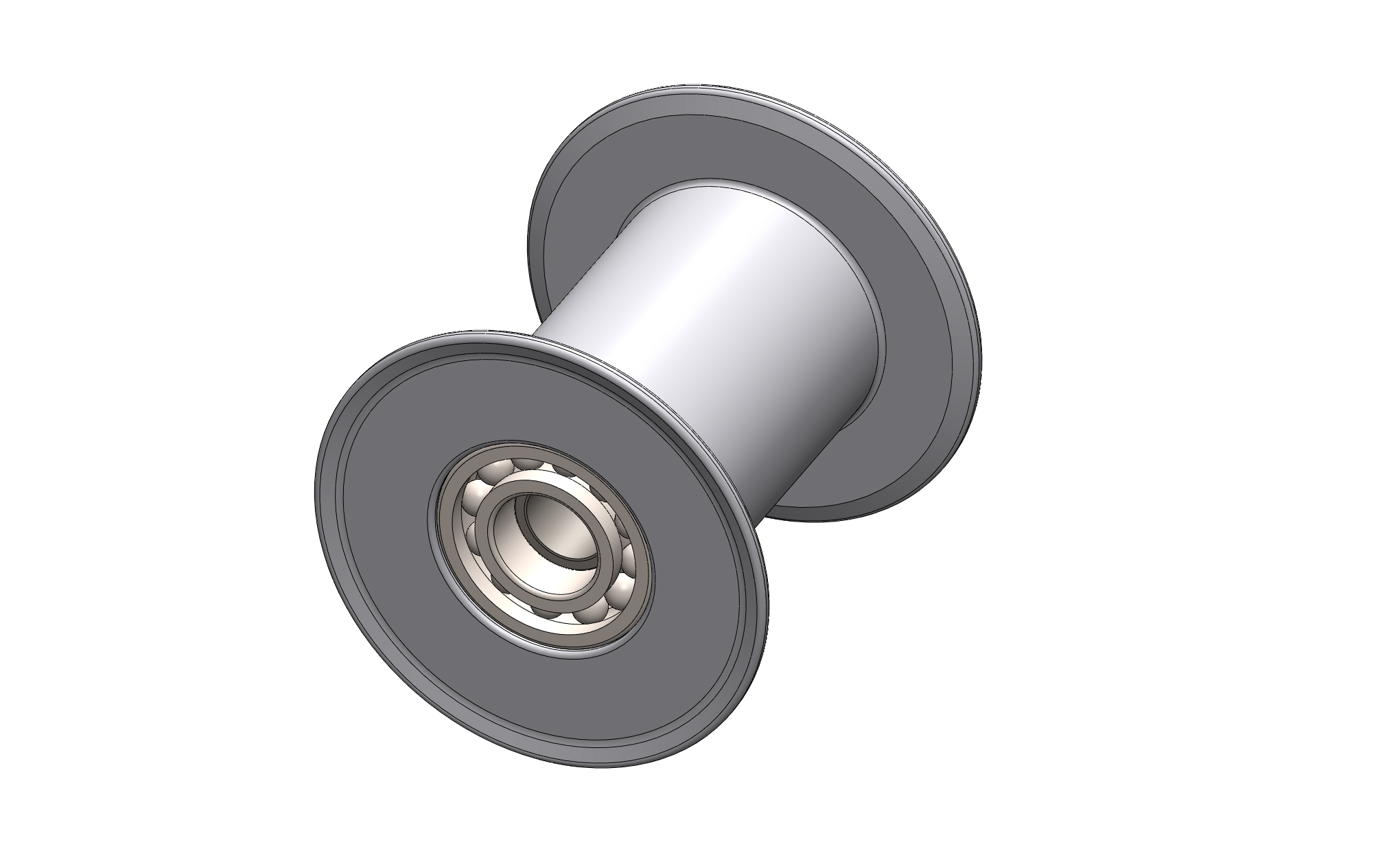

DIAMETER 2.45" SHAPE FLAT WIDTH 3.40" FLANGE HEIGHT TALL 202.86 156028-0021 This flat idler pulley has a diameter of 2.45" and a width of 3.1", with a tall flange height of .875".

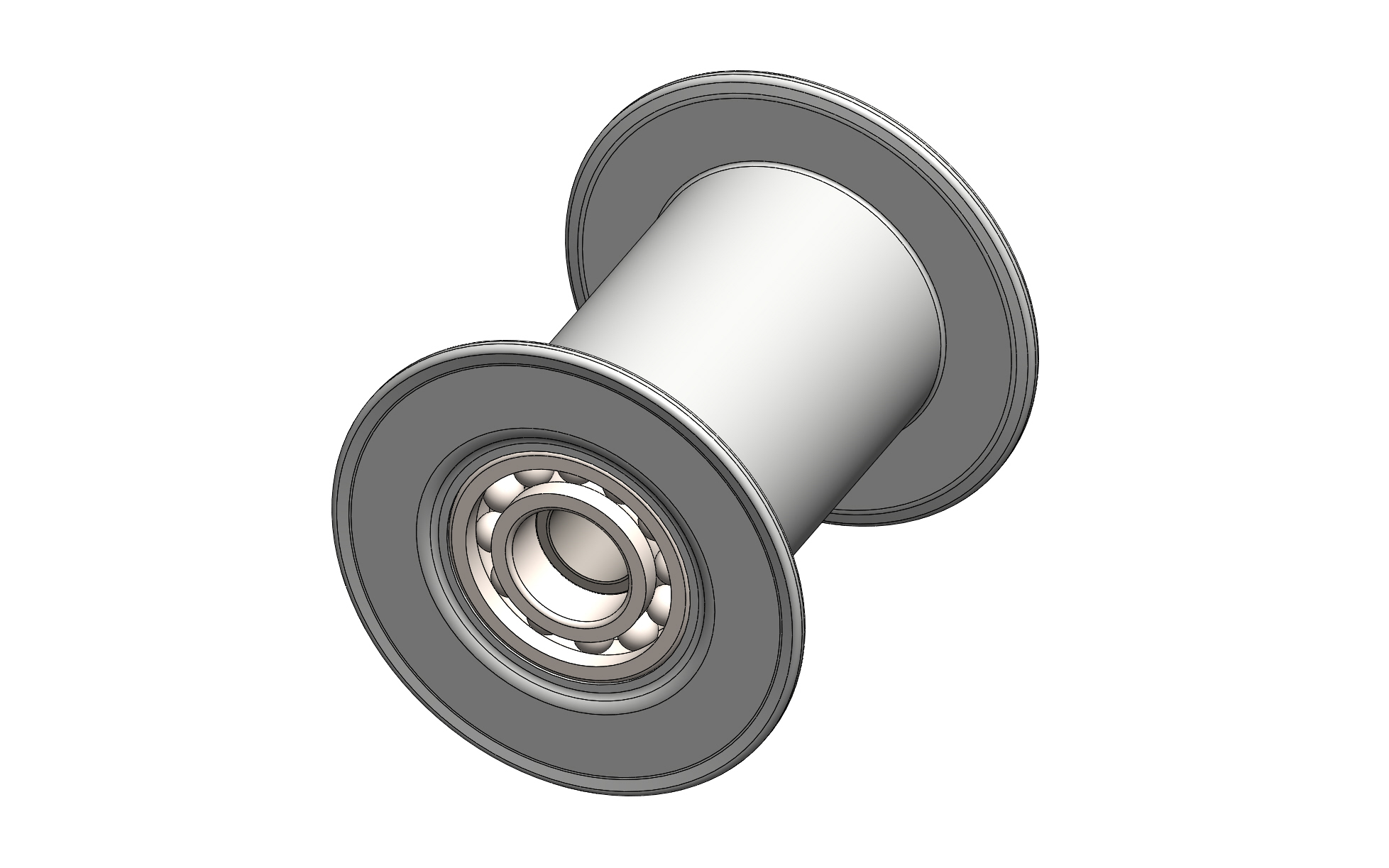

DIAMETER 2.45" SHAPE FLAT WIDTH 3.91" FLANGE HEIGHT TALL 298.2 156028-0053 This flat idler pulley has a diameter of 2.45" and a width of 3.91", with a tall flange height of .875".

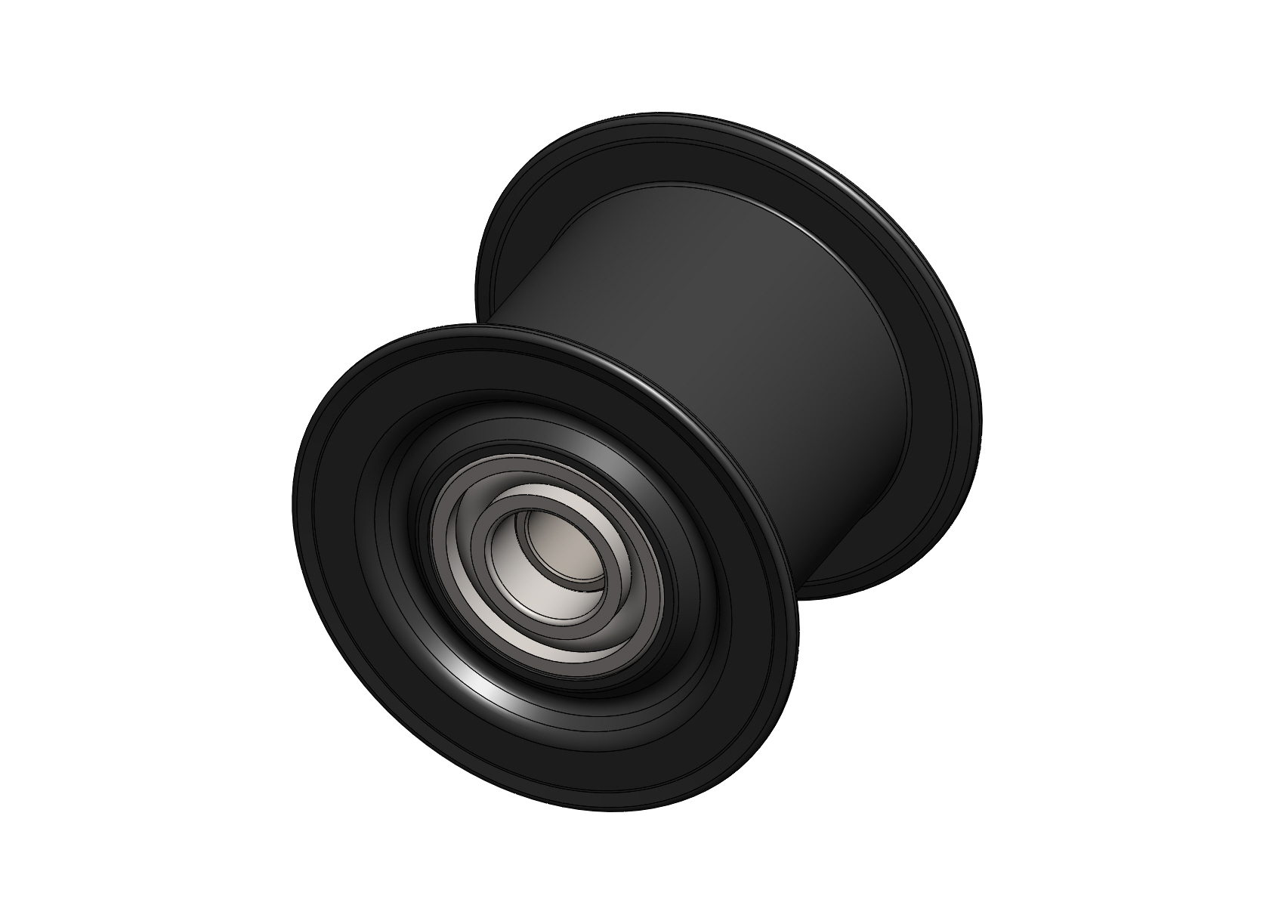

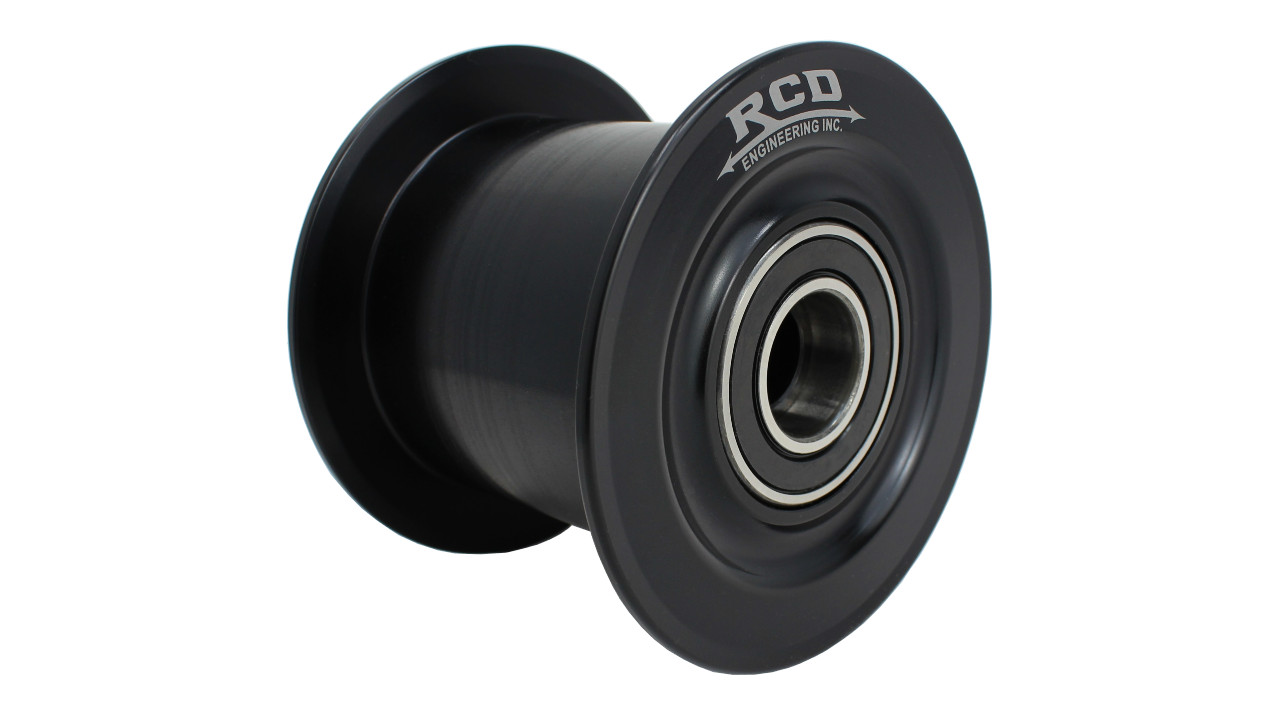

DIAMETER 3.20" SHAPE FLAT WIDTH 3.10" FLANGE HEIGHT STANDARD 229.4 156028-0026 This flat idler pulley has a diameter of 3.2" and a width of 3.1", with a standard flange height of 1/2".

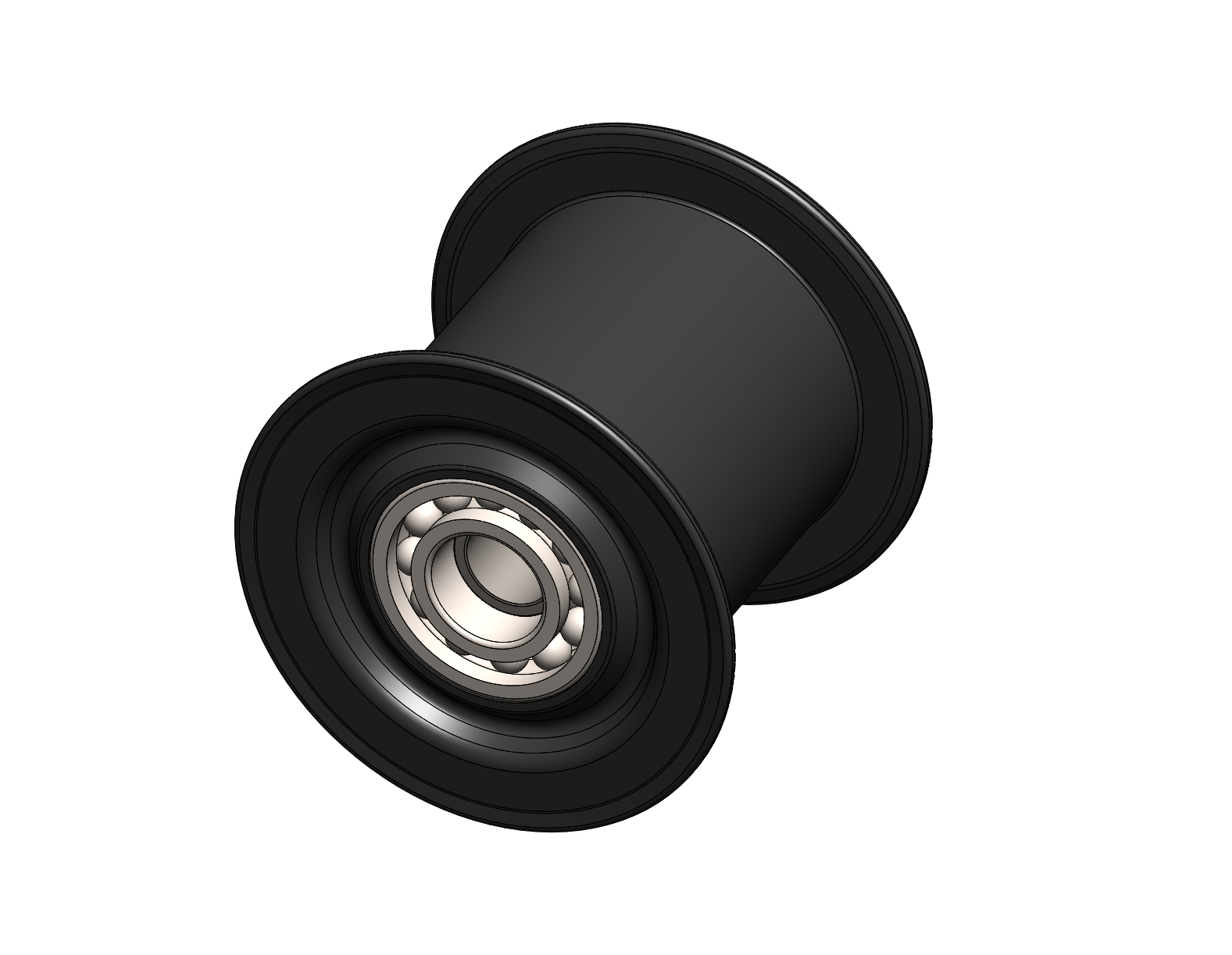

DIAMETER 3.20" SHAPE FLAT WIDTH 3.40" FLANGE HEIGHT STANDARD 233.91 156028-0029 This flat idler pulley has a diameter of 3.2" and a width of 3.4", with a standard flange height of 1/2".

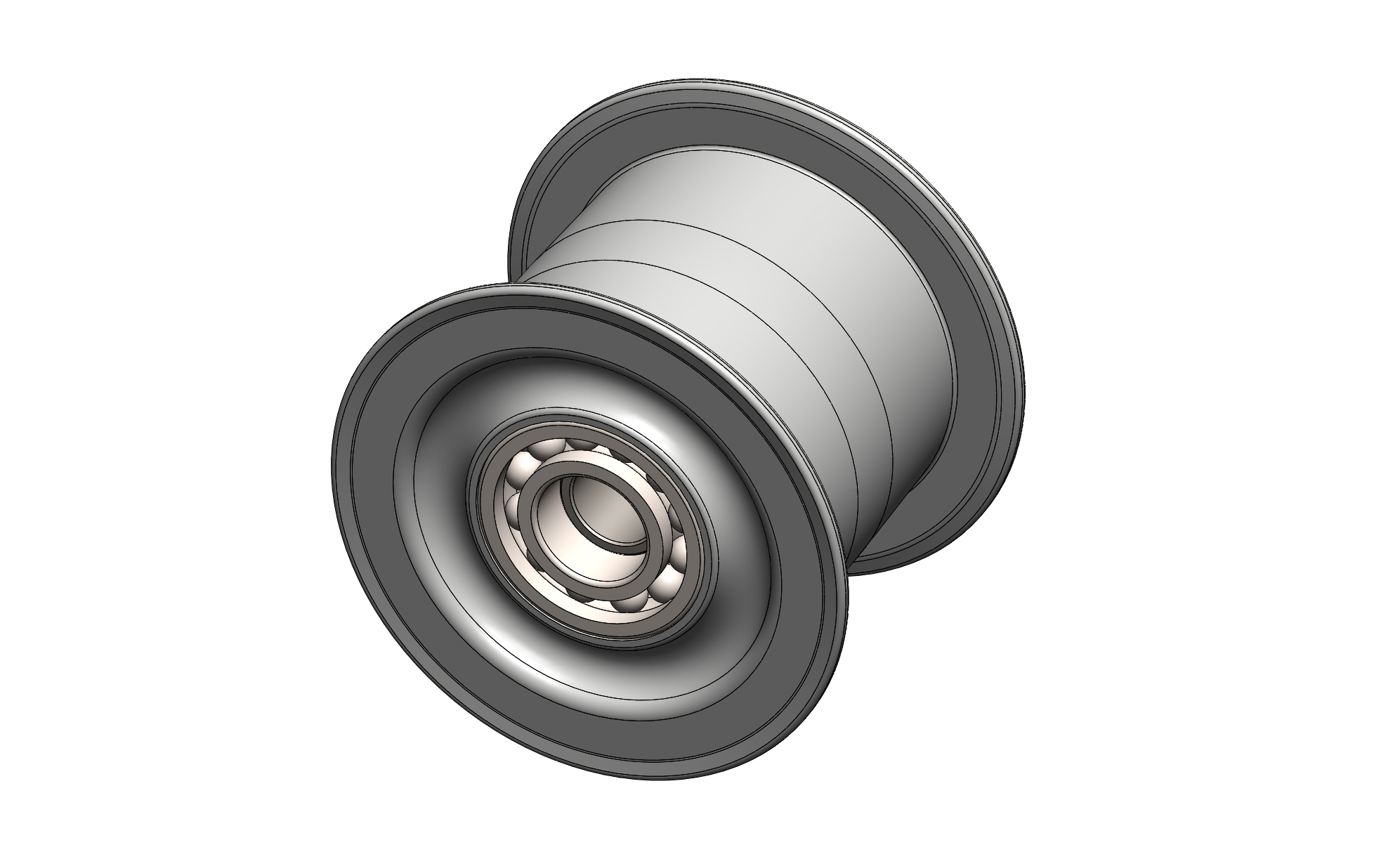

DIAMETER 3.45" SHAPE CROWNED WIDTH 3.10" FLANGE HEIGHT STANDARD 240.65 156028-0036 This crowned idler pulley has a diameter of 3.45" and a width of 3.1", with a standard flange height of 1/2".

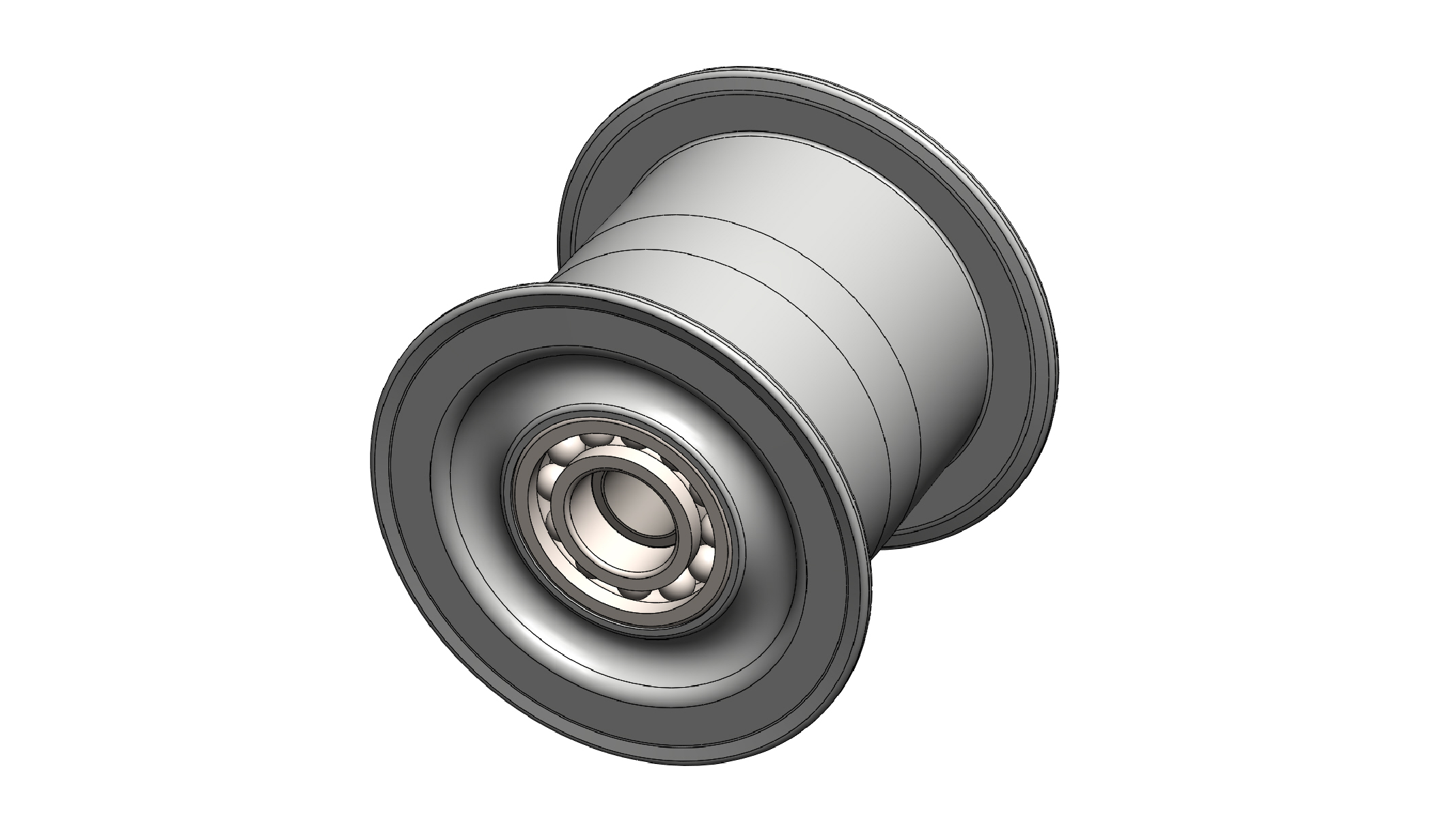

DIAMETER 3.45" SHAPE CROWNED WIDTH 3.40" FLANGE HEIGHT STANDARD 246.28 156028-0039 This crowned idler pulley has a diameter of 3.45" and a width of 3.4", with a standard flange height of 1/2".

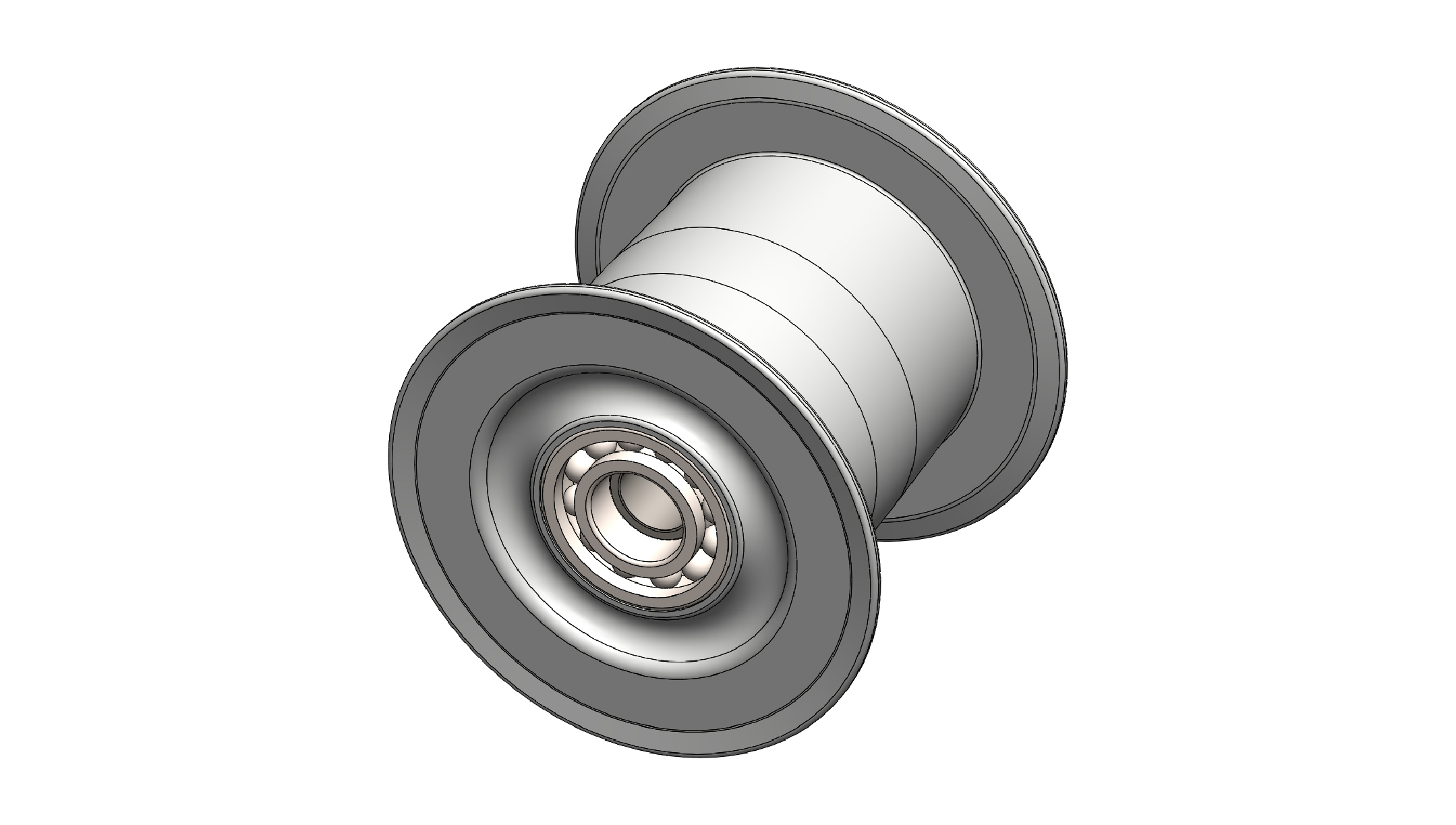

DIAMETER 3.45" SHAPE CROWNED WIDTH 3.91" FLANGE HEIGHT TALL 298.2 156028-0052 This crowned idler pulley has a diameter of 3.45" and a width of 3.91", with a tall flange height of .875".

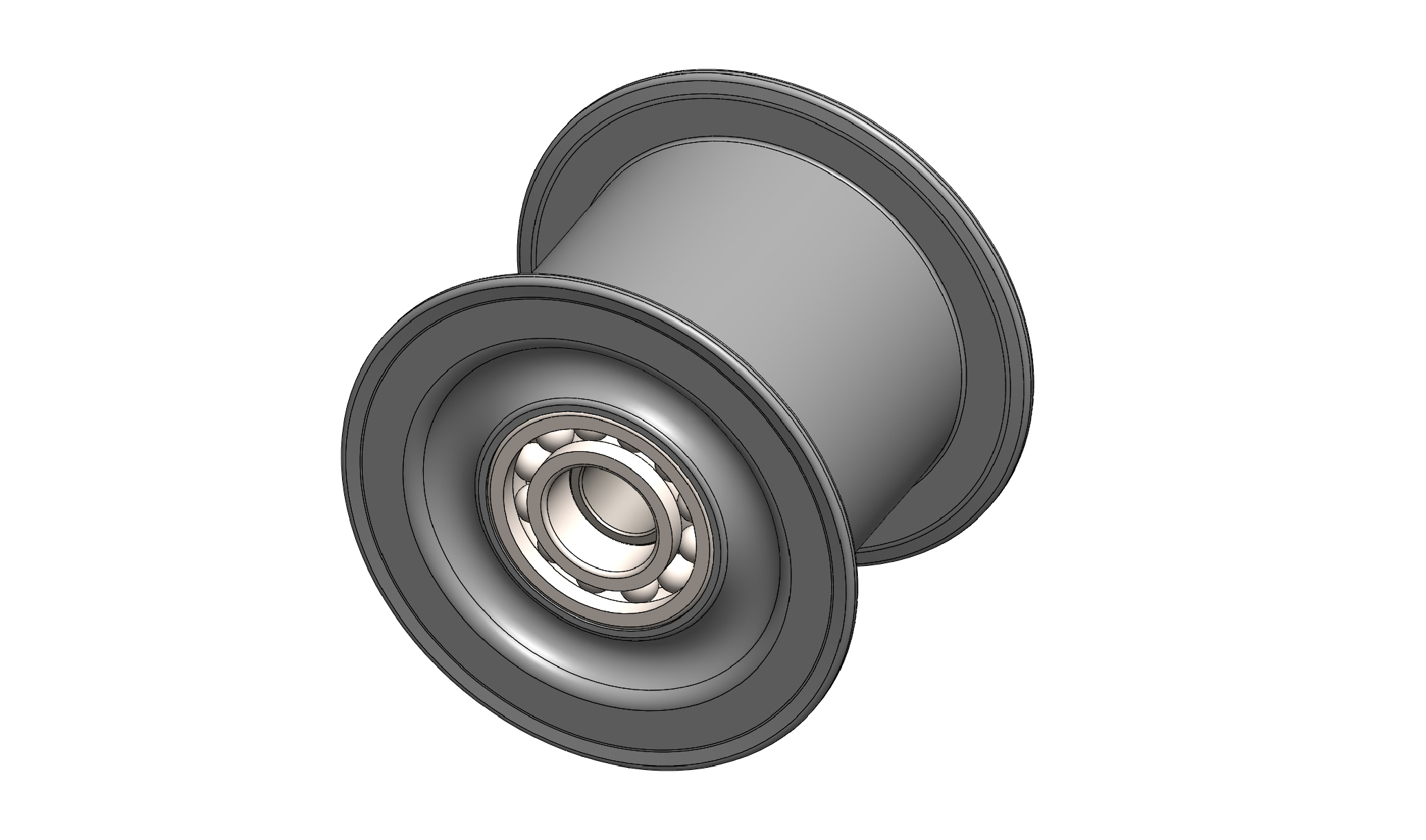

DIAMETER 3.45" SHAPE FLAT WIDTH 3.10" FLANGE HEIGHT STANDARD 240.65 156028-0046 This flat idler pulley has a diameter of 3.45" and a width of 3.1", with a standard flange height of 1/2".

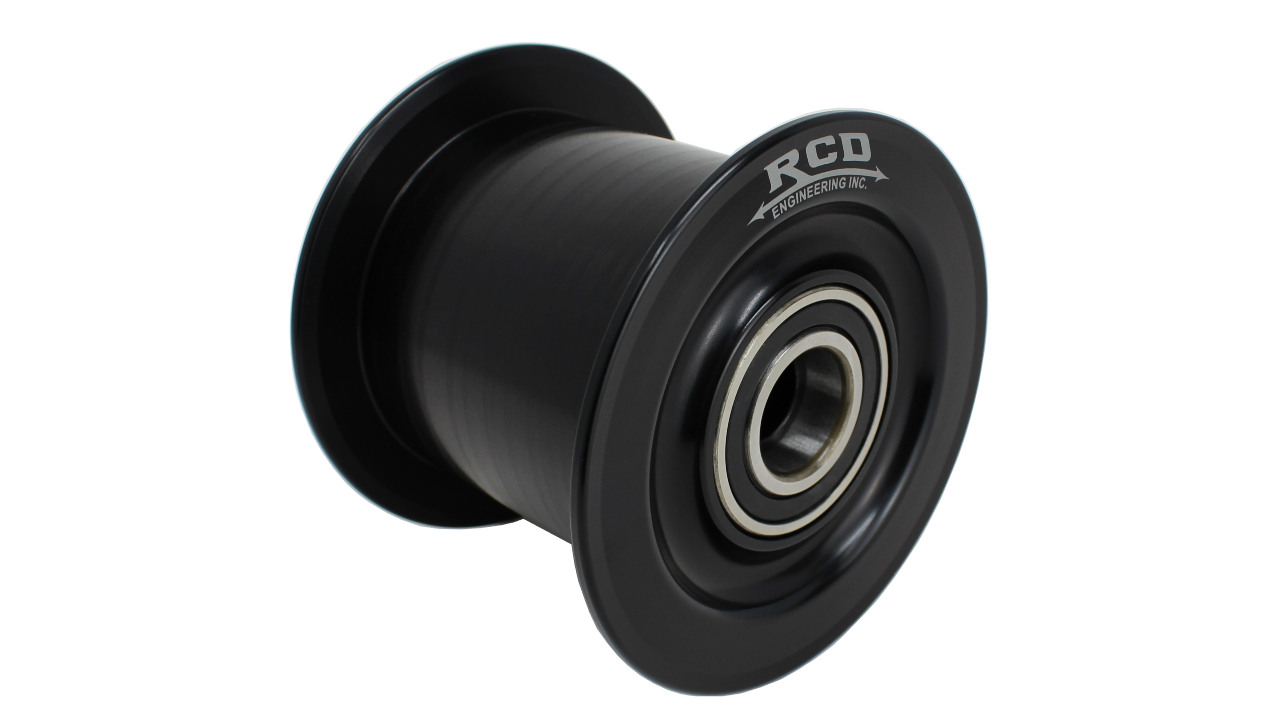

DIAMETER 3.45" SHAPE FLAT WIDTH 3.40" FLANGE HEIGHT STANDARD 246.28 156028-0049 This flat idler pulley has a diameter of 3.45" and a width of 3.4", with a standard flange height of 1/2".

DIAMETER 3.45" SHAPE FLAT WIDTH 3.91" FLANGE HEIGHT TALL 298.2 156028-0051 This flat idler pulley has a diameter of 3.45" and a width of 3.91", with a tall flange height of .875".

ONE PIECE IDLER PULLEYS

BACK

RCD idler pulleys are machined from a single piece of billet aluminum with a large inner cavity for weight reduction. These pulleys have high speed bearings pressed in over a steel inner spool. Diameter measurements do not include flanges, width measurements are inside flanges.

156028-0016 IDLER PULLEY 1 PIECE 3.1 WIDE 2.45 DIA BOM.PDF		Download
156028-0018 IDLER PULLEY 1 PIECE 3.4 WIDE 2.45 DIA NO FLANGES ASSY BOM.PDF		Download
156028-0019 IDLER PULLEY 1 PIECE 3.4 WIDE 2.45 DIA ASSY BOM.PDF		Download
156028-0021 AJPE IDLER PULLEY 3.91 WIDE 2.50 DIA AL.PDF		Download
156028-0026 IDLER PULLEY 1 PIECE FLAT 3.1 WIDE 3.20 DIA ASSY BOM.PDF		Download
156028-0029 IDLER PULLEY 1 PIECE FLAT 3.4 WIDE 3.20 DIA BOM.PDF		Download
156028-0036 IDLER PULLEY 1 PIECE CROWNED 3.1 WIDE 3.45 DIA BOM.PDF		Download
156028-0039 IDLER PULLEY 1 PIECE CROWNED 3.4 WIDE 3.45 DIA ASSY BOM.PDF		Download
156028-0046 IDLER PULLEY 1 PIECE 3.1 WIDE 3.45 DIA BOM.PDF		Download
156028-0049 IDLER PULLEY 1 PIECE FLAT 3.4 WIDE 3.45 DIA ASSY BOM.PDF		Download
156028-0051 IDLER PULLEY FLAT 3.91 WIDE 3.45 DIA W-TALL FLANGES ASSY BOM.PDF		Download
156028-0052 IDLER PULLEY CROWNED 3.91 WIDE 3.45 DIA W-TALL FLANGES BOM.PDF		Download
156028-0053 IDLER PULLEY FLAT 3.19 WIDE 2.45 DIA W-TALL FLANGES BOM.PDF		Download
