Products / MAGNETO SUPPORTS KITS

SKU:

SINGLE/DUAL

DUAL SINGLE

LENGTH

N/A 4.37 LONG 5.37 LONG 7.00 LONG

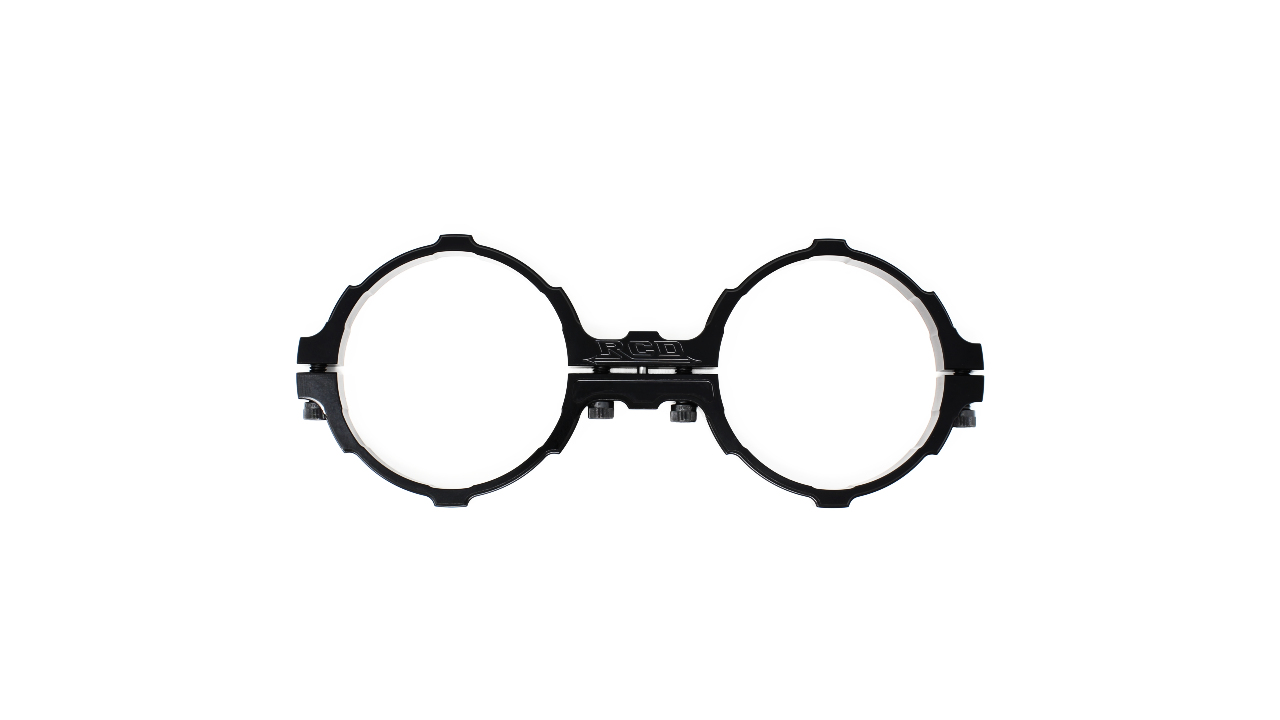

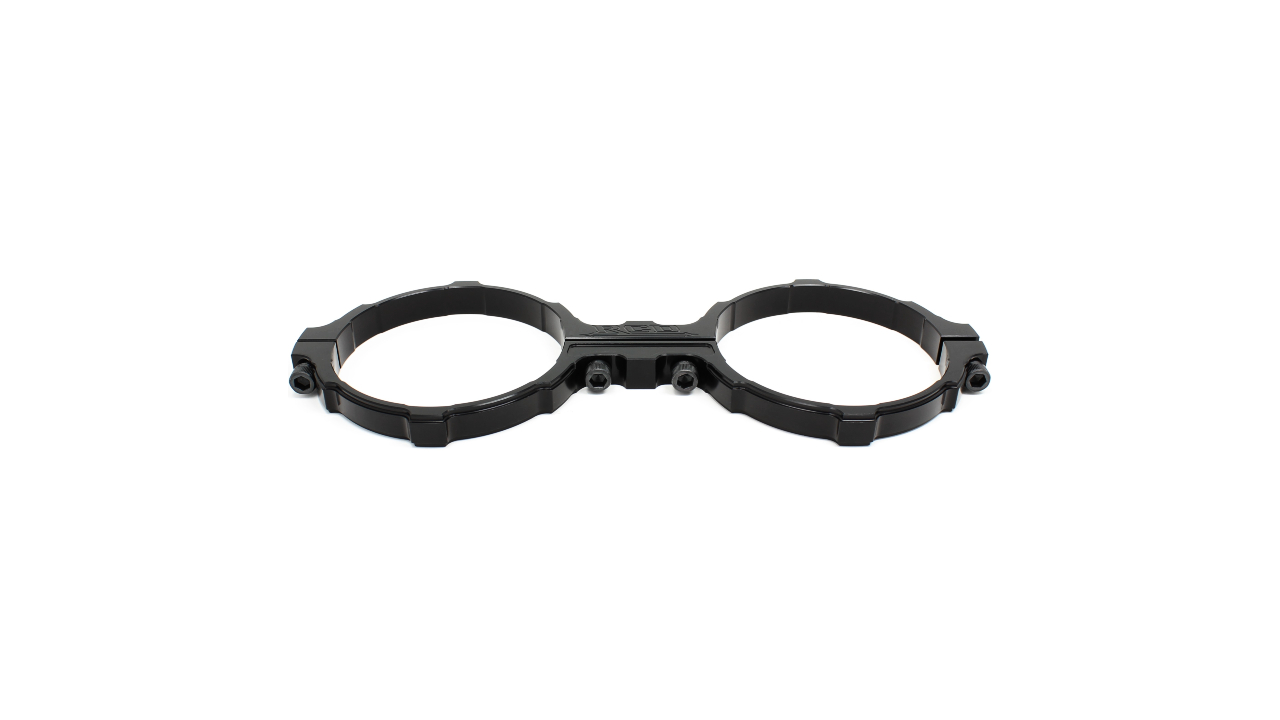

SINGLE/DUAL DUAL LENGTH N/A 196.8 301821-0004 This dual magneto clamp 'hand-cuffs" the magnetos together.

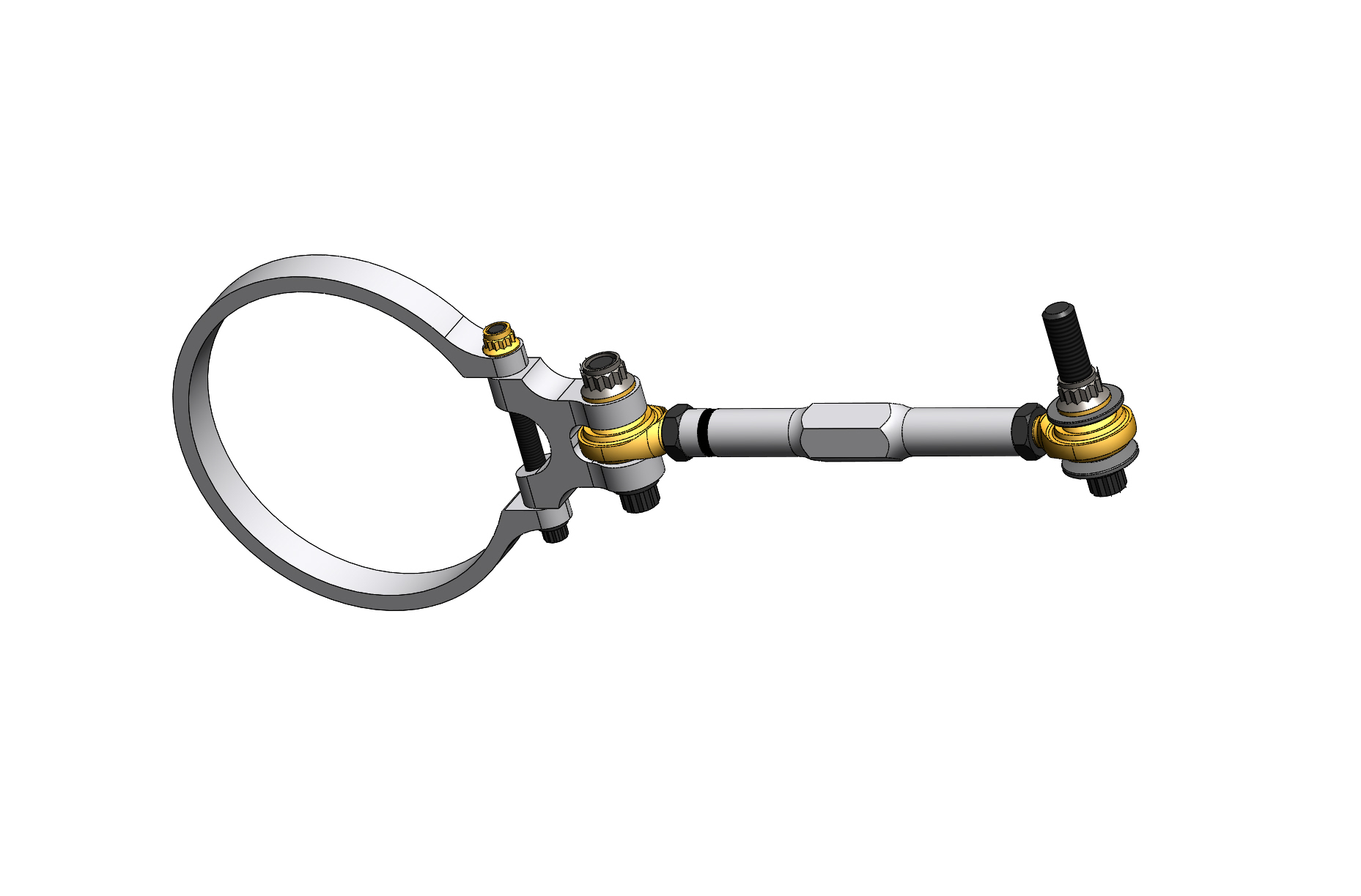

SINGLE/DUAL SINGLE LENGTH 4.37 LONG 231.66 301821-0037 This single magneto support kit has a 4.37" long adjustable stand.

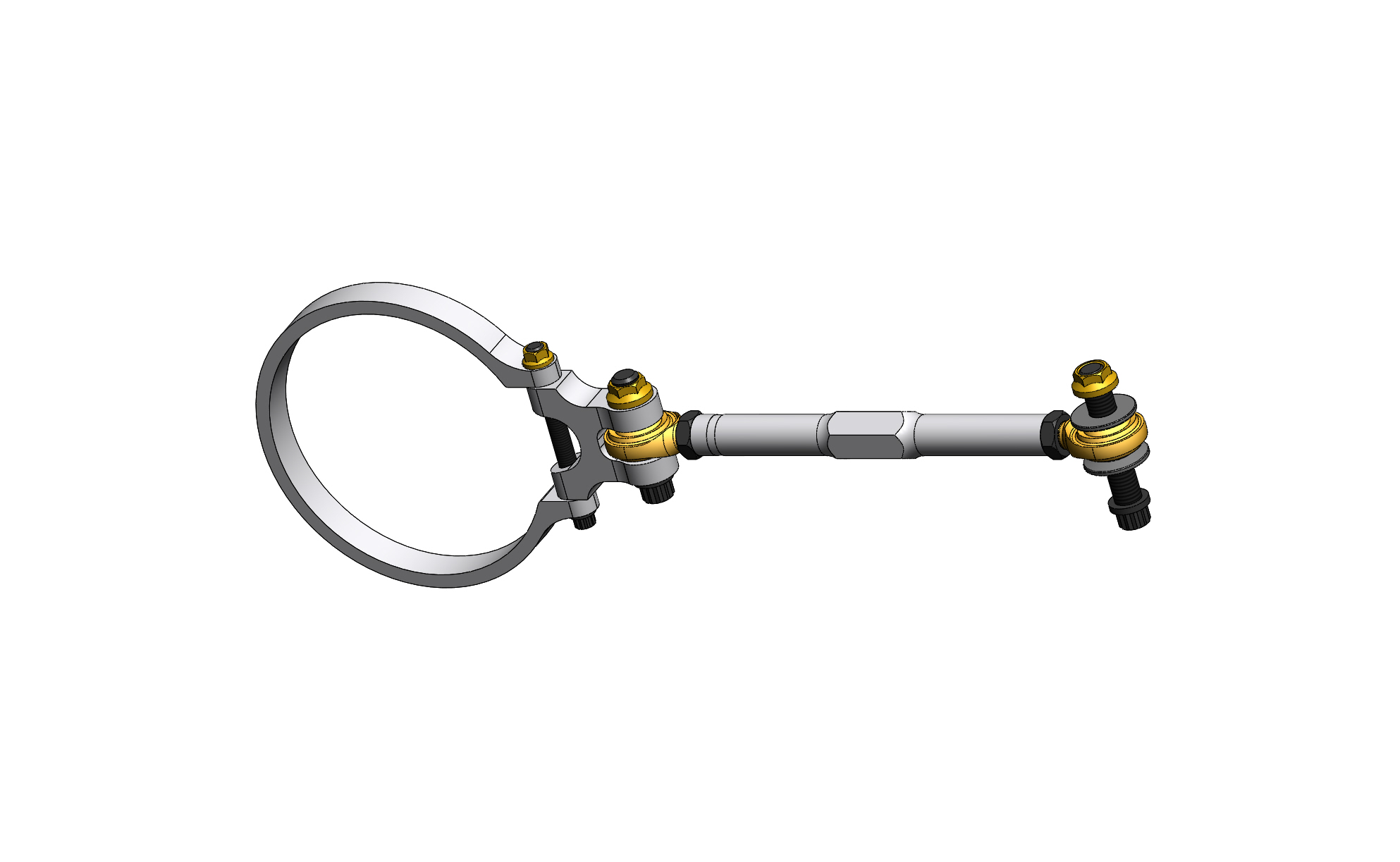

SINGLE/DUAL SINGLE LENGTH 5.37 LONG 237.91 301821-0035 This single magneto support kit has a 5.37" long adjustable stand.

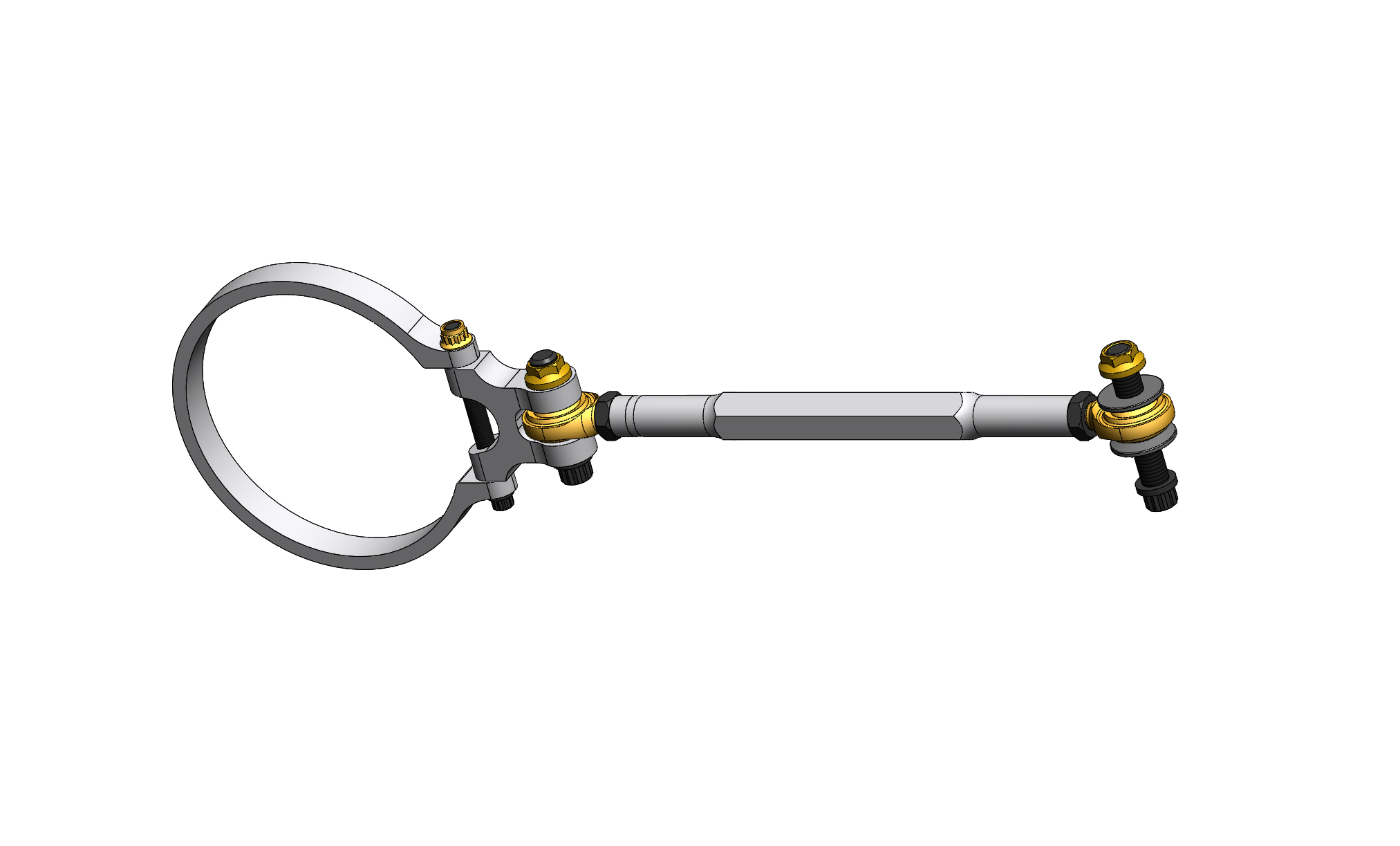

SINGLE/DUAL SINGLE LENGTH 7.00 LONG 254.38 301821-0038 This single magneto support kit has a 7.0" long adjustable stand.

MAGNETO SUPPORTS KITS

These support kits include a 'C" shaped clamp piece which clamps around the body of the magneto and an adjustable support stand with rod ends on both sides. Dual magneto clamps have two 'C" clamps and a brace block which connects the clamps.
0
301821-0004 DUAL MAGNETO SUPPORT BOM.PDF   Download
301821-0035 SINGLE MAGNETO SUPPORT 5.375 LONG BOM.PDF   Download
301821-0037 SINGLE MAGNETO SUPPORT BOM.PDF   Download
301821-0038 SINGLE MAGNETO SUPPORT 7.00 LONG BOM.PDF   Download

Specifications
