SKU:

CAM LOCATION

STANDARD TALL

CRANK SUPPORT

FRONT N/A

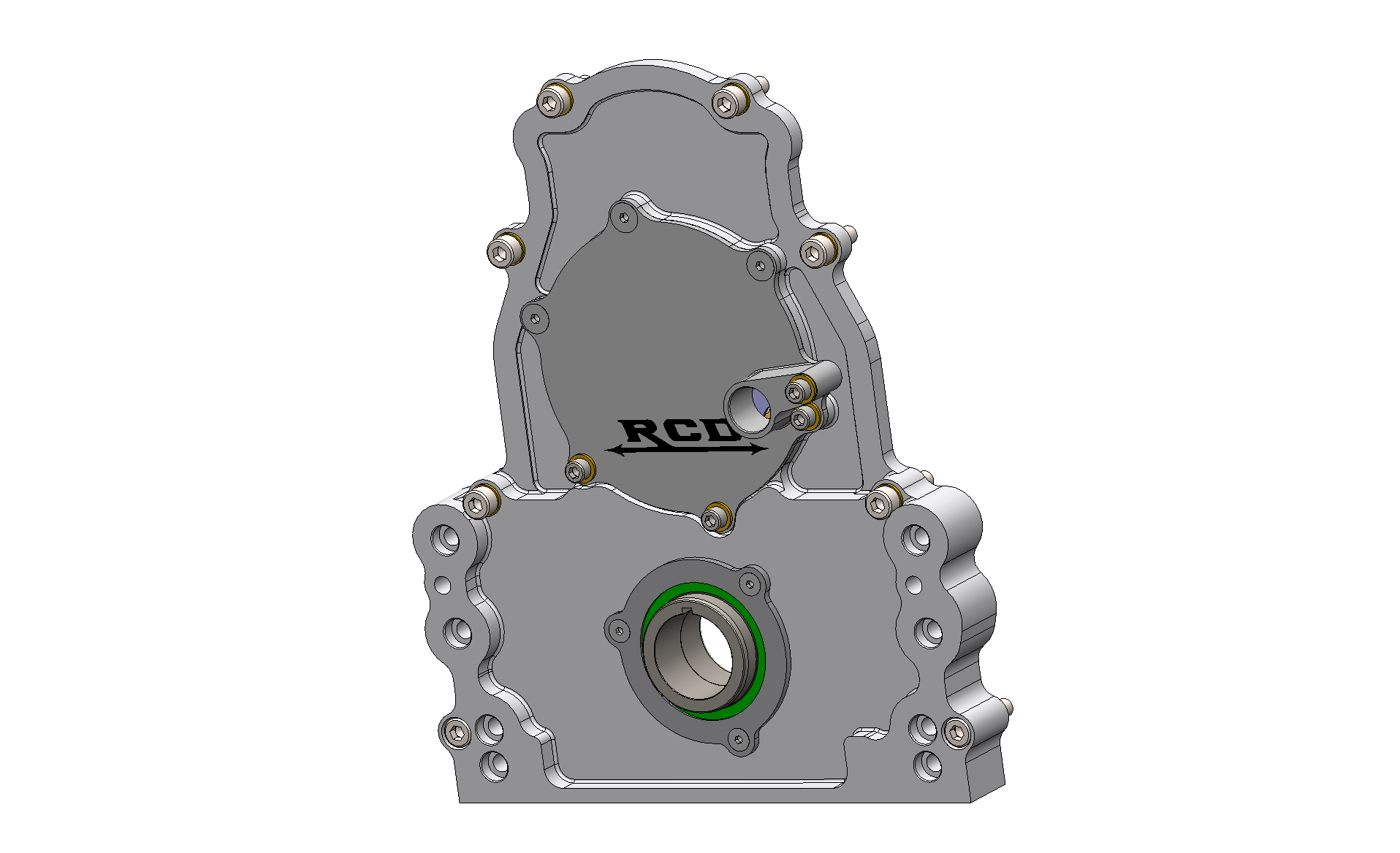

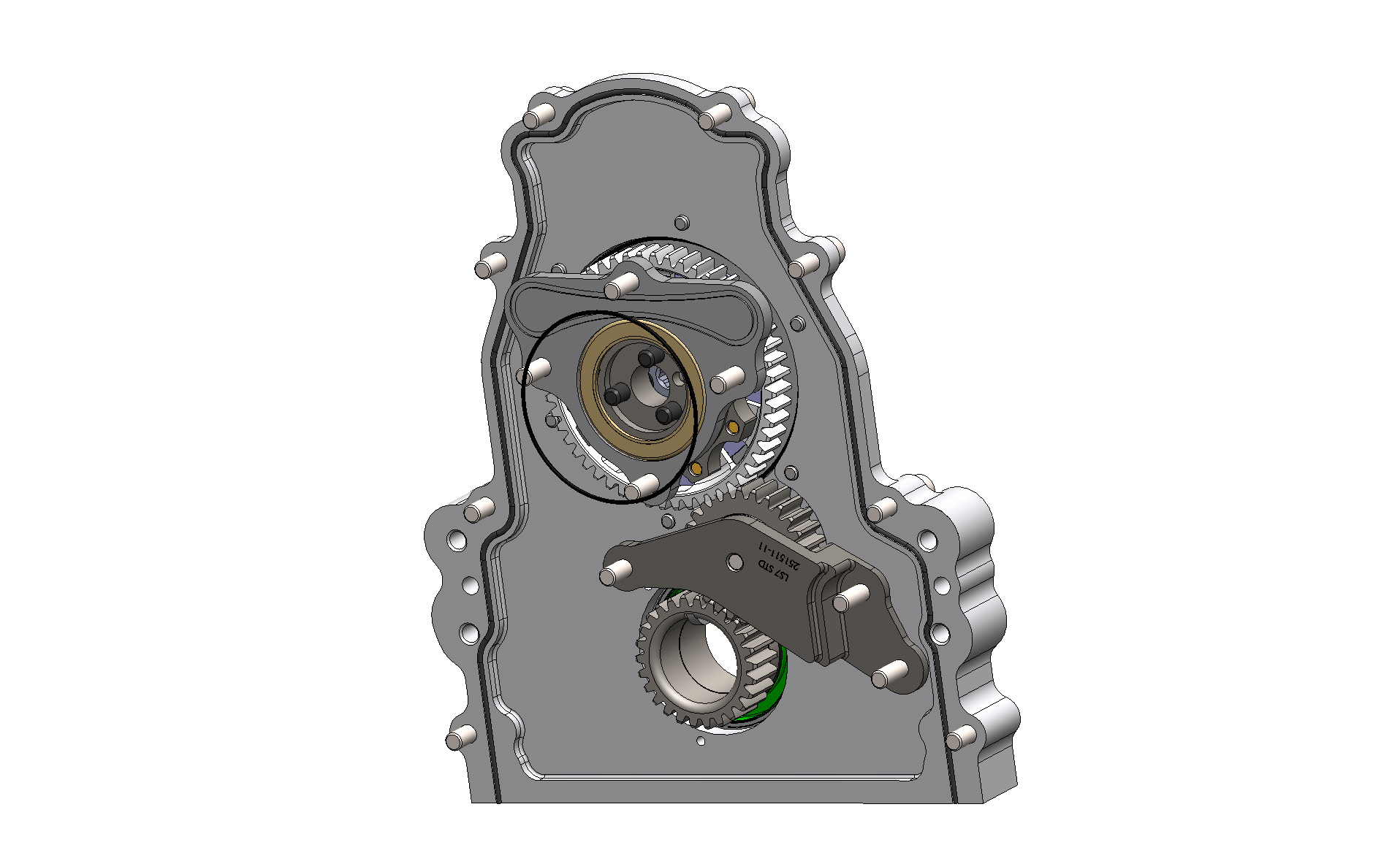

CAM LOCATION STANDARD CRANK SUPPORT FRONT 2100 253500-0052 This standard cam LS gear drive has provisions to mount a RCD front crank support.

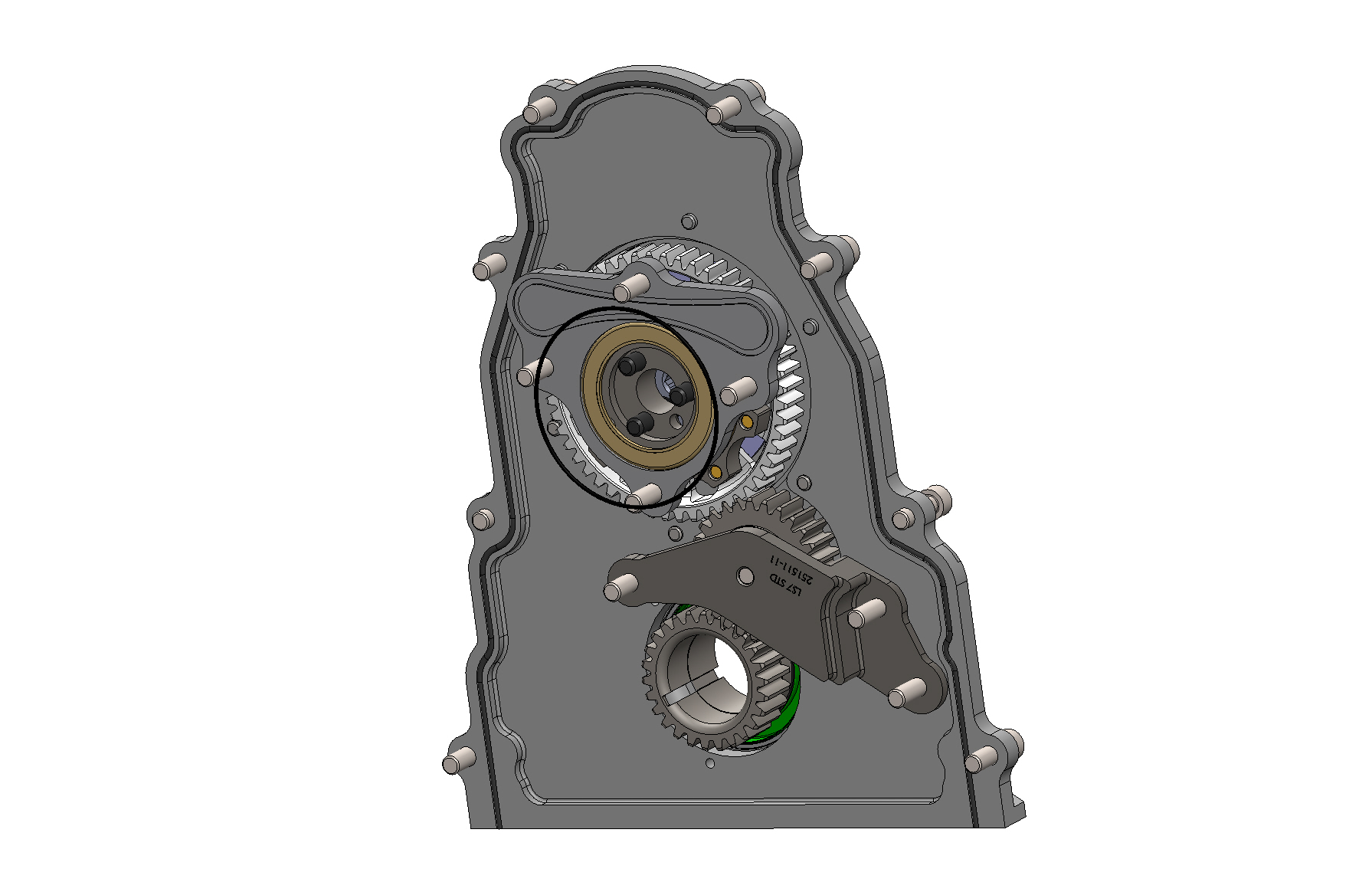

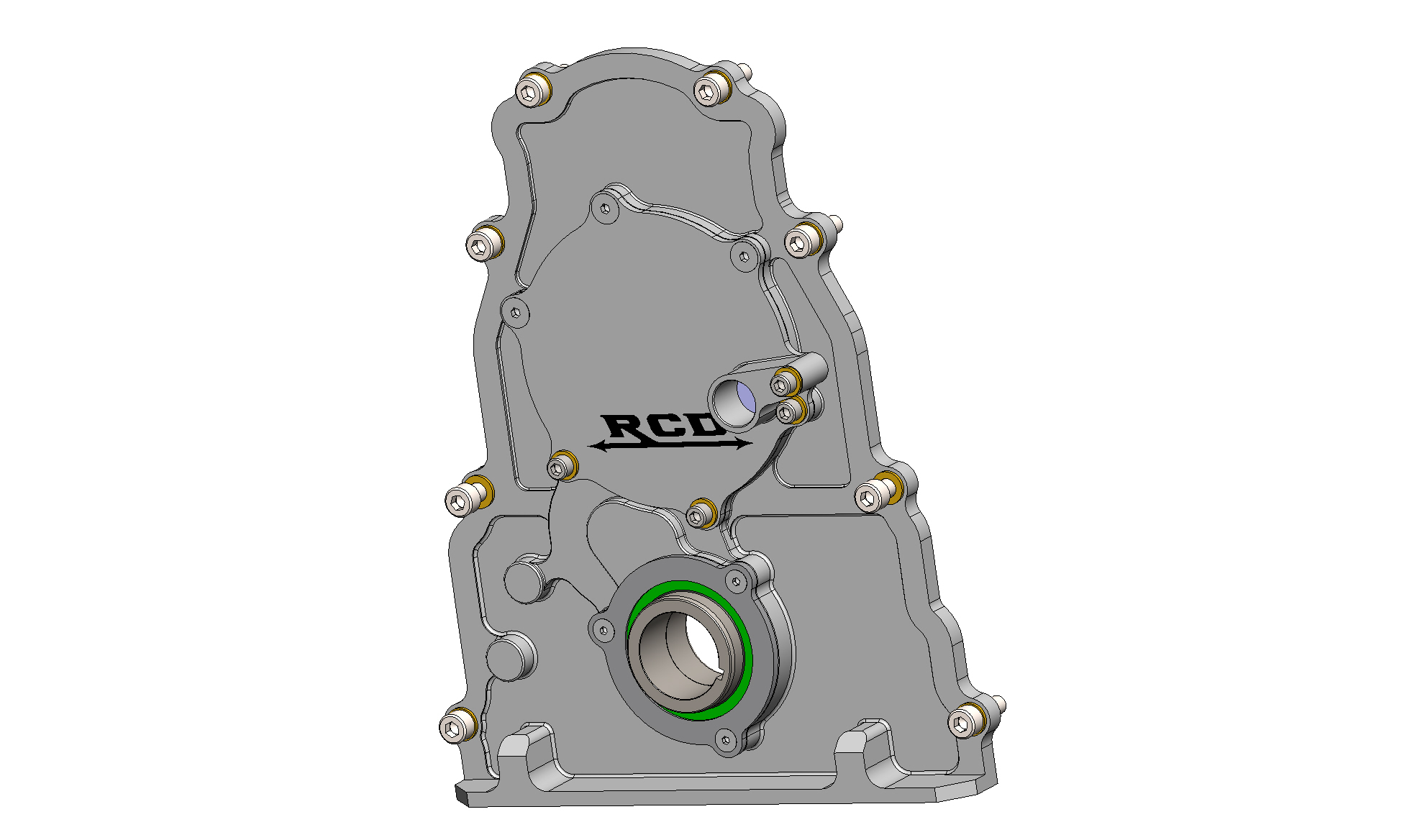

CAM LOCATION STANDARD CRANK SUPPORT N/A 1500 253500-0053 This standard cam LS gear drive does not have provisions for a crank support.

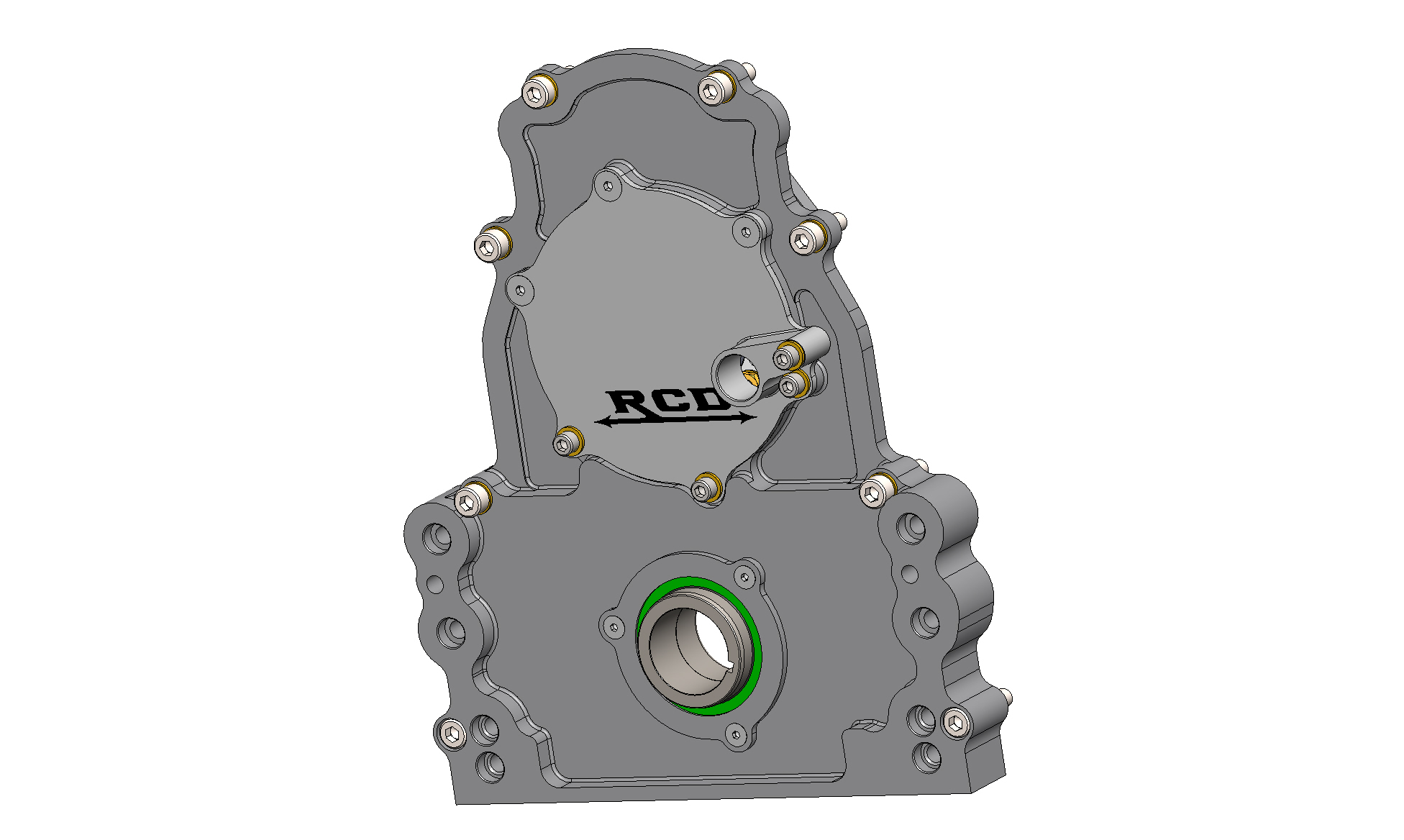

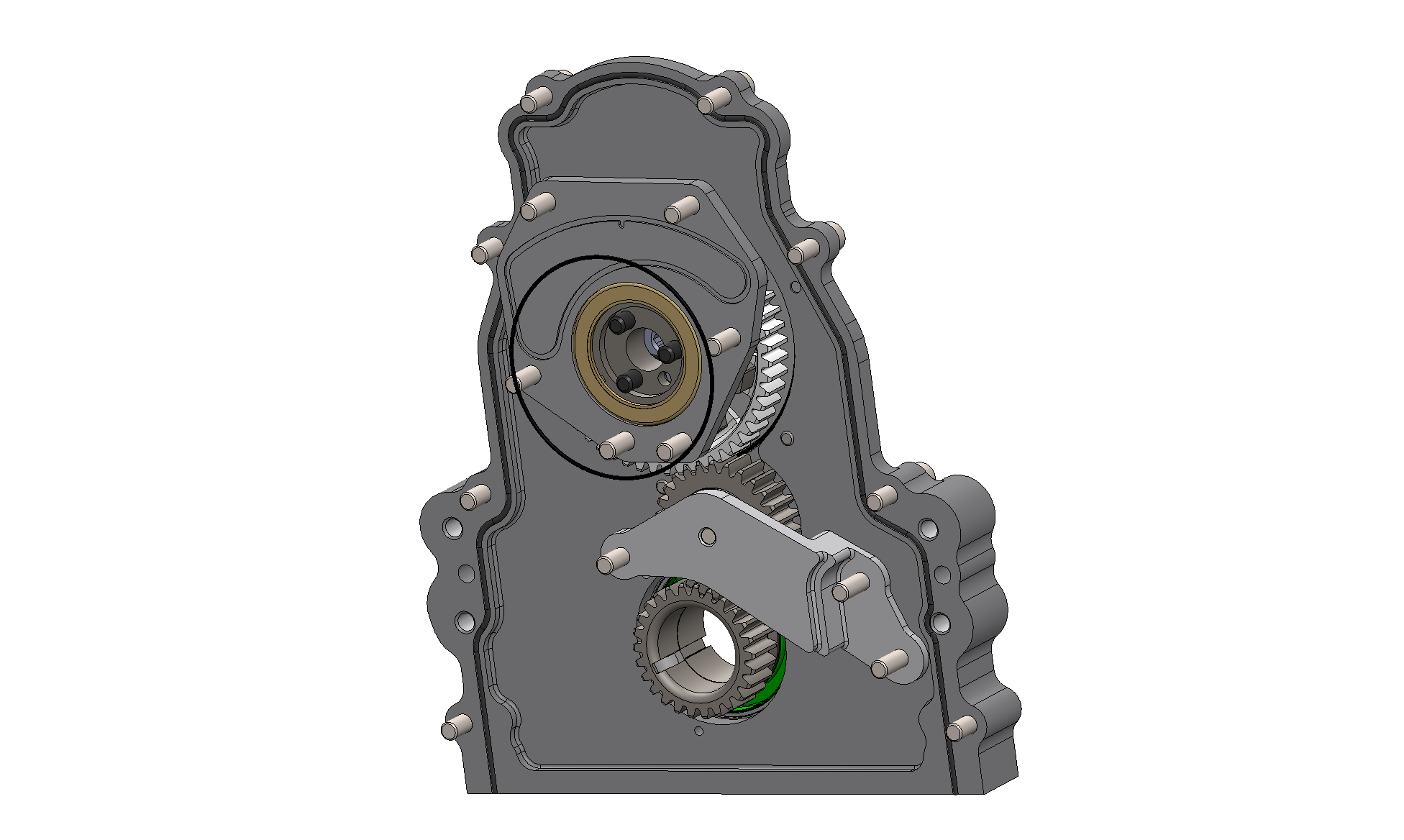

CAM LOCATION TALL CRANK SUPPORT FRONT 2100 253500-0054 This tall cam LS gear drive has provisions to mount a RCD front crank support.

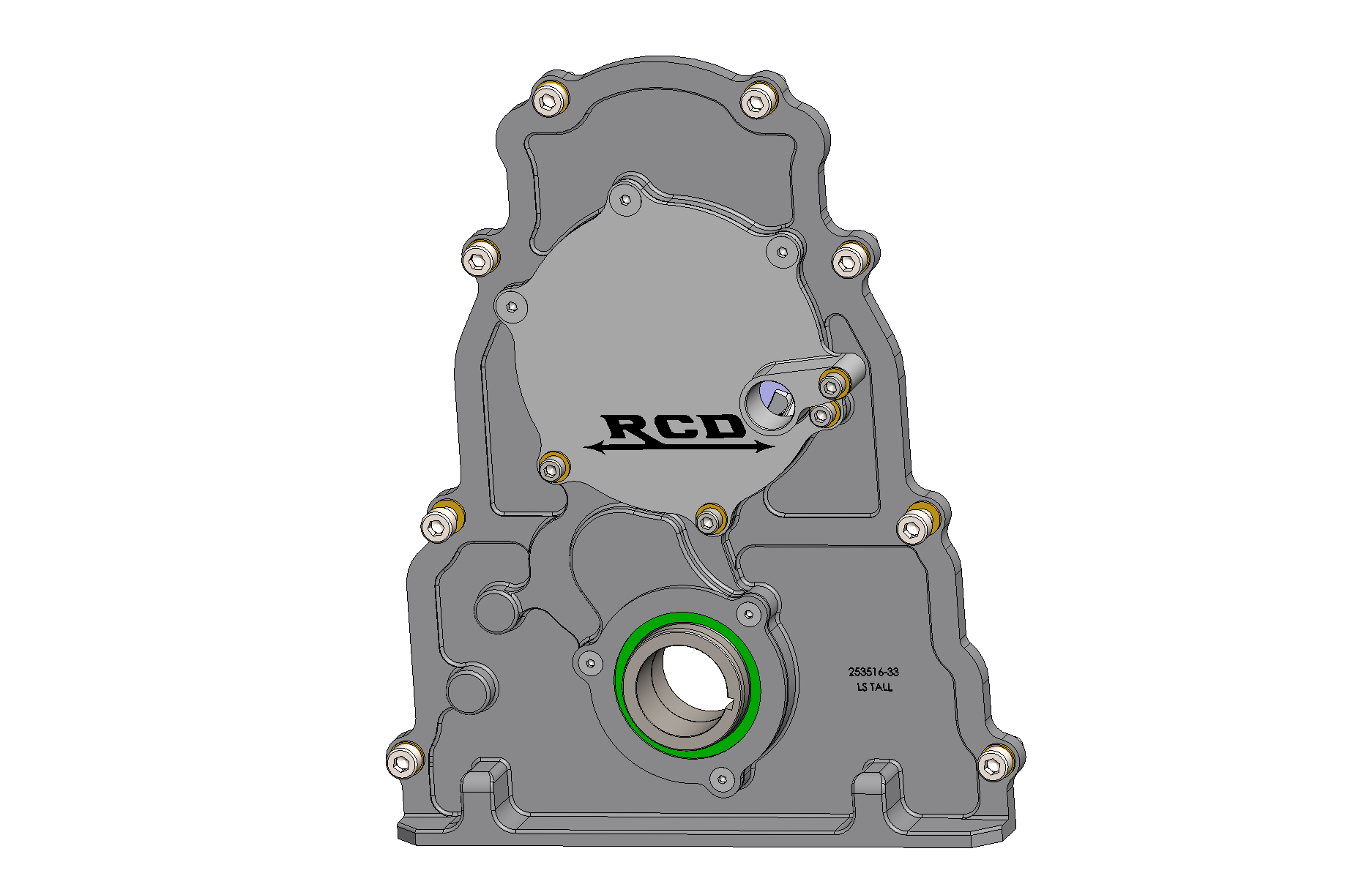

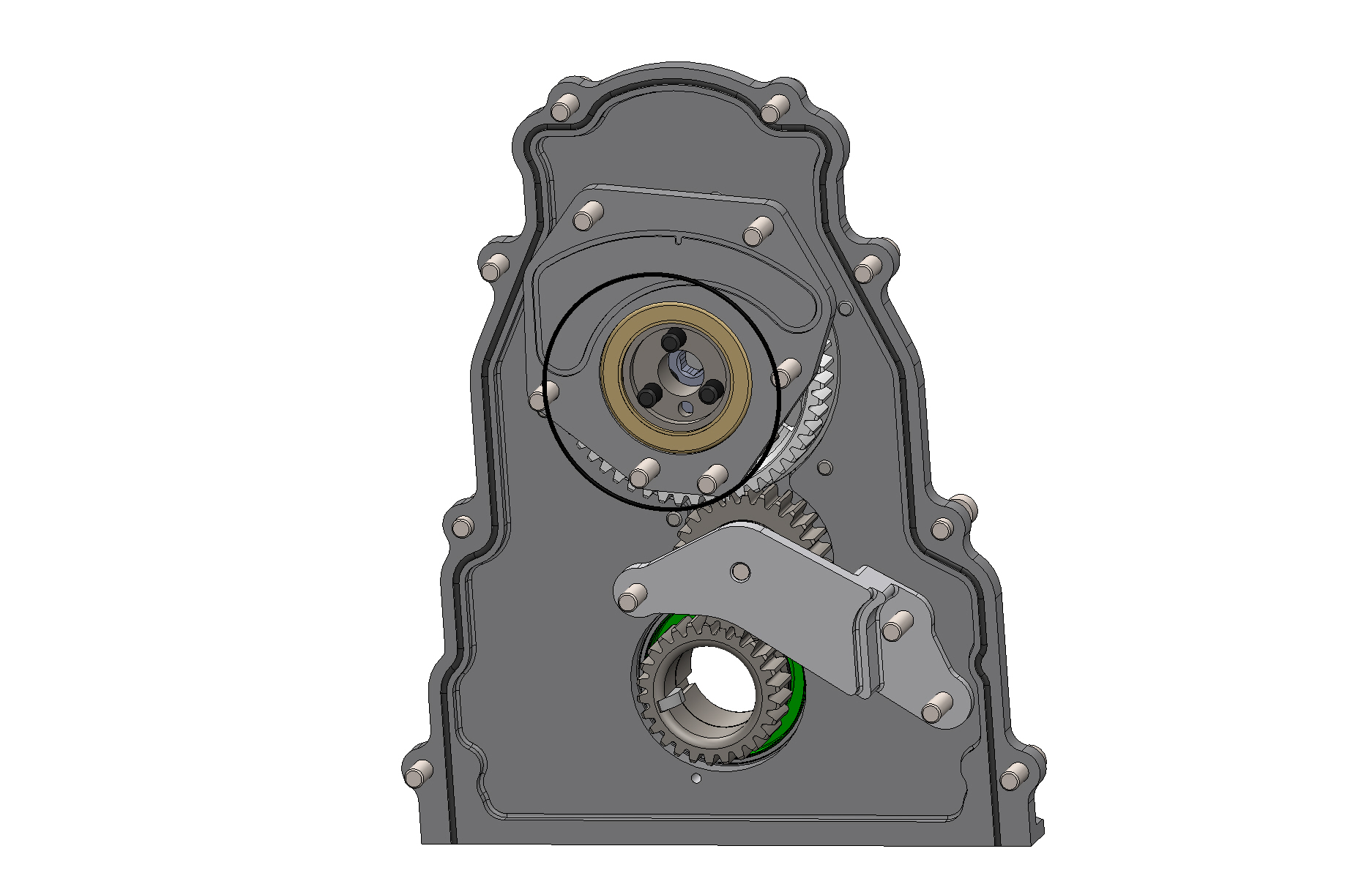

CAM LOCATION TALL CRANK SUPPORT N/A 1500 253500-0055 This tall cam LS gear drive does not have provisions for a crank support.

LS GEAR DRIVES

These gear drives are made to fit an LS engine block with a standard or raised camshaft. Configurations are available to use a front crankshaft support. Some aftermarket engine blocks require a specific cam thrust plate, an RCD salesperson will be able to help you get the correct hardware.
0
253500-0052 LS GEAR DRIVE STD CAM W-CRANK SUPPORT BOM.PDF   Download
253500-0053 LS GEAR DRIVE STD NO CRANK SUPPORT BOM.PDF   Download
253500-0054 LS GEAR DRIVE TALL W-CRANK SUPPORT BOM.PDF   Download
253500-0055 LS GEAR DRIVE TALL NO CRANK SUPPORT.PDF   Download

Specifications
