Products / FACEPLATES

SKU:

MOUNTING PATTERN

ROOTS SCREW BLOWER SNOUT MOUNT SSI 3-HOLE & KOBELCO

STARTER MOUNT

NO YES

HEAVY DUTY

NO NO GUARD YES

PROFILE

DRAGSTER FUNNY CAR

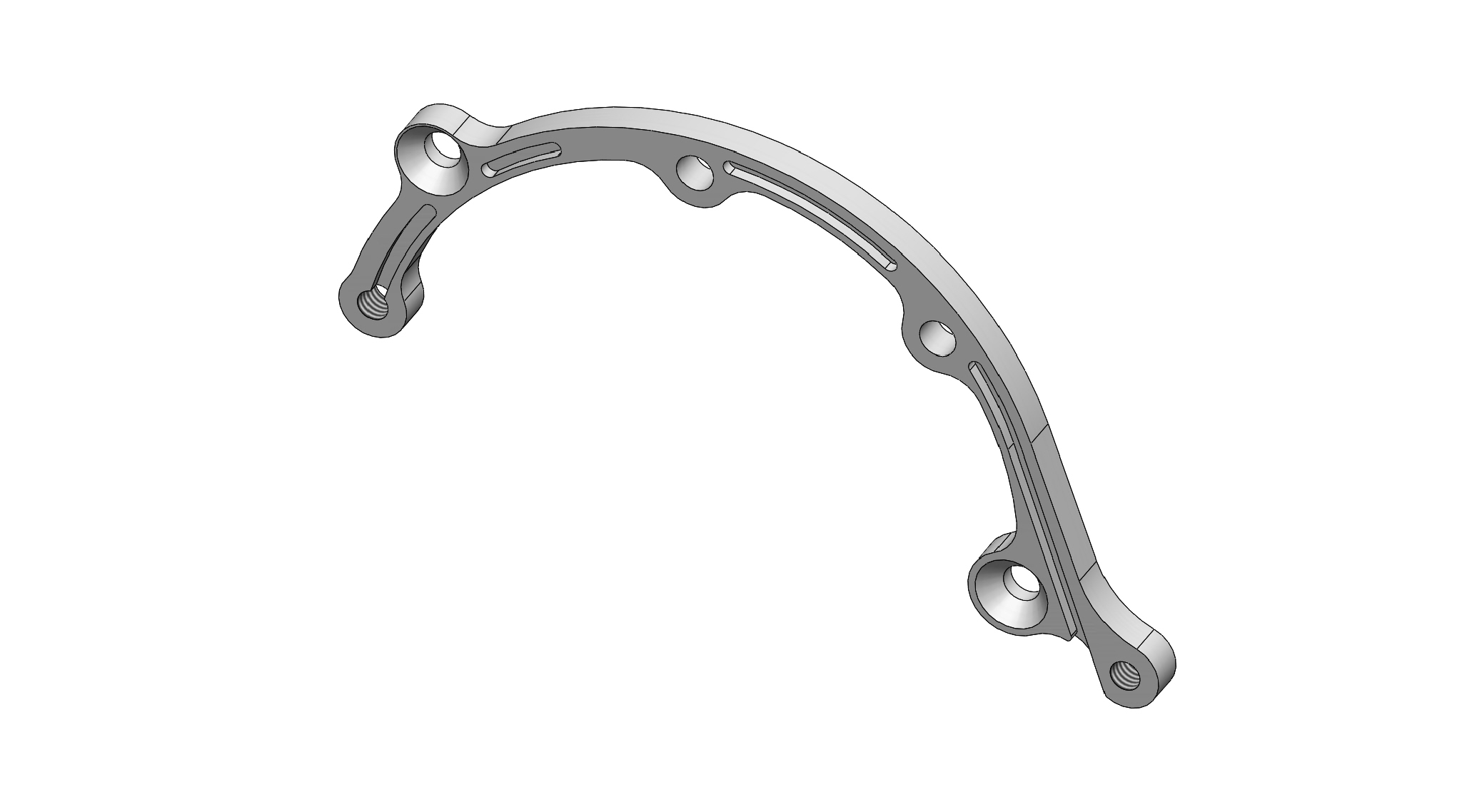

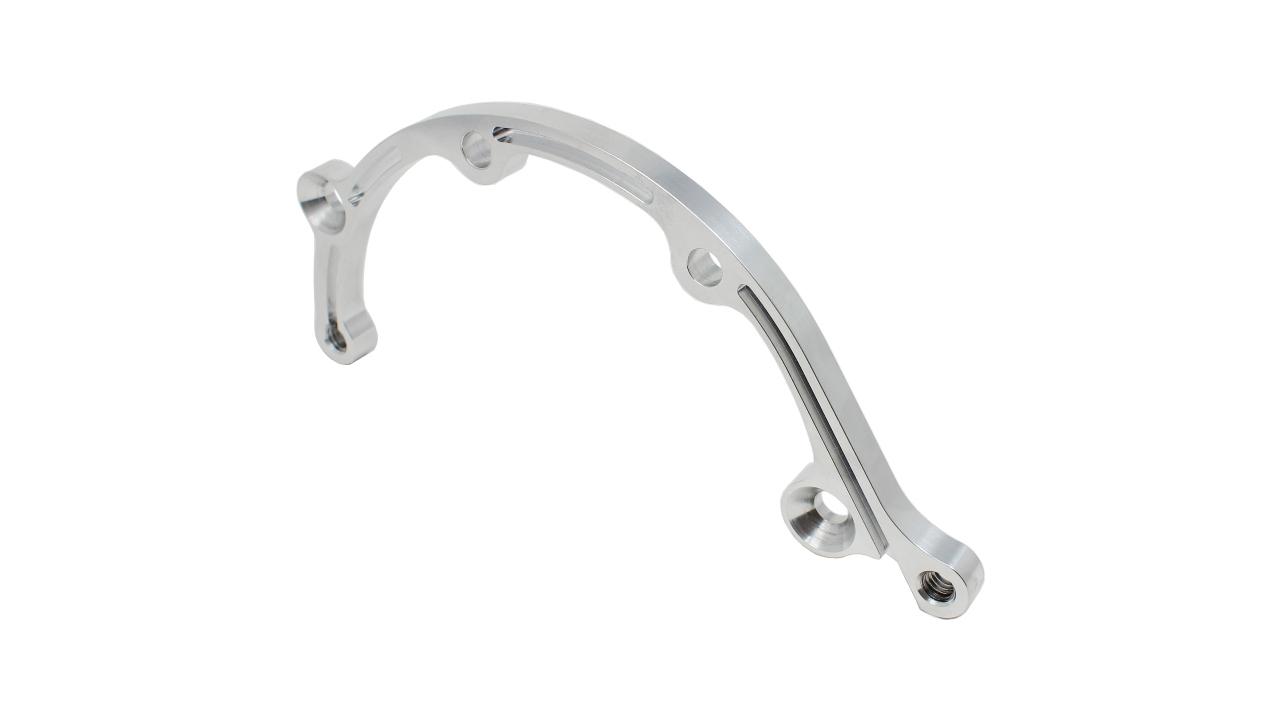

MOUNTING PATTERN ROOTS STARTER MOUNT NO HEAVY DUTY NO 54.15 103507-05 This faceplate is for a Roots style blower with our standard guard.

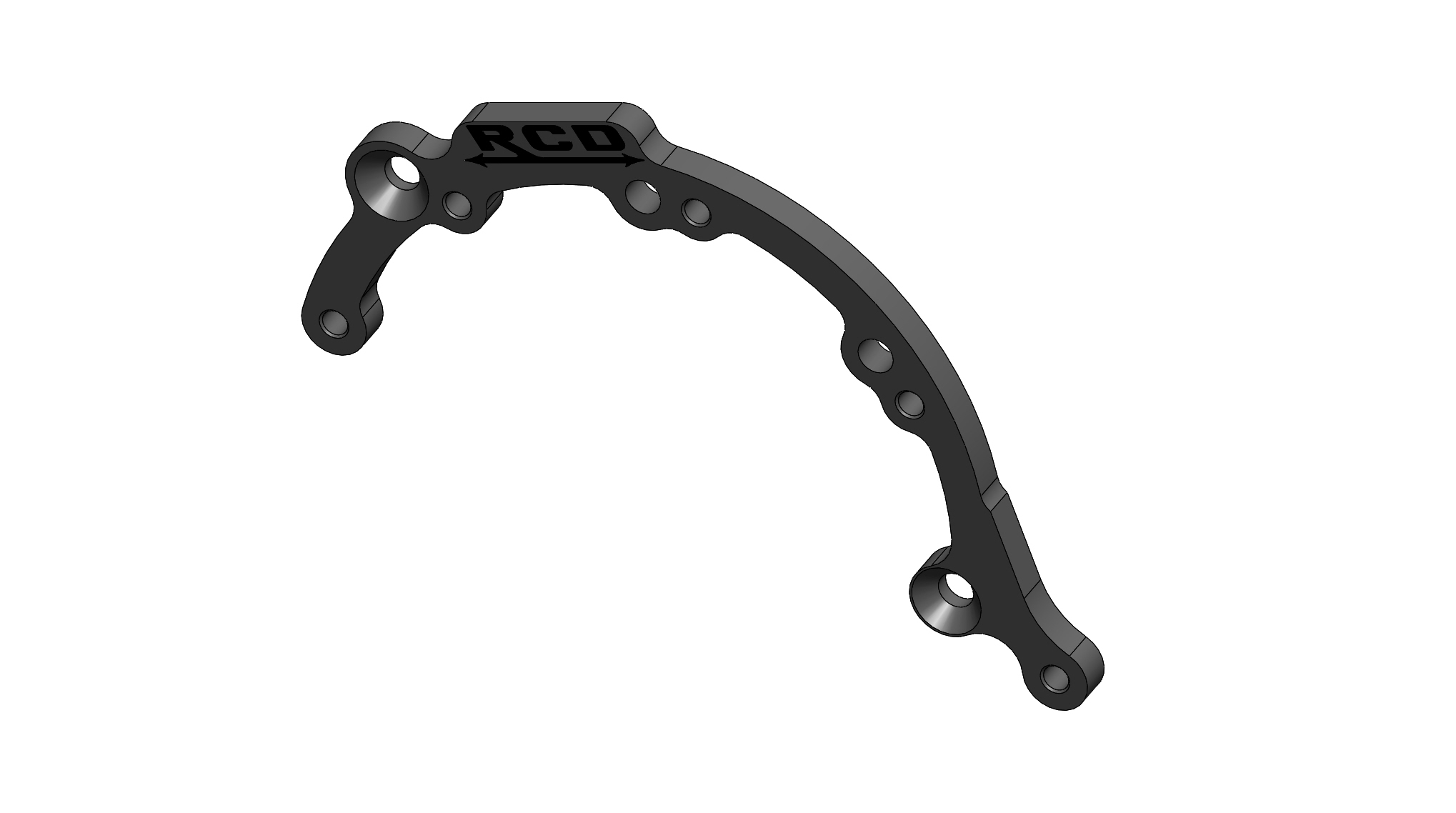

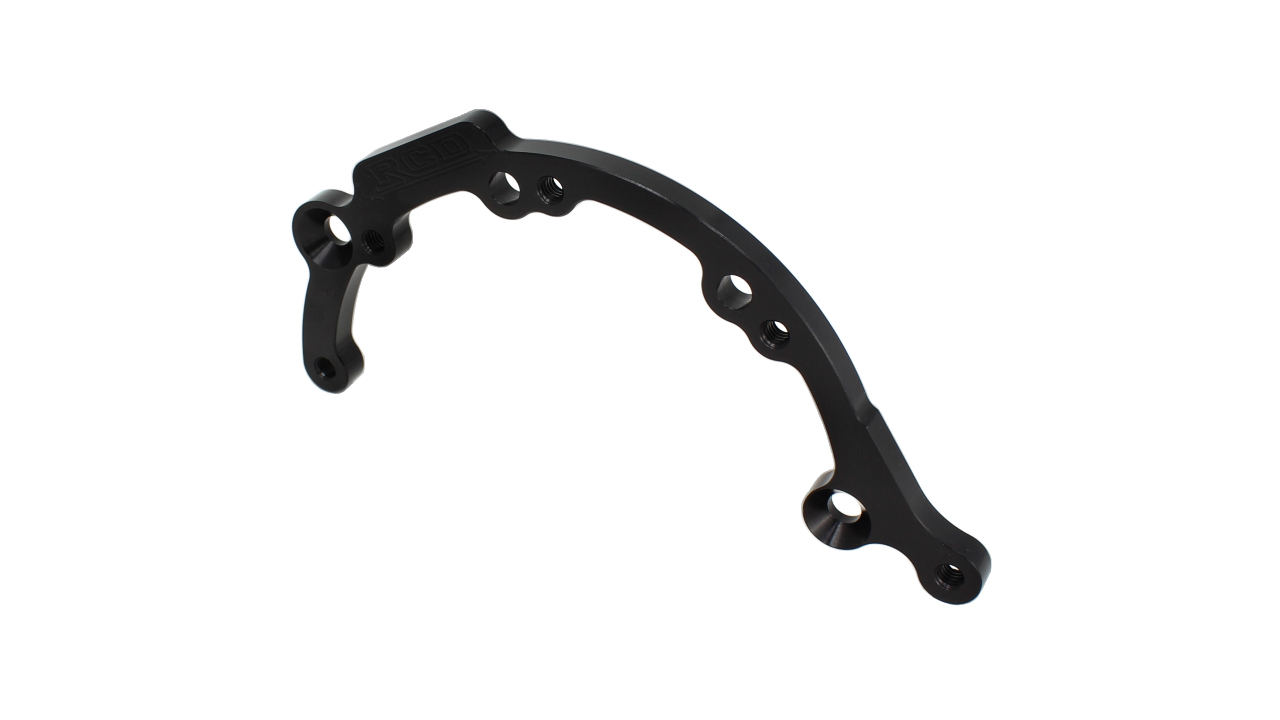

MOUNTING PATTERN ROOTS STARTER MOUNT NO HEAVY DUTY YES 74 103507-07 This faceplate is for a Roots style blower with our heavy duty guard.

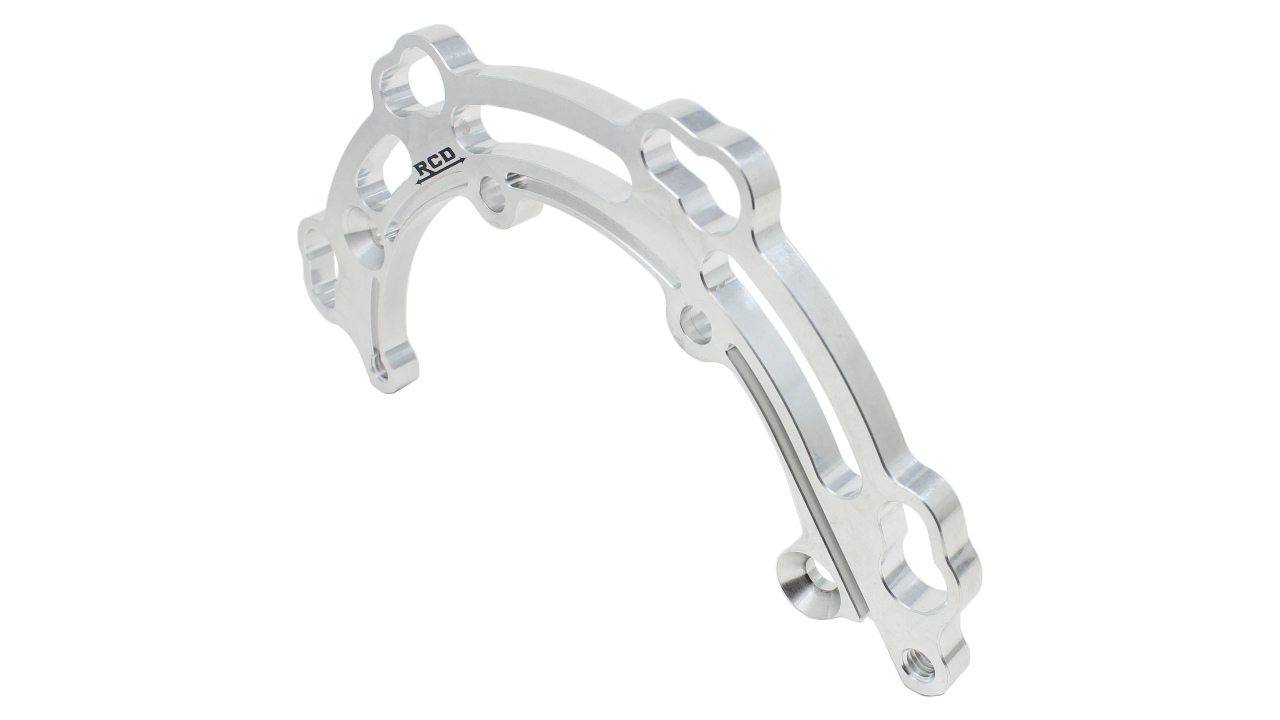

MOUNTING PATTERN ROOTS STARTER MOUNT YES HEAVY DUTY NO 64.97 103507-04 This faceplate is for a Roots style blower with starter mounts and our standard guard.

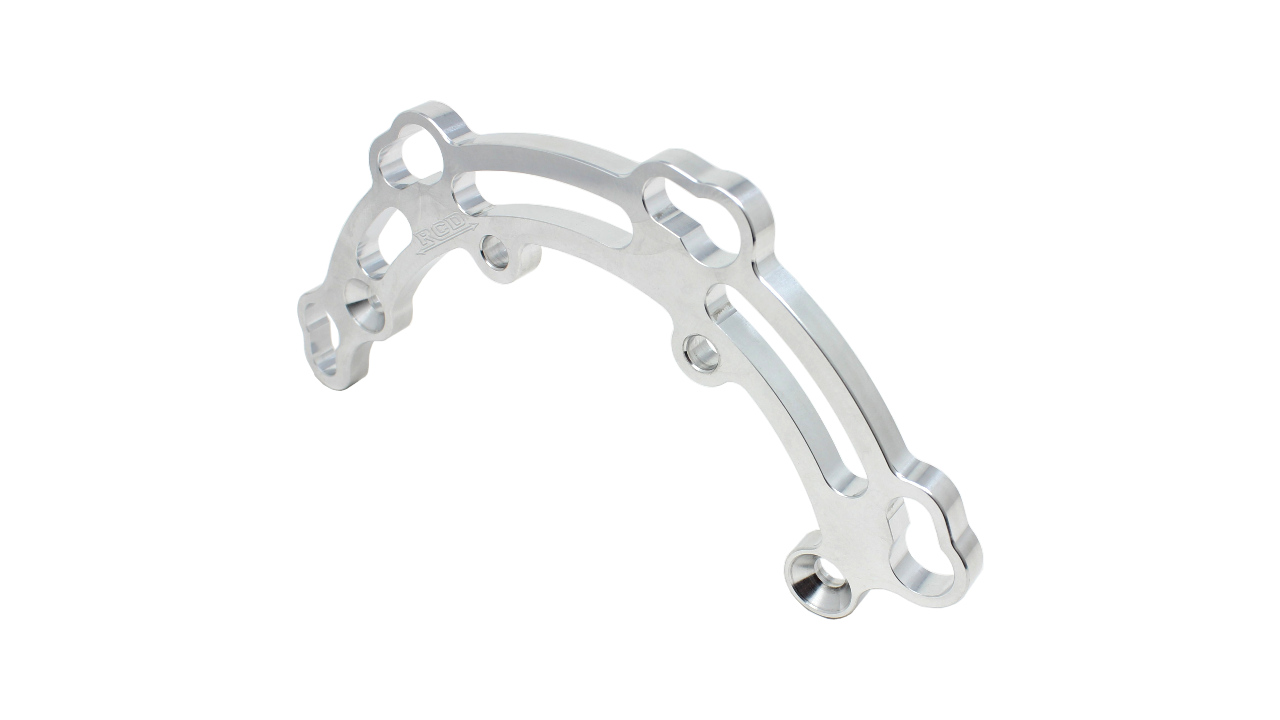

MOUNTING PATTERN ROOTS STARTER MOUNT YES HEAVY DUTY NO GUARD 69.72 103507-03 This faceplate is for a Roots style blower with starter mounts and does not have mounts for a belt guard.

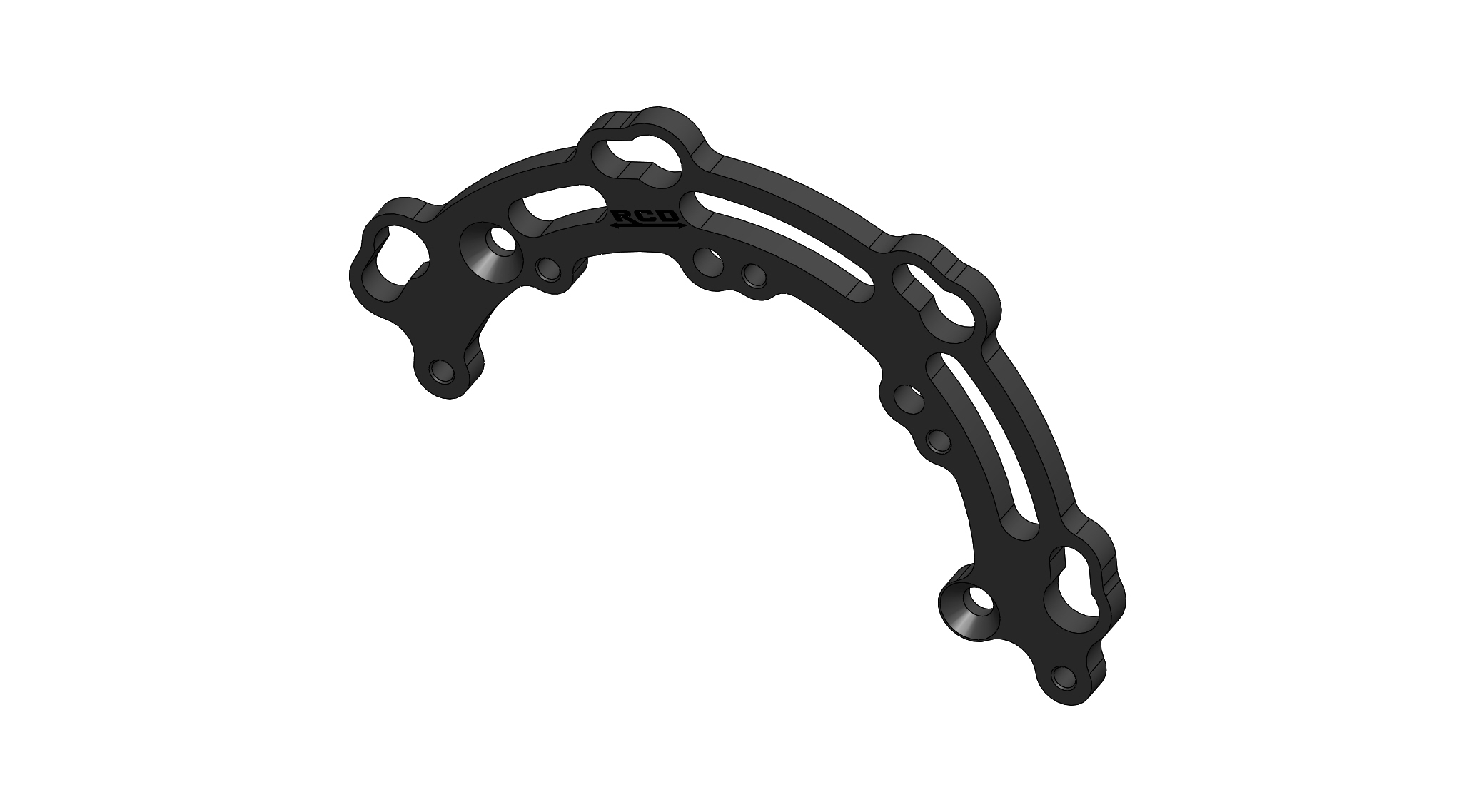

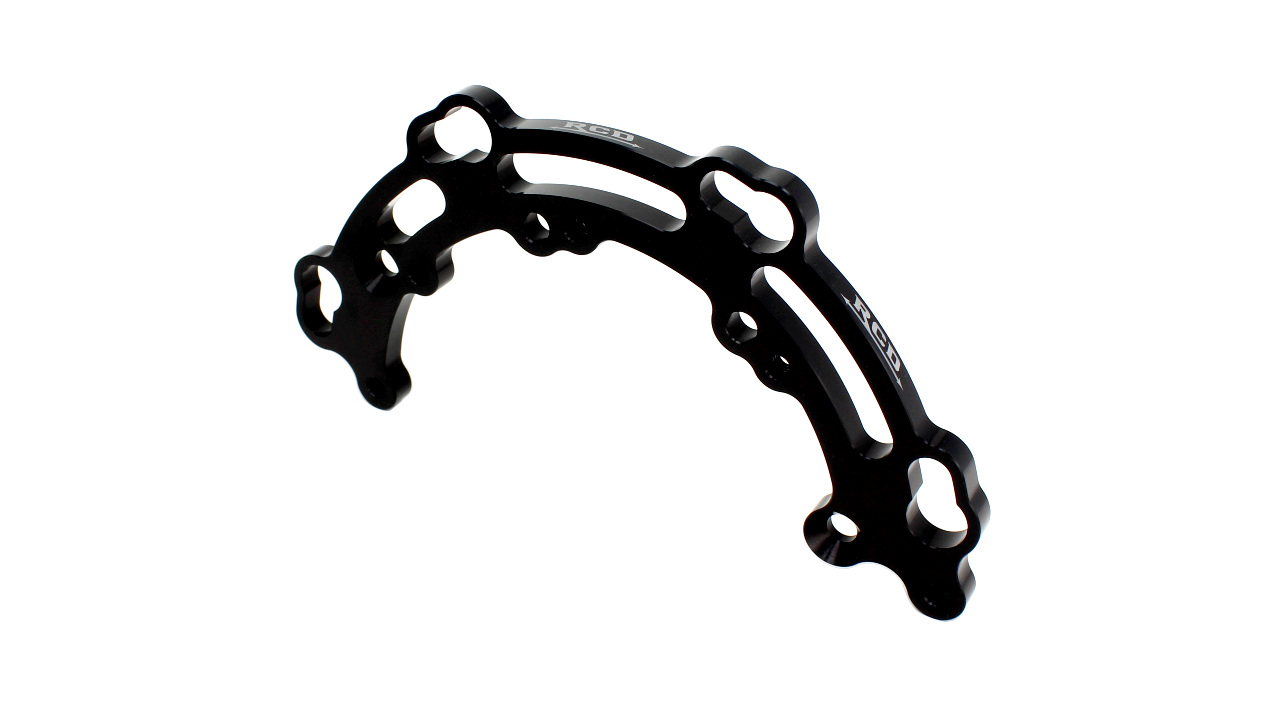

MOUNTING PATTERN ROOTS STARTER MOUNT YES HEAVY DUTY YES 74 103507-06 This faceplate is for a Roots style blower with starter mounts and our heavy duty guard.

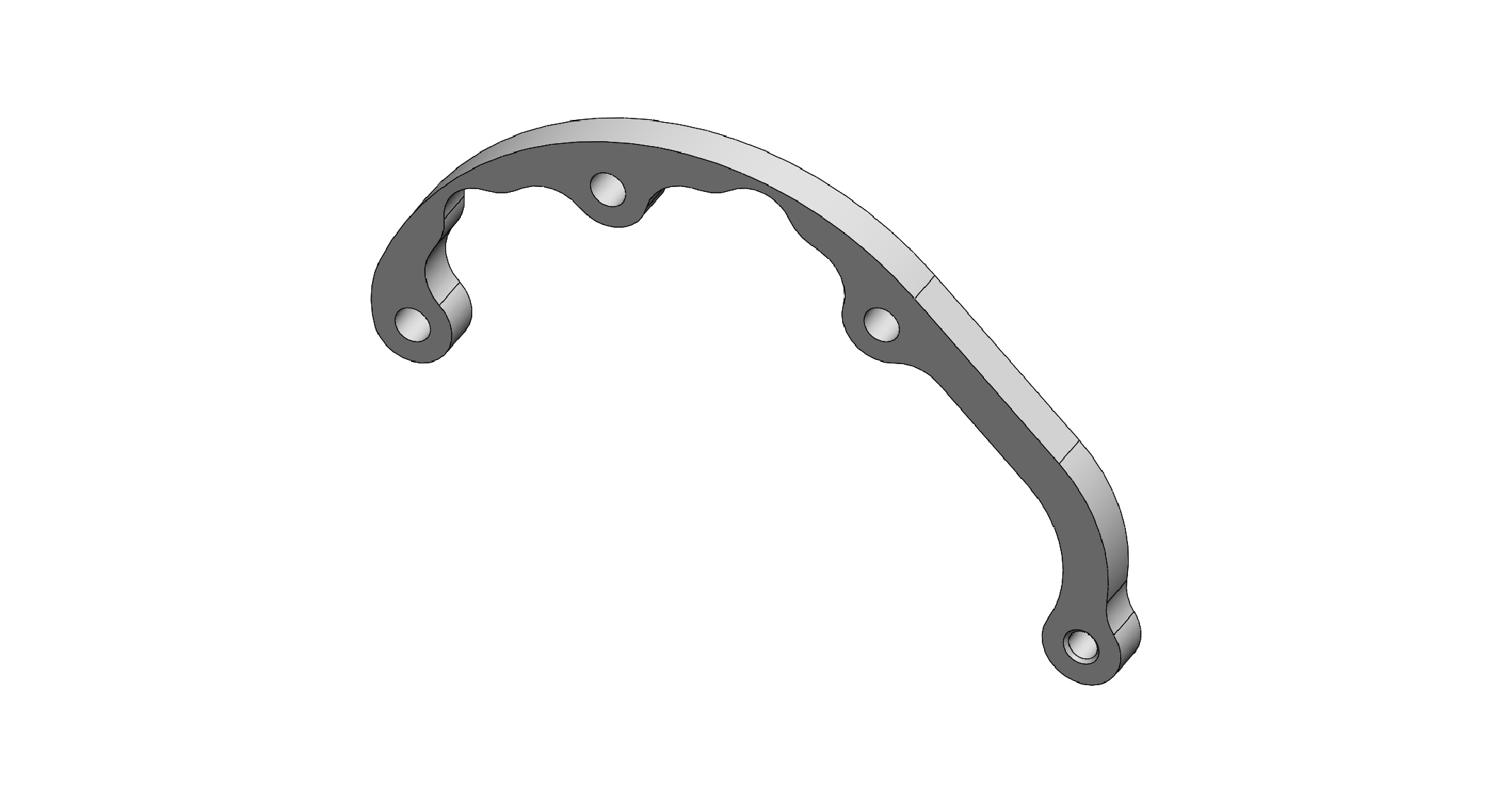

MOUNTING PATTERN SCREW BLOWER STARTER MOUNT NO HEAVY DUTY YES 55.78 103507-60 This faceplate is for a Screw style blower with our heavy duty guard.

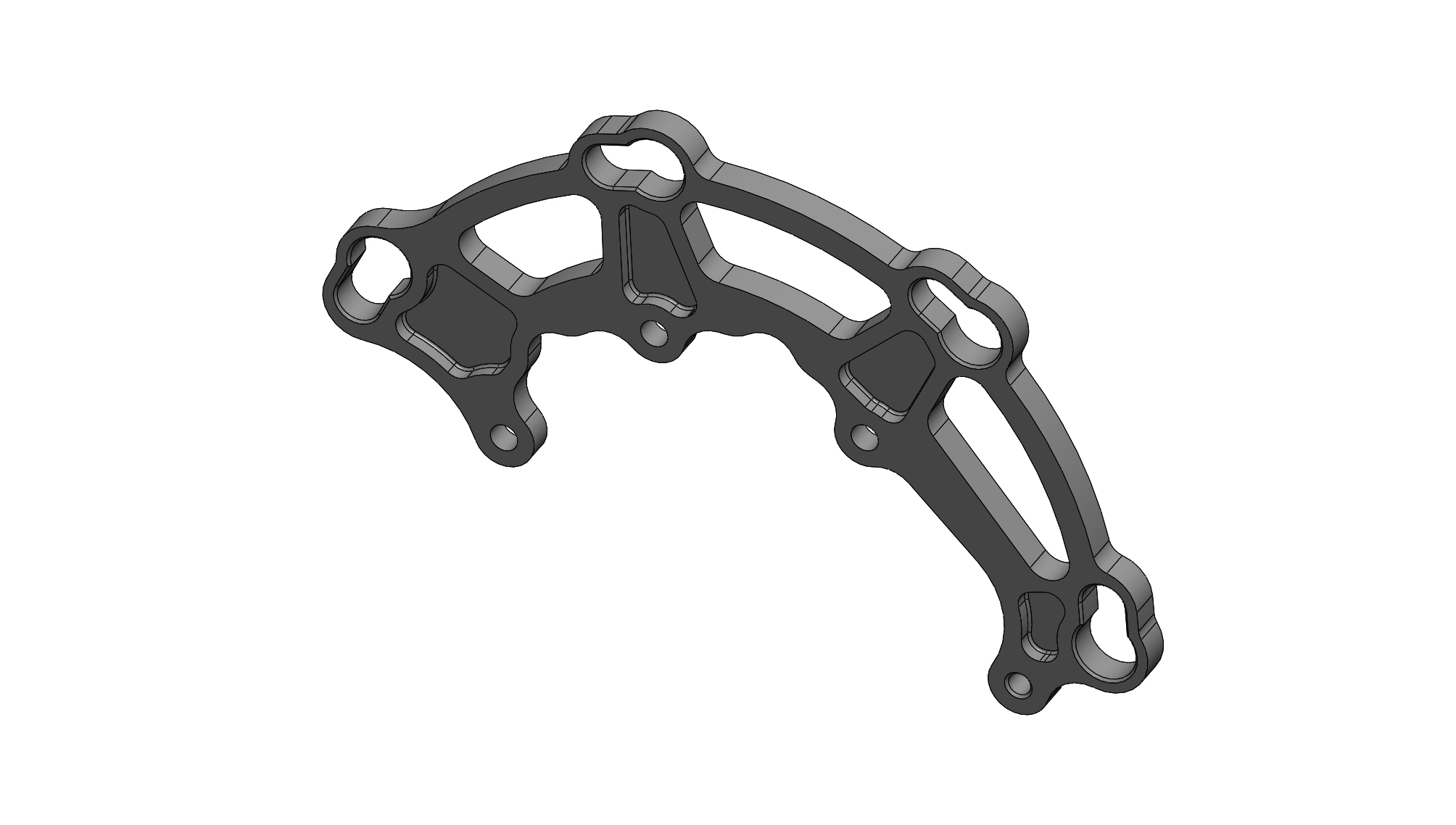

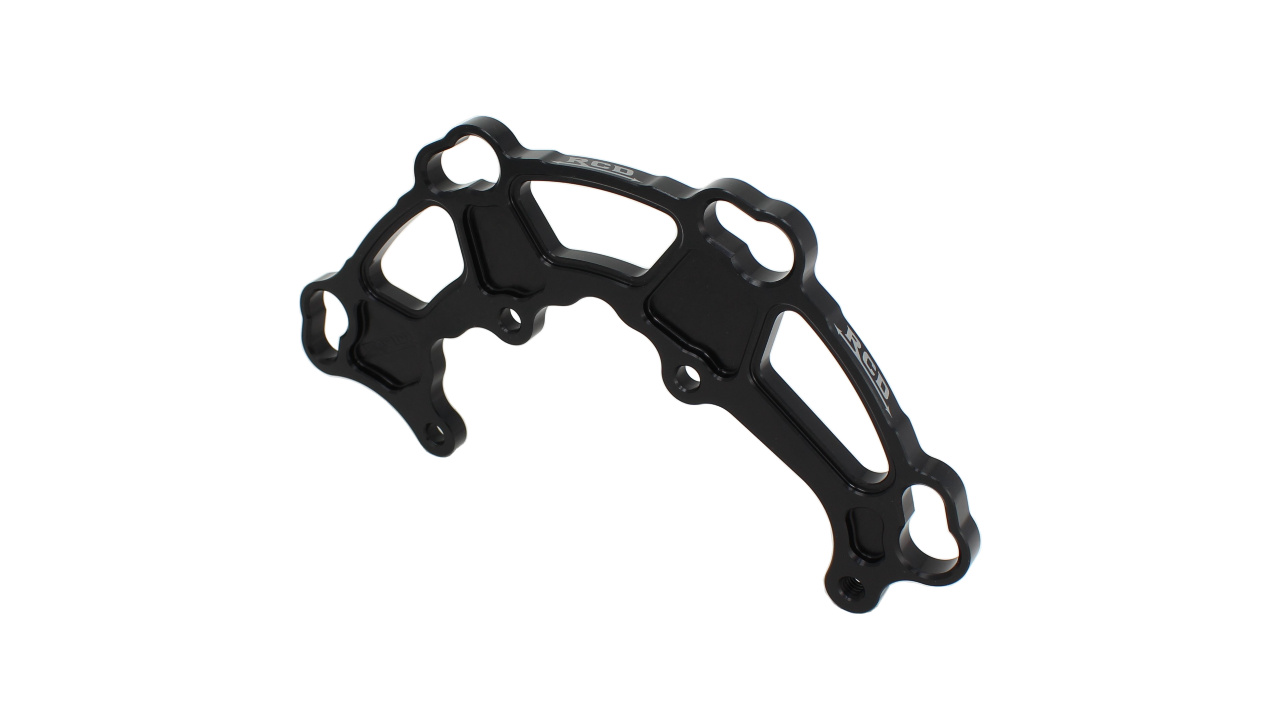

MOUNTING PATTERN SCREW BLOWER STARTER MOUNT YES HEAVY DUTY YES 93.33 103507-62 This faceplate is for a Screw style blower with our heavy duty guard, it has starter mounts.

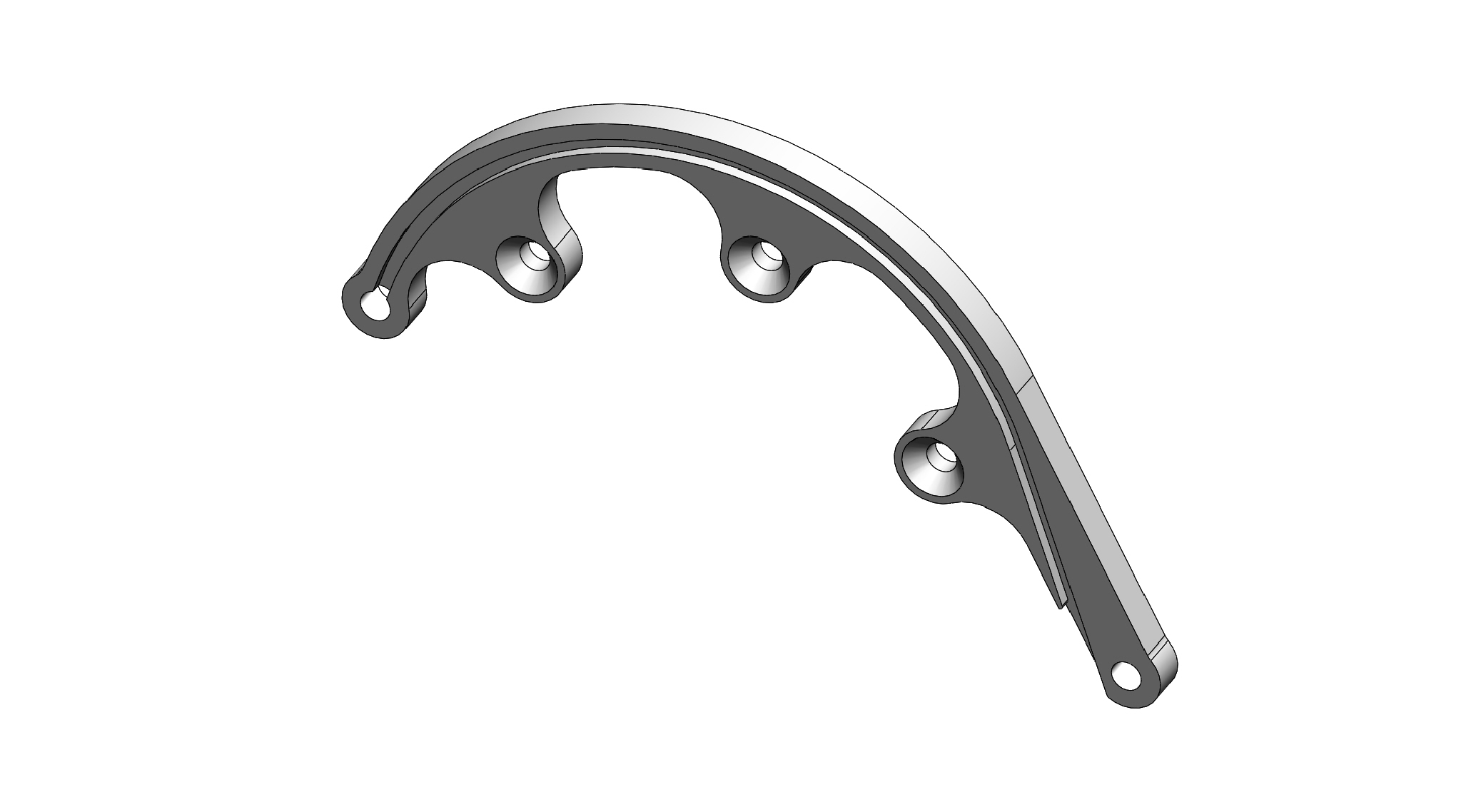

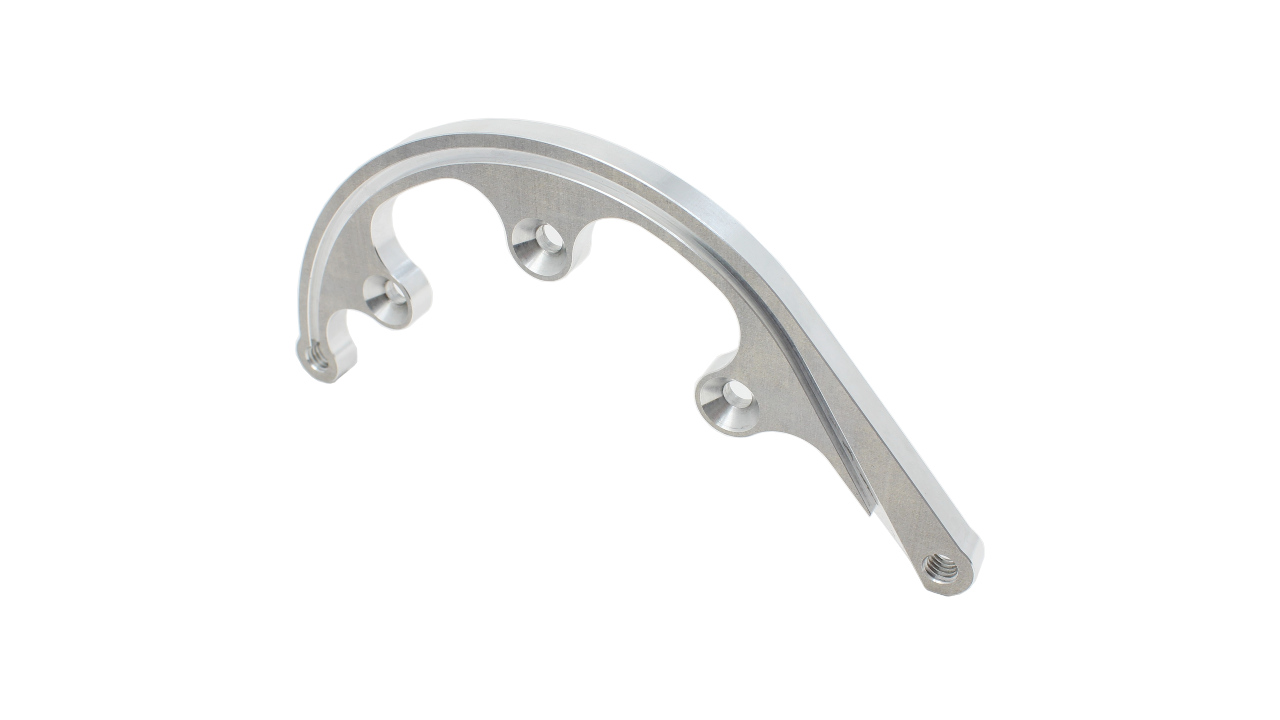

MOUNTING PATTERN SNOUT MOUNT STARTER MOUNT NO HEAVY DUTY NO 72.2 103507-17 This faceplate is for snout mounting with a separate clamp and our standard guard.

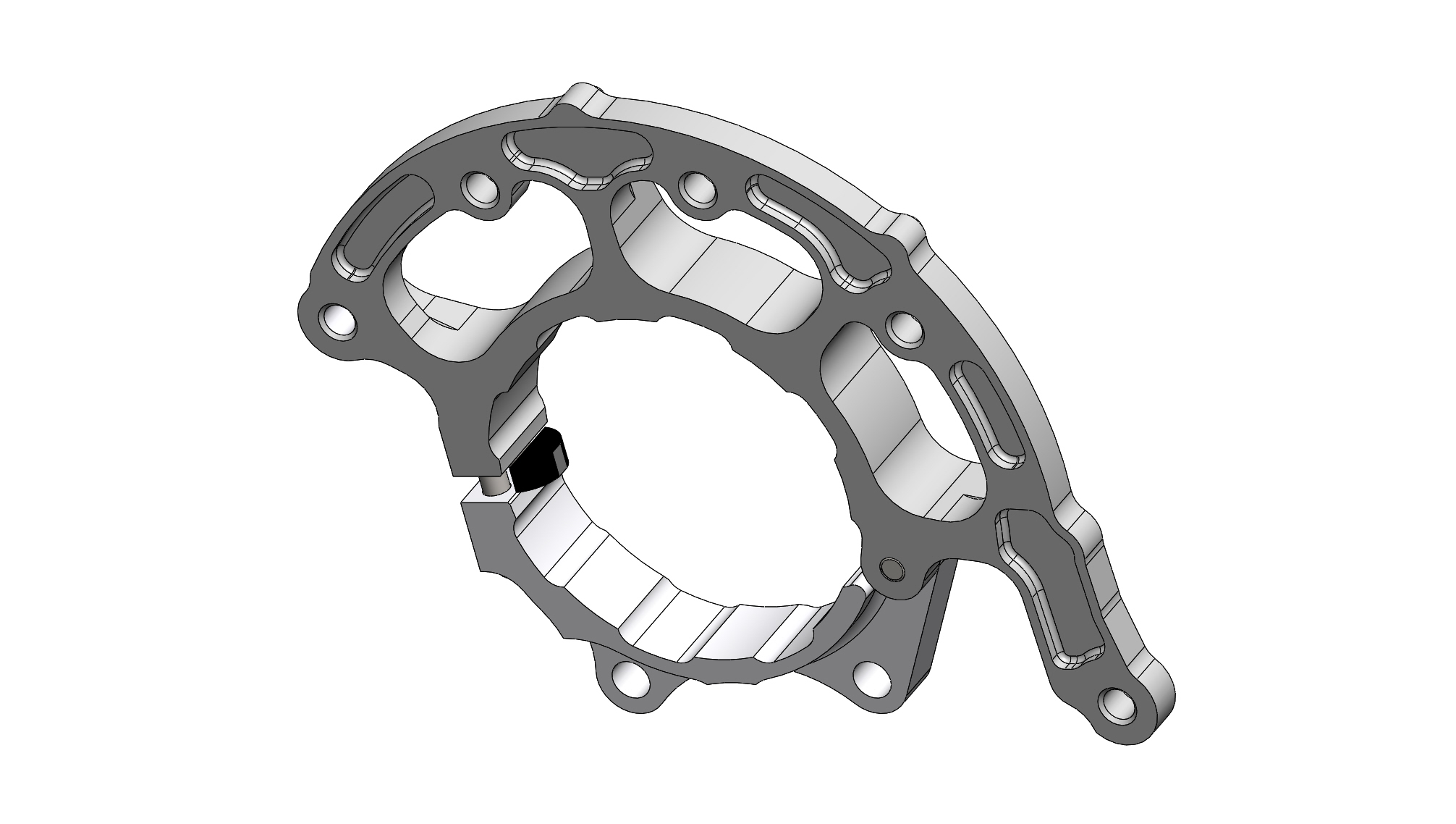

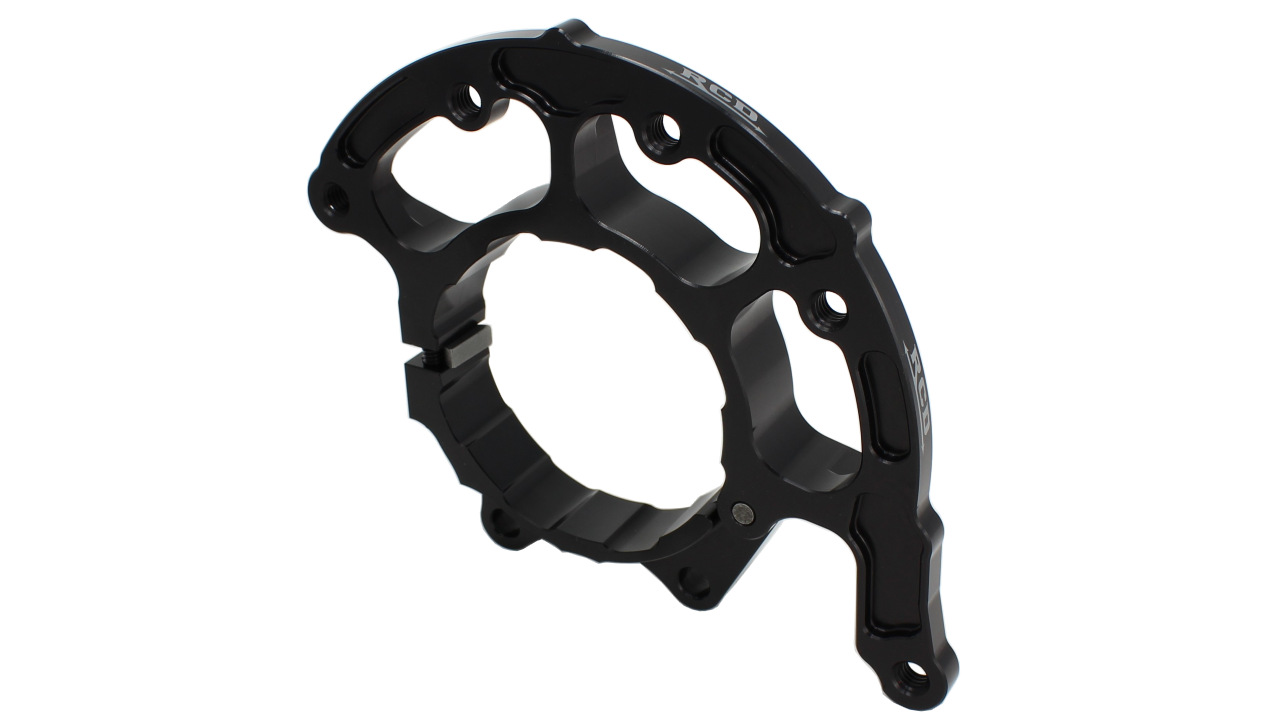

MOUNTING PATTERN SNOUT MOUNT STARTER MOUNT NO HEAVY DUTY YES 259.91 103507-0052 This faceplate clamps to the blower snout and works with our heavy duty guard, there is no starter faceplate. NOTE: this guard is made to fit an RCD blower snout, other snouts may require a sleeve.

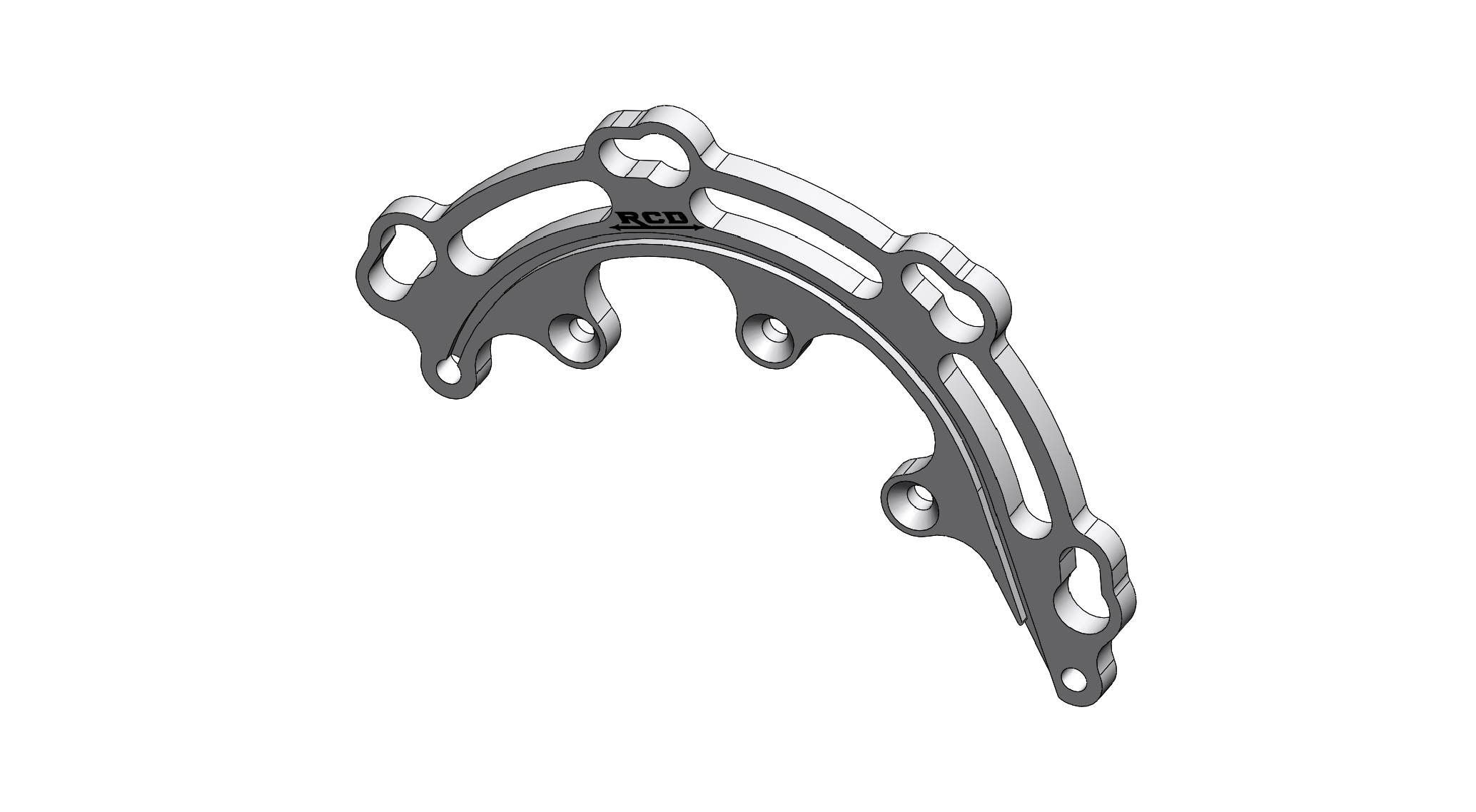

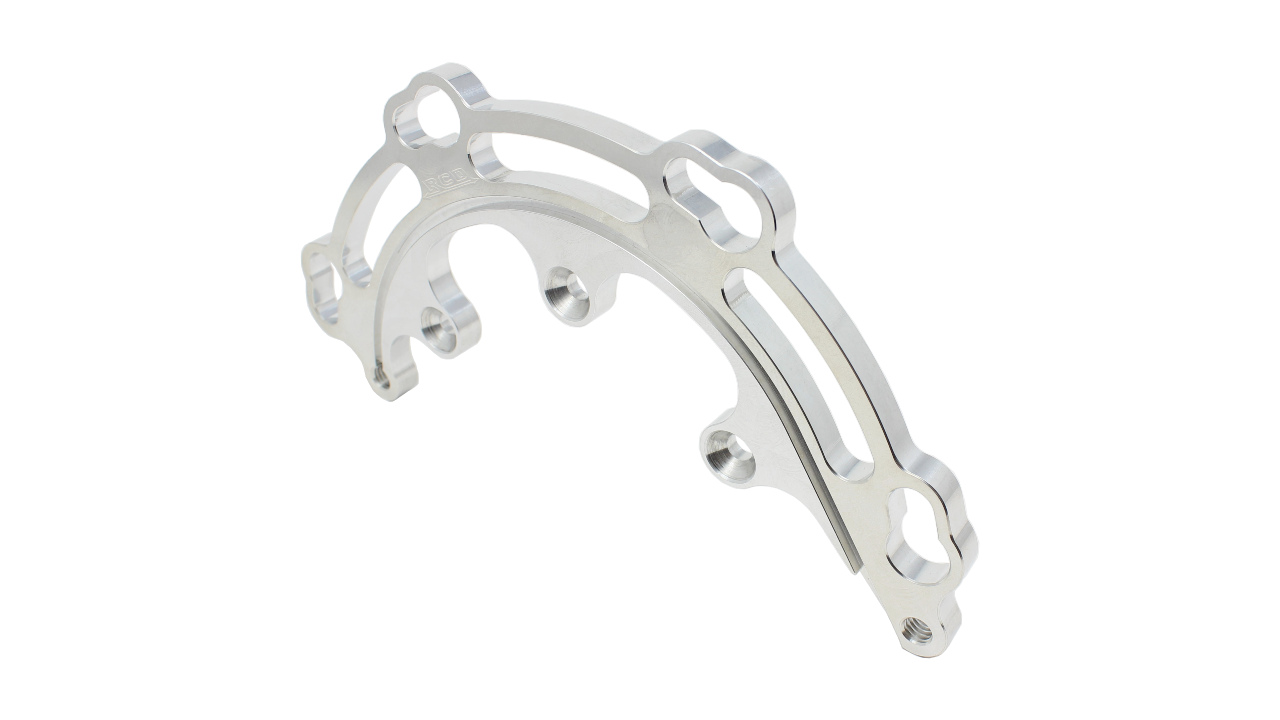

MOUNTING PATTERN SNOUT MOUNT STARTER MOUNT YES HEAVY DUTY NO 79.41 103507-18 This faceplate is for snout mounting with a separate clamp and our standard guard, it has starter mounts.

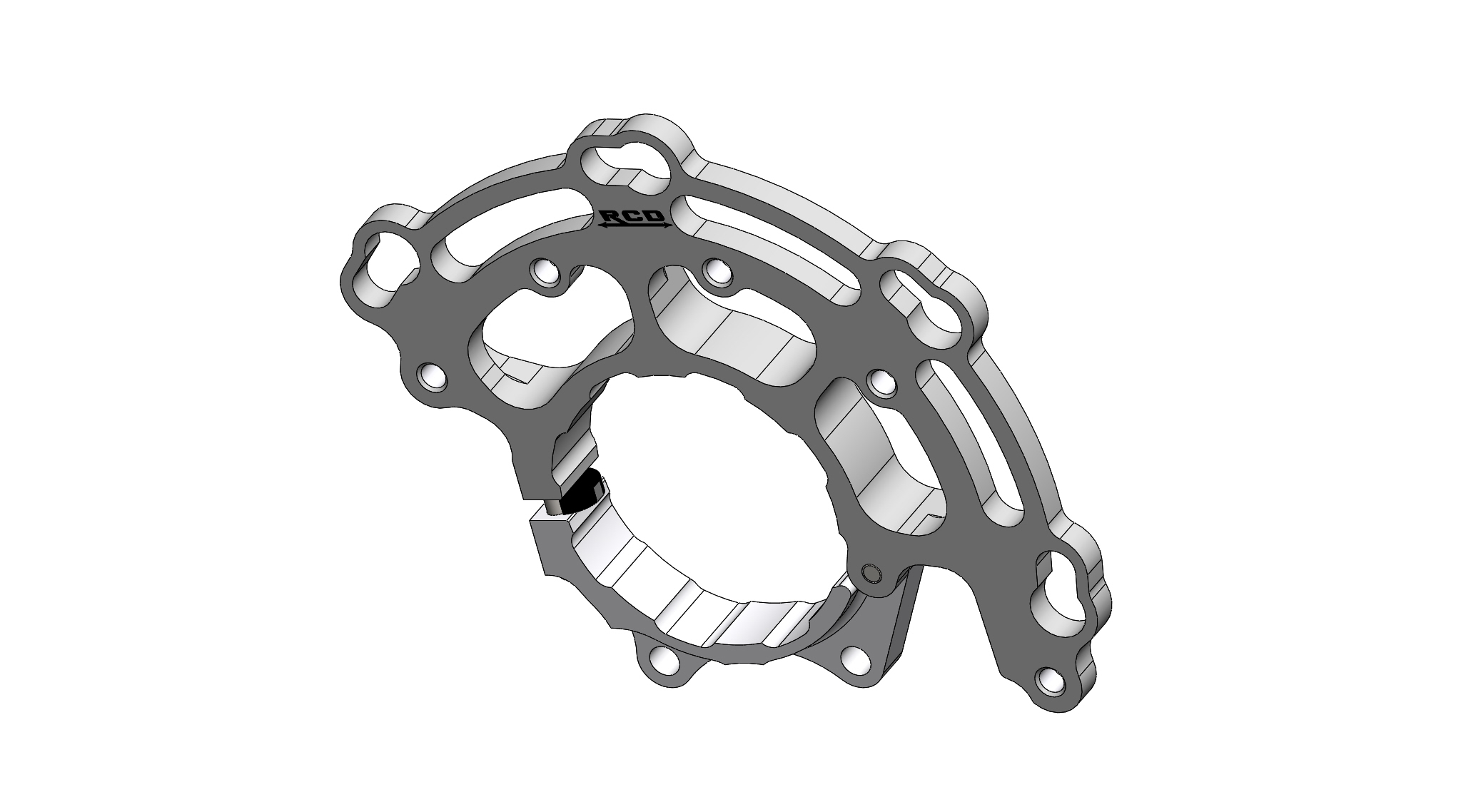

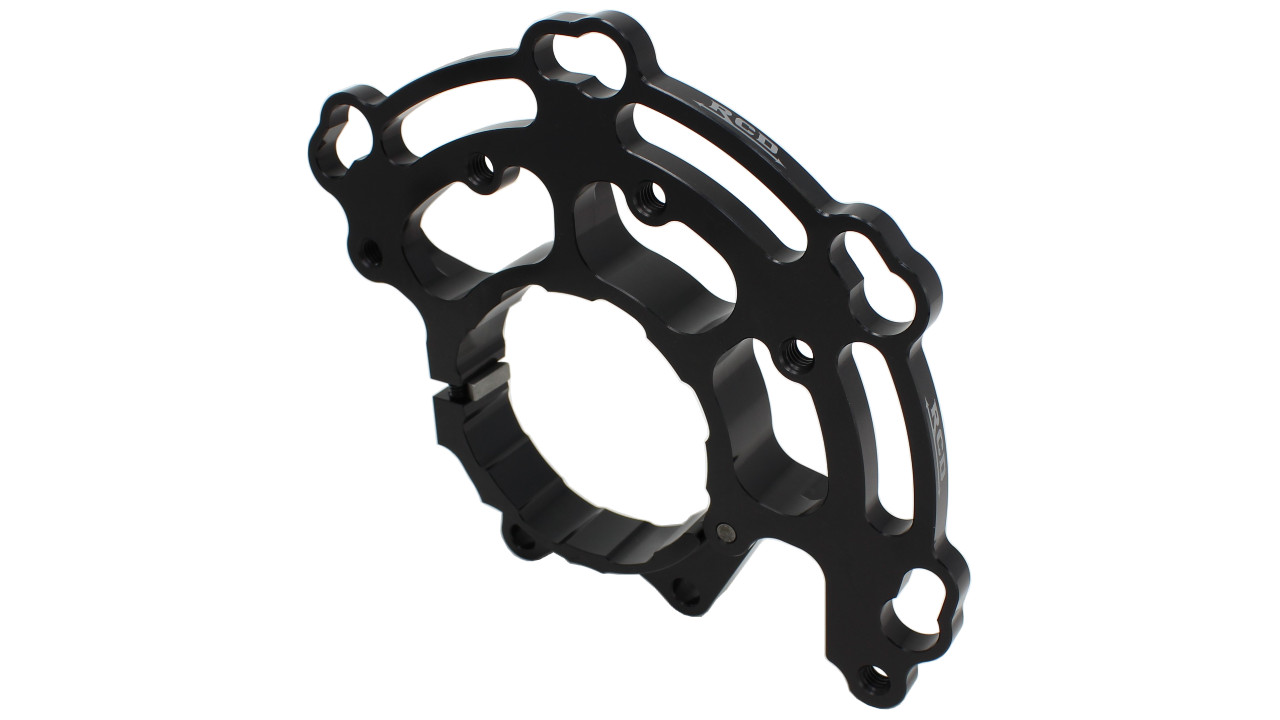

MOUNTING PATTERN SNOUT MOUNT STARTER MOUNT YES HEAVY DUTY YES PROFILE DRAGSTER 259.91 103507-0051 This faceplate clamps to the blower snout and is equipped with a standard starter faceplate and works with our heavy duty guard. NOTE: this guard is made to fit an RCD blower snout, other snouts may require a sleeve.

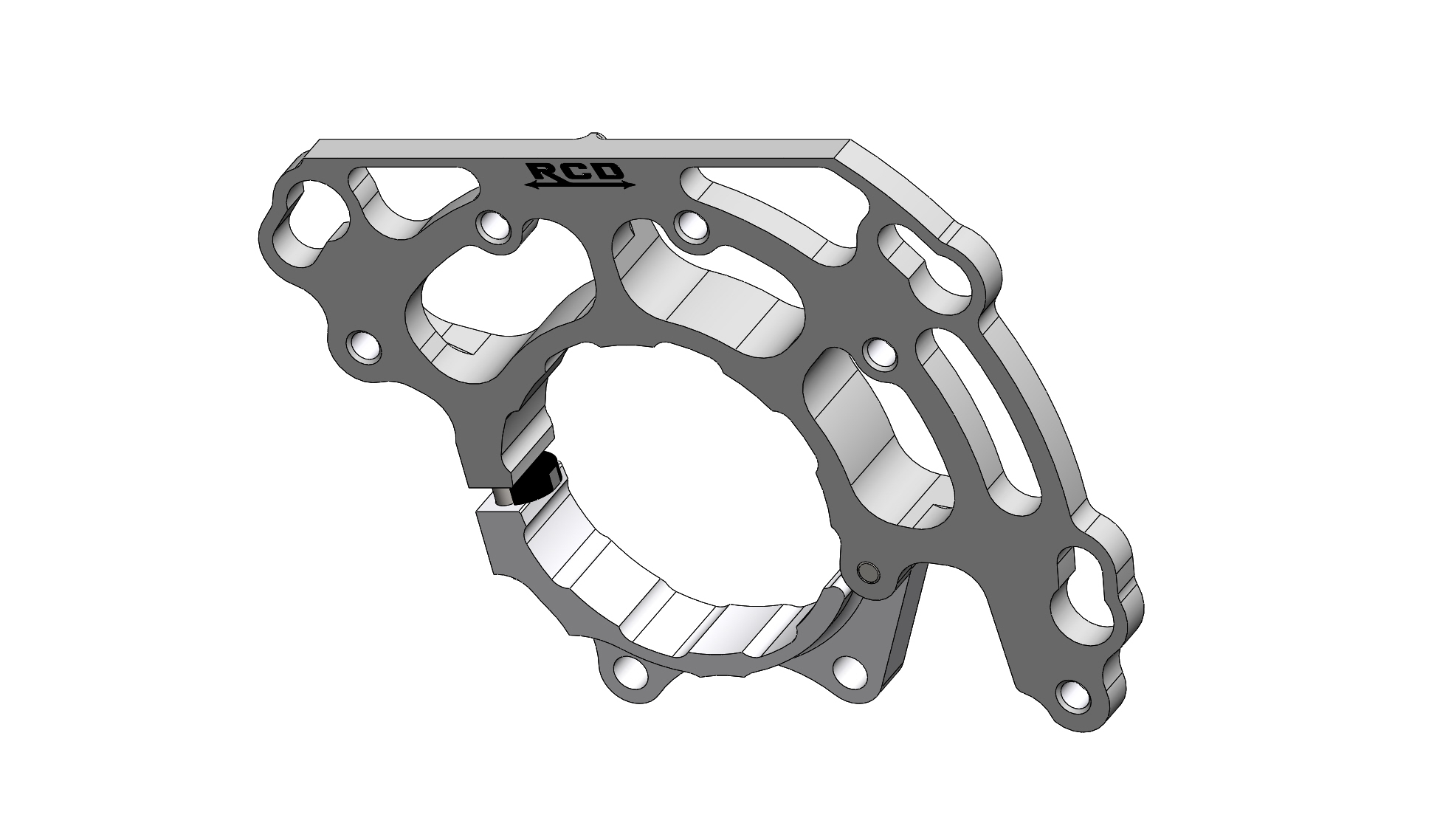

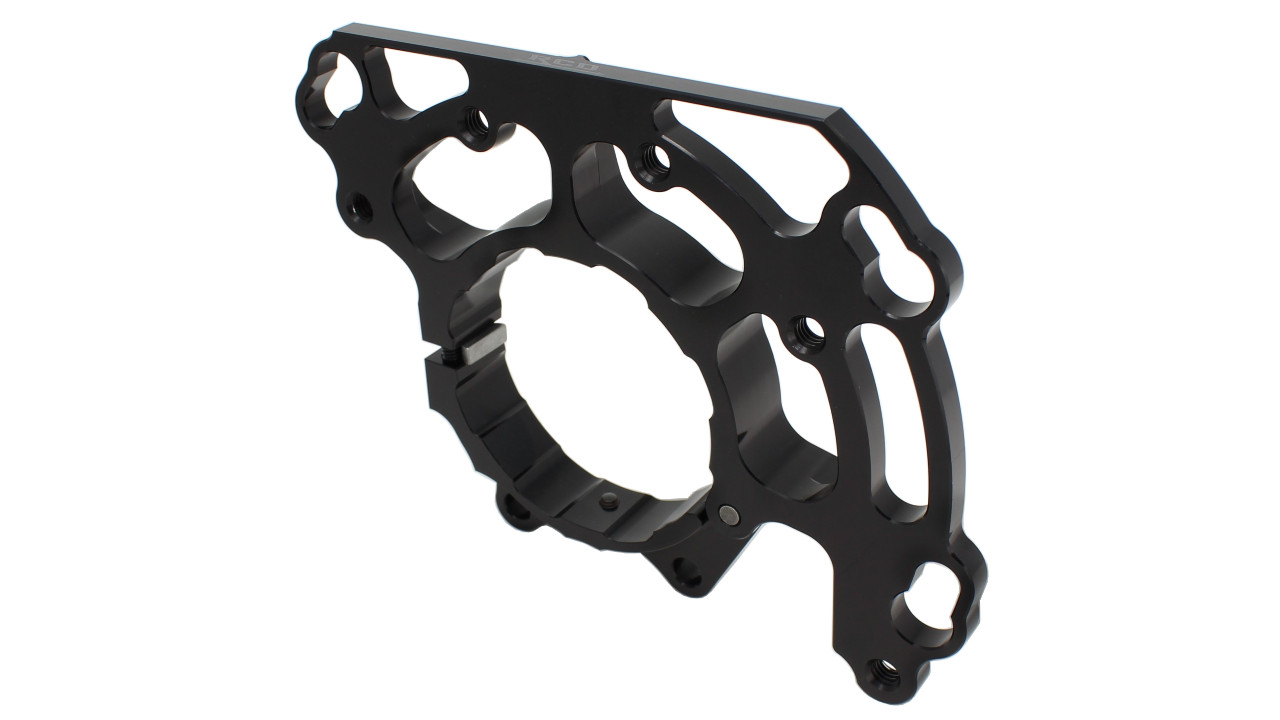

MOUNTING PATTERN SNOUT MOUNT STARTER MOUNT YES HEAVY DUTY YES PROFILE FUNNY CAR 259.91 103507-0050 This faceplate clamps to the blower snout and is equipped with a low profile starter faceplate perfect for Funny Cars and our heavy duty guard. NOTE: this guard is made to fit an RCD blower snout, other snouts may require a sleeve.

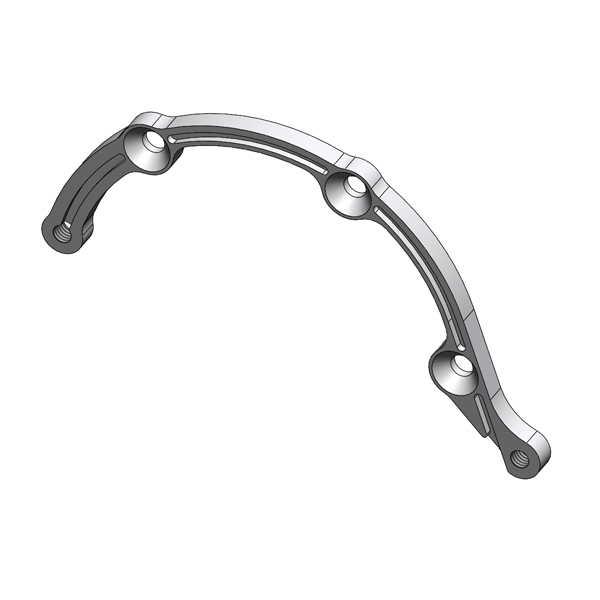

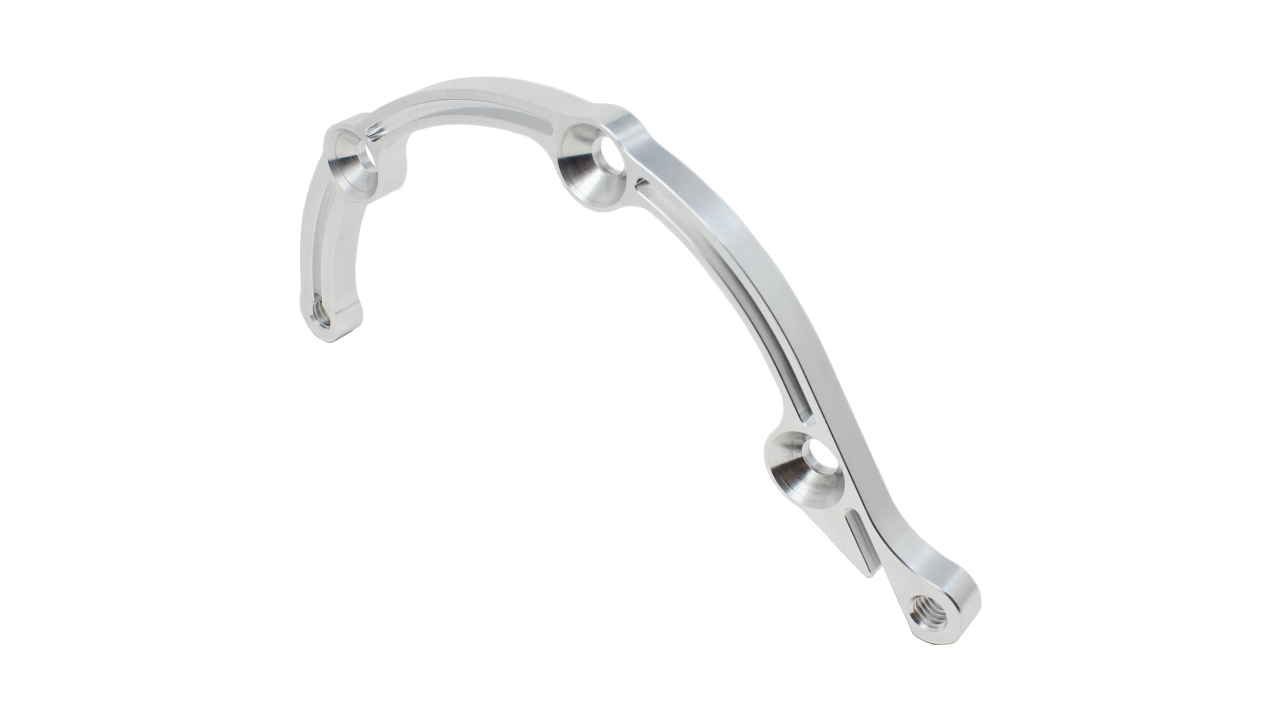

MOUNTING PATTERN SSI 3-HOLE & KOBELCO STARTER MOUNT NO HEAVY DUTY NO 64.97 103507-10 This faceplate is for a SSI/Kobelco style blower with our standard guard.

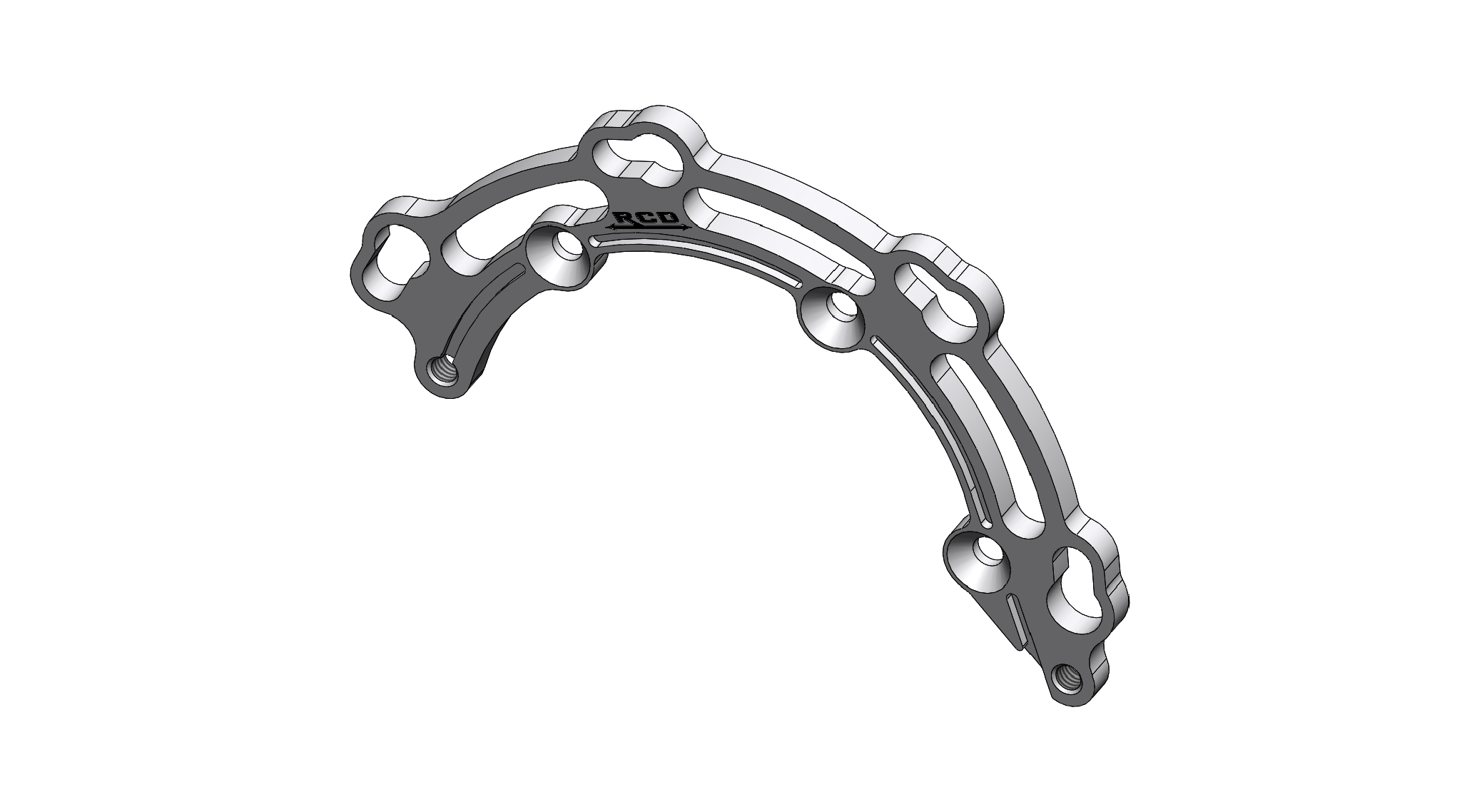

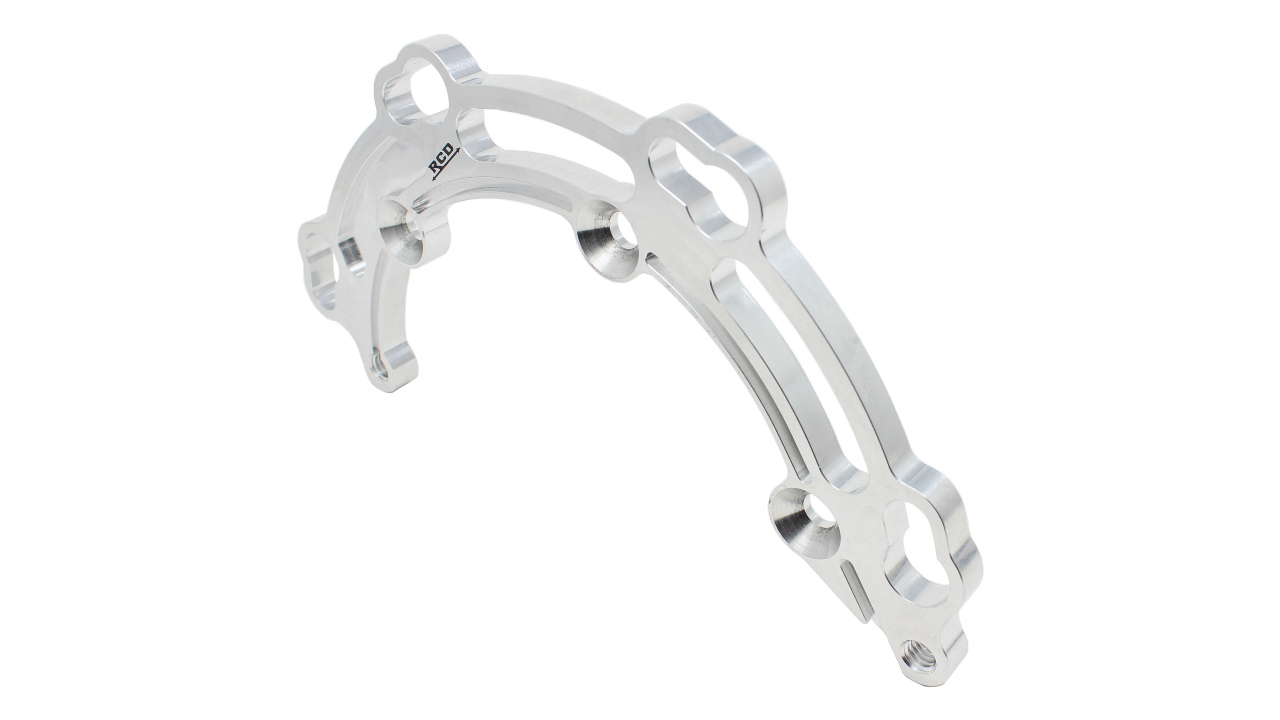

MOUNTING PATTERN SSI 3-HOLE & KOBELCO STARTER MOUNT YES HEAVY DUTY NO 64.97 103507-09 This faceplate is for a SSI/Kobelco style blower with starter mounts and our standard guard.

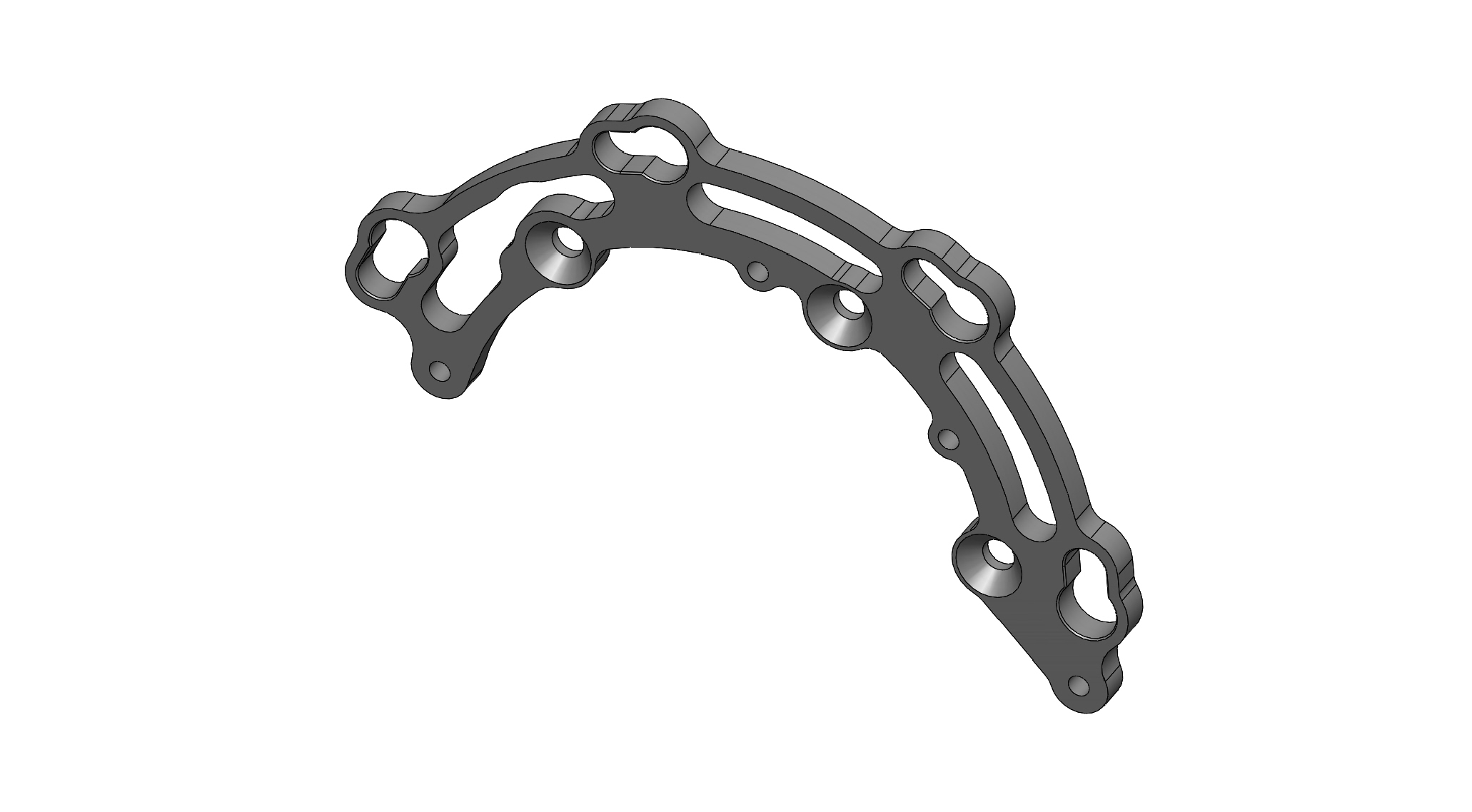

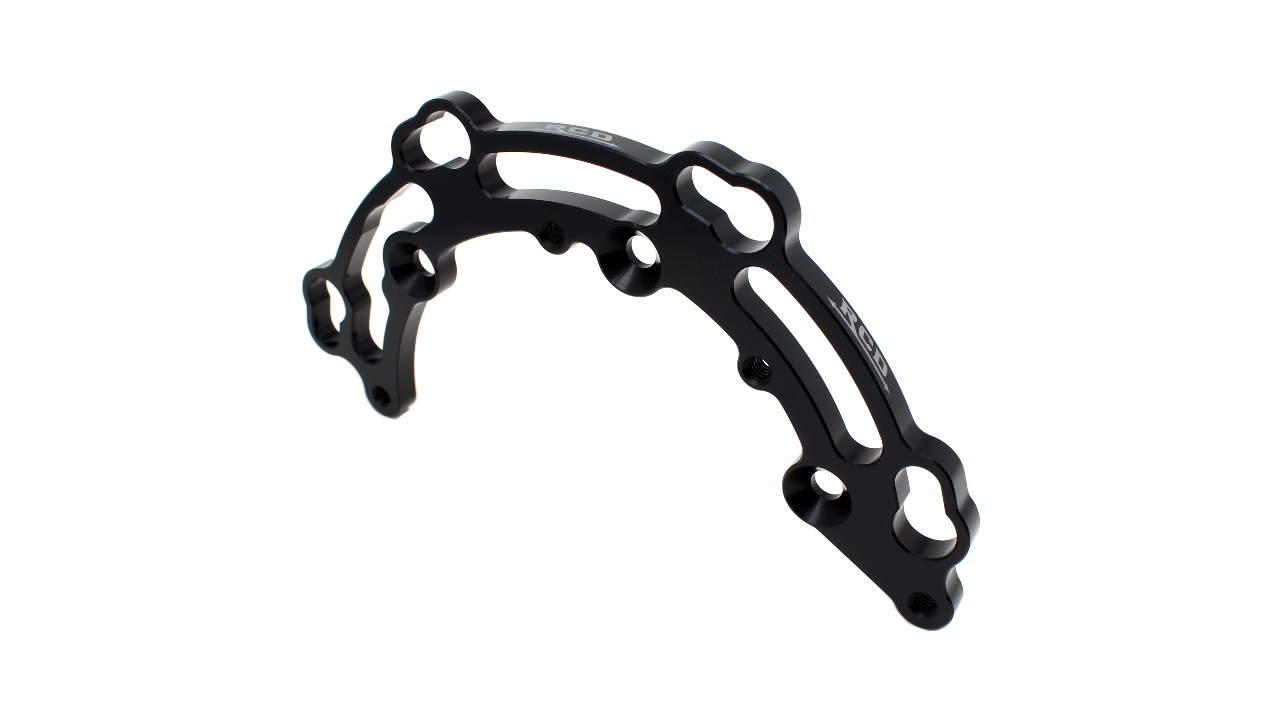

MOUNTING PATTERN SSI 3-HOLE & KOBELCO STARTER MOUNT YES HEAVY DUTY YES 77 103507-08 This faceplate is for a SSI/Kobelco style blower with starter mounts and our heavy duty guard.

FACEPLATES

All of RCD’s faceplates are machined from 3/8” thick 2024 aluminum plate with a grained finish. Several mounting patterns are available to fit your application. Black anodized finish is standard on some plates or available on request.
0
103507-0050 FACE PLATE SNOUT CLAMP DRAGSTER ASSY DWG.PDF   Download
103507-0051 FACE PLATE SNOUT CLAMP DRAGSTER ASSY DWG.PDF   Download
103507-0052 FACEPLATE SNOUT NO STARTER MOUNT ASSY DWG.PDF   Download

Specifications
