SKU:

MOUNTING

FIXED REMOVABLE

ROTATION

REVERSE STANDARD

HEAVY DUTY

NO YES

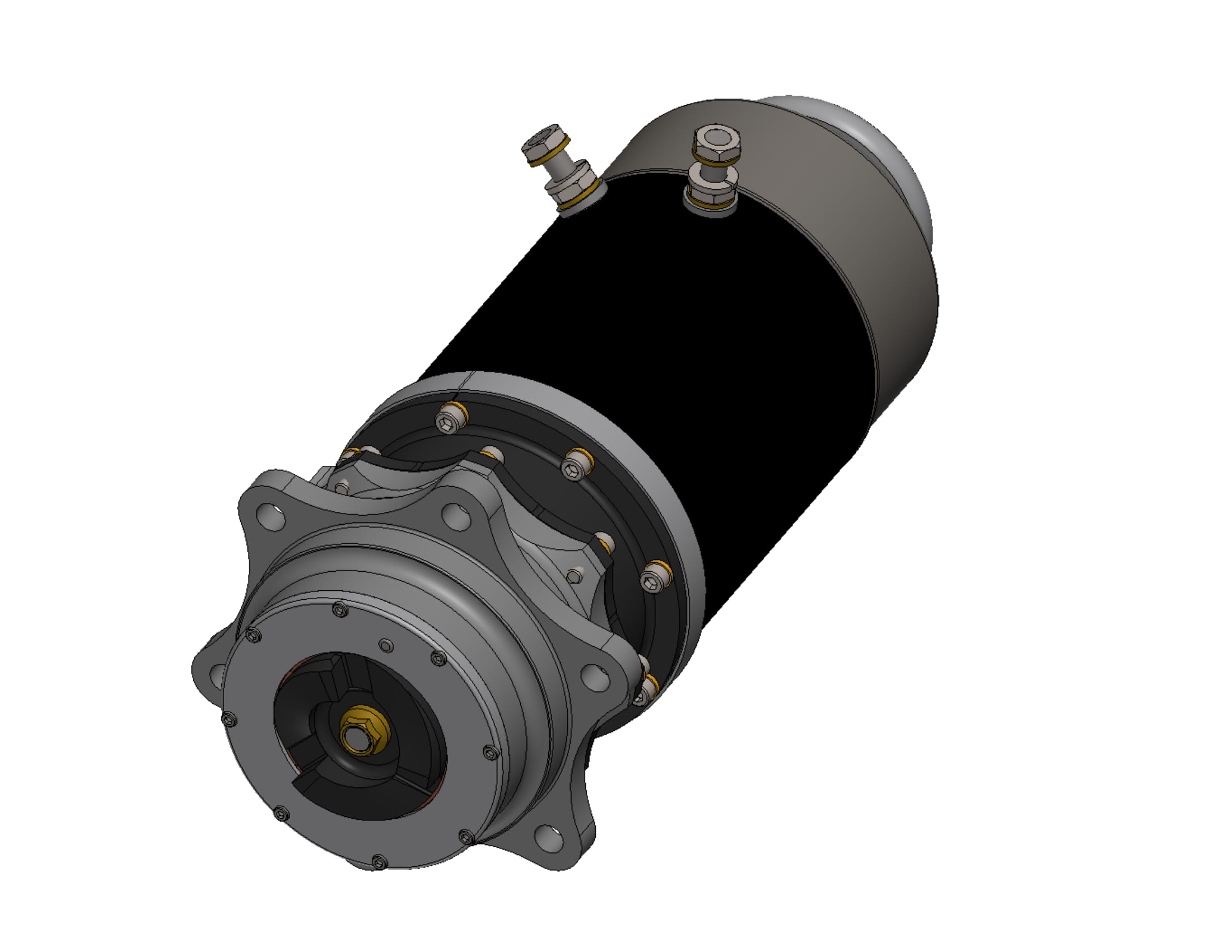

MOUNTING FIXED ROTATION REVERSE HEAVY DUTY YES 2691 101500-0086 This assembly is for fixed crankshaft mounting with reverse rotations and requires 11.25" in front of the starter plate. Standard assembly on reverse rotation starters includes a heavy duty modification on the armature.

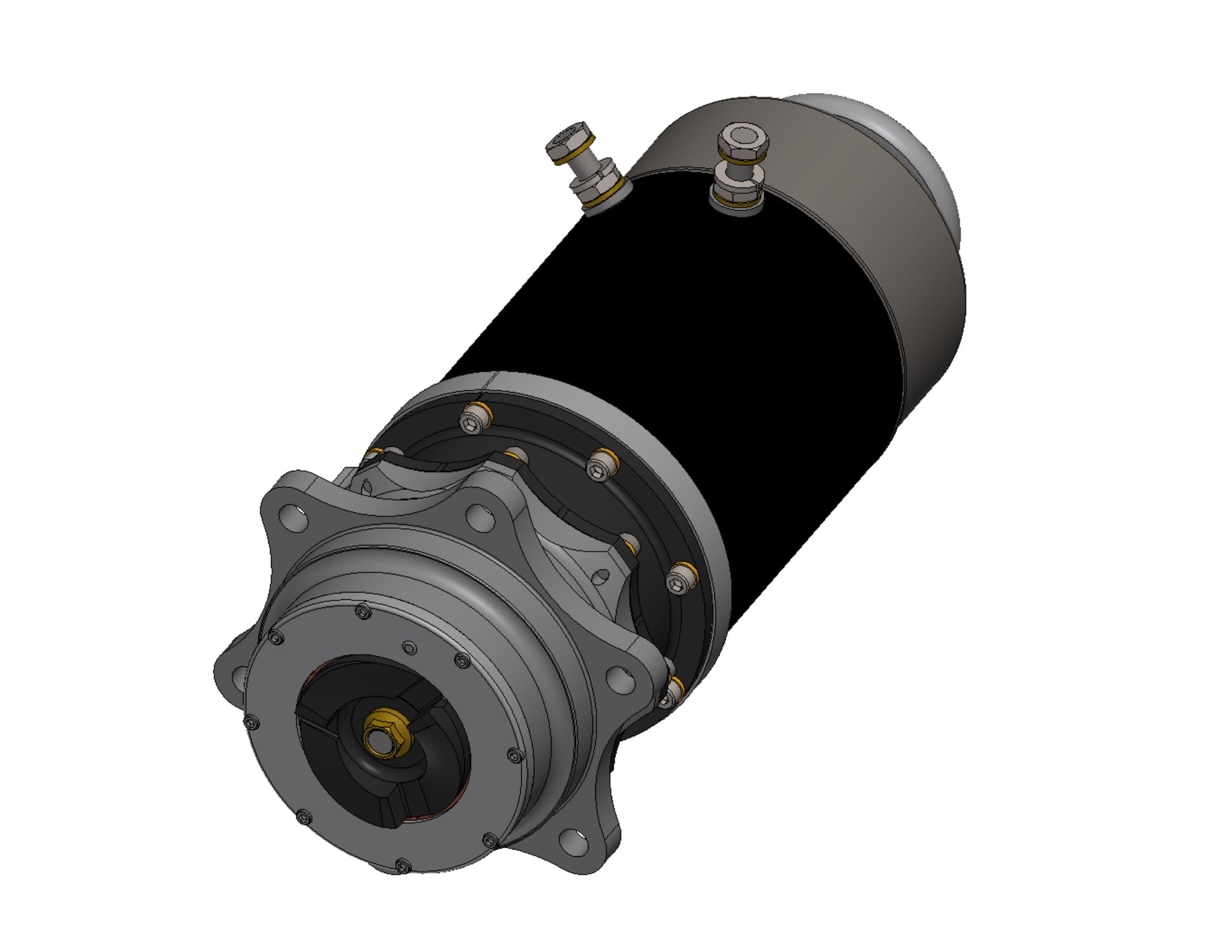

MOUNTING FIXED ROTATION STANDARD HEAVY DUTY NO 1890 101500-0085 This assembly is for fixed crankshaft mounting with standard rotation and requires 11.25" in front of the starter plate.

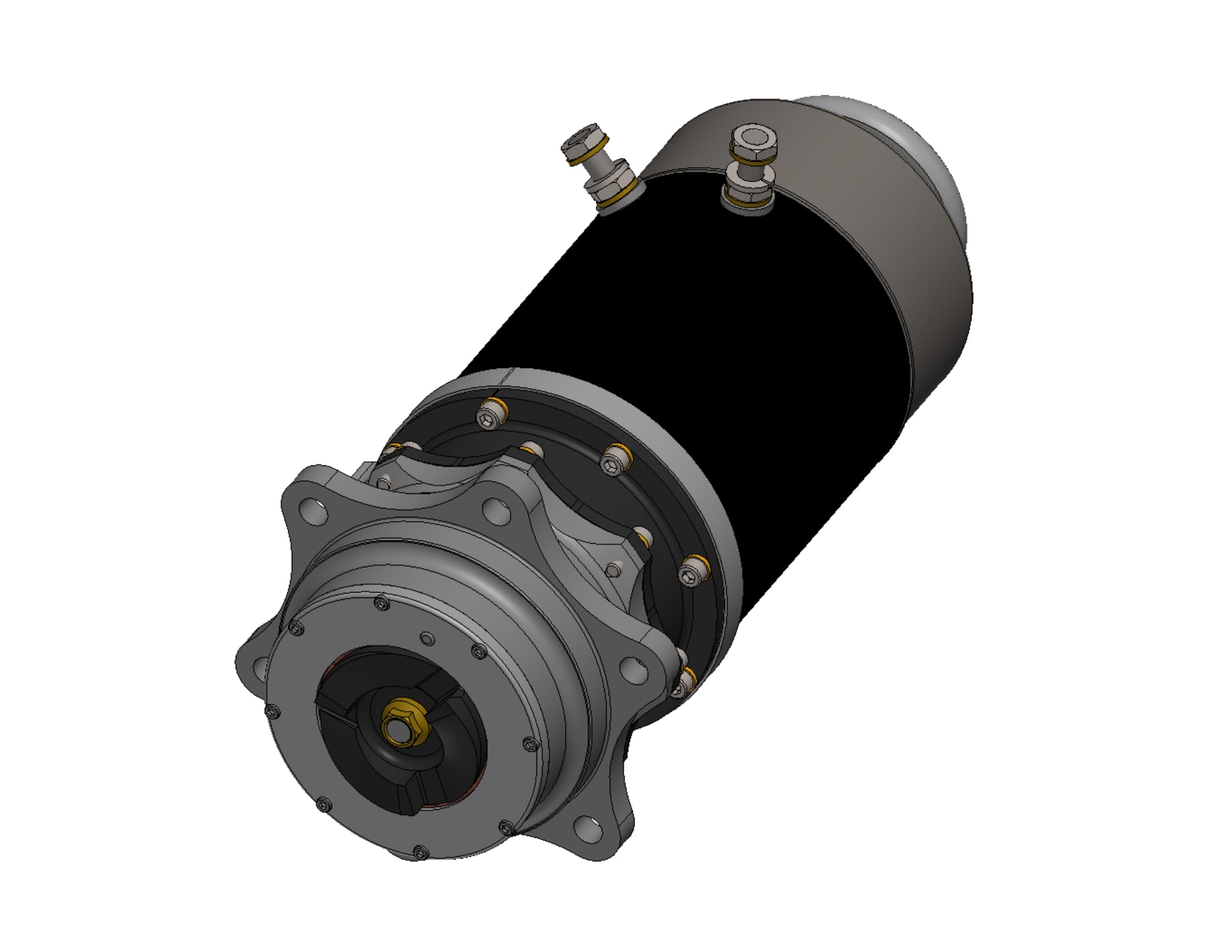

MOUNTING FIXED ROTATION STANDARD HEAVY DUTY YES 2047.5 101500-0095 This assembly is for fixed crankshaft mounting with standard rotation and requires 11.25" in front of the starter plate. It includes a heavy duty modification on the armature.

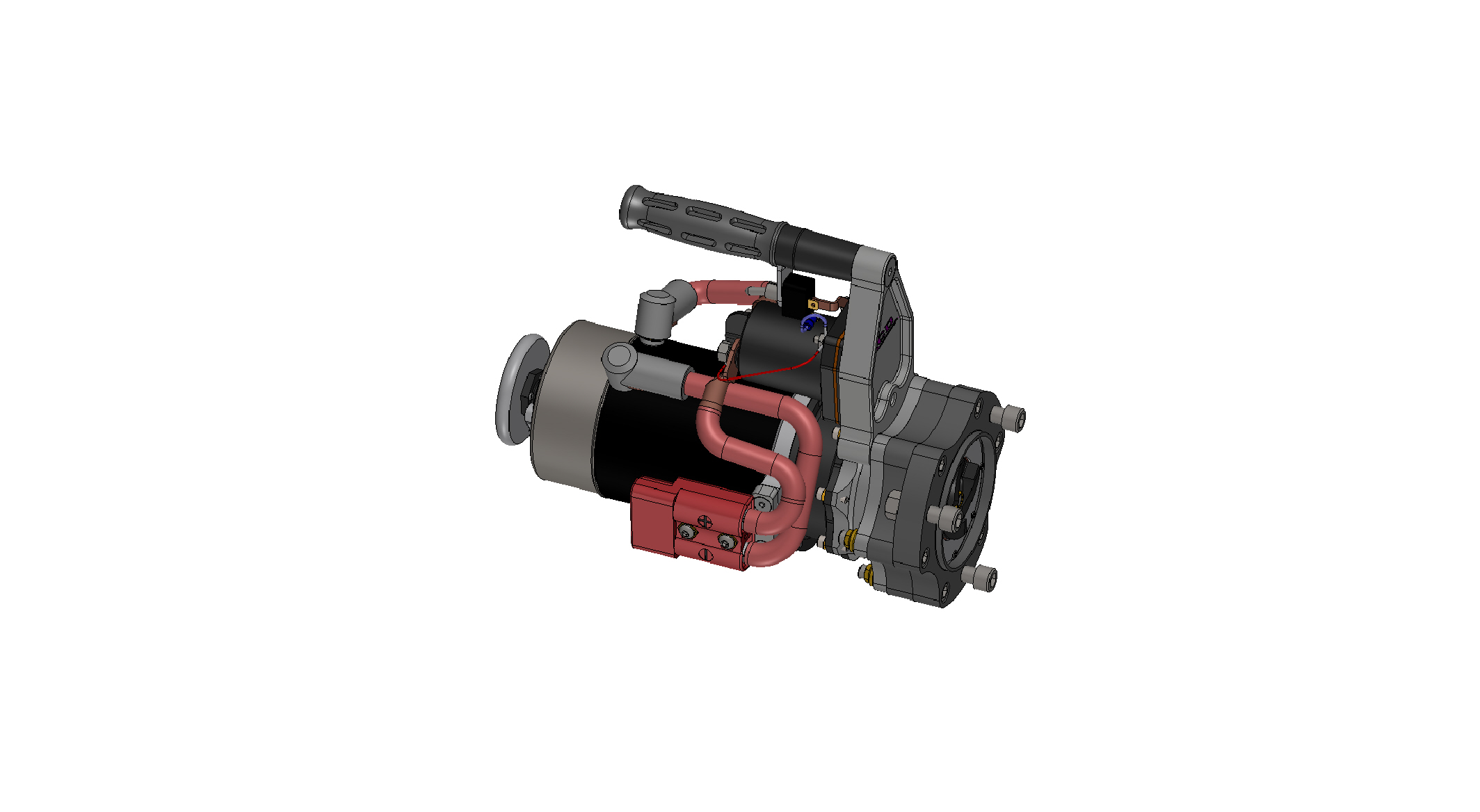

MOUNTING REMOVABLE ROTATION STANDARD HEAVY DUTY NO 2336.25 100500-0020 This assembly is for removeable crankshaft mounting and requires 13.25" in front of the starter plate. Aluminum frame and bracketry allow for easy engagement and removal. This assembly features the same electrical set up as the Blower Mount Starters.

CRANK MOUNT STARTERS

Available in fixed and removable mounting styles. These starters work in conjunction with RCD’s starter drives to provide high torque direct cranking to your high performance racing engine. All models are equipped with a three tooth starter jaw that can be manually engaged or engages when the starter switch is closed and disengages when the engine starts and over-speeds the starter.
0
100500-0020 STARTER CRANK MOUNT REMOVABLE RCD-1.PDF   Download
101500-0085 STARTER W_HANDWHEEL 6IN-RCD GEARHEAD BOM.PDF   Download
101500-0086 STARTER W_HANDWHEEL 6IN-RCD GEARHEAD LH HD BOM.PDF   Download
101500-0095 STARTER W_HANDWHEEL 6IN-RCD GEARHEAD HD BOM.PDF   Download

Specifications
