Products / ACCESSORY DRIVE ARBORS

SKU:

BEARING SUPPORT

NO YES

SPROCKETS

DOUBLE SINGLE

HEX STROKER

NO YES

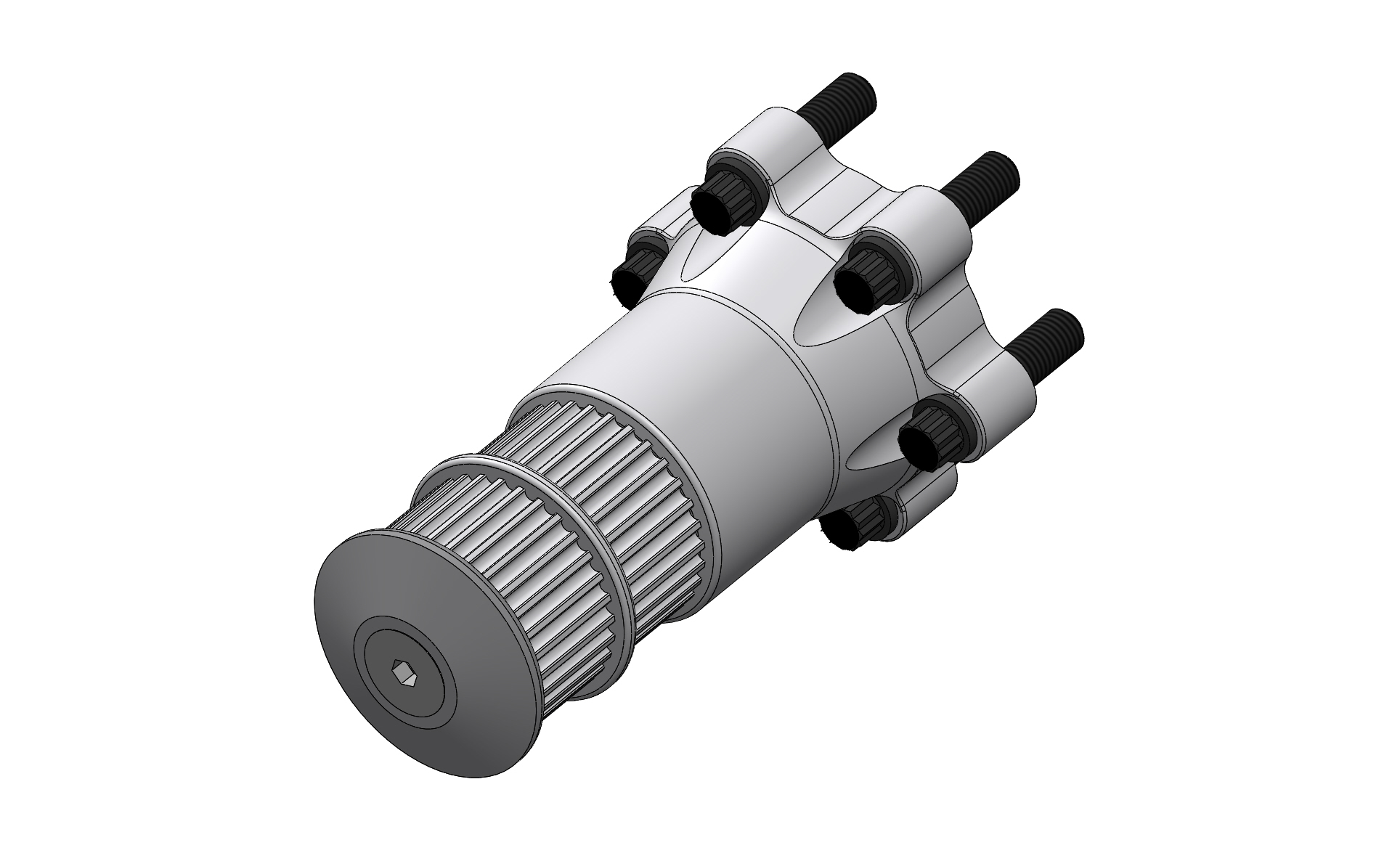

BEARING SUPPORT NO SPROCKETS DOUBLE HEX STROKER NO 214.35 300505-0008 This accessory drive arbor assembly is for an application without a RCD crank support and can drive two pulleys.

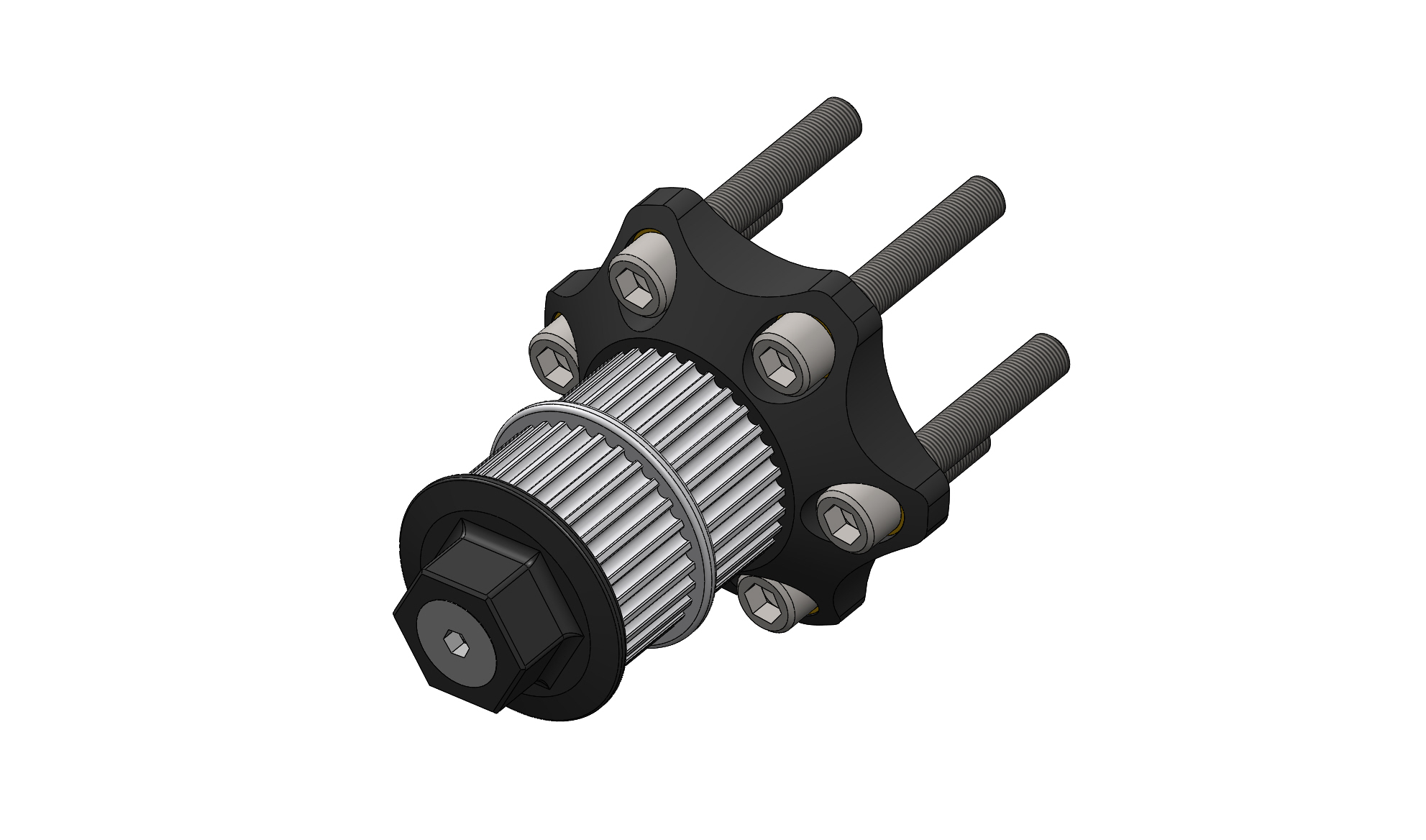

BEARING SUPPORT NO SPROCKETS DOUBLE HEX STROKER YES 294 300505-0010 This accessory drive arbor assembly is for an application without a RCD crank support and can drive two pulleys. This assembly also provides a hex on the end cap to turn the engine over by hand.
BEARING SUPPORT NO SPROCKETS SINGLE HEX STROKER NO 188.03 300505-0006 This accessory drive arbor assembly is for an application without a RCD crank support and can drive one pulley.

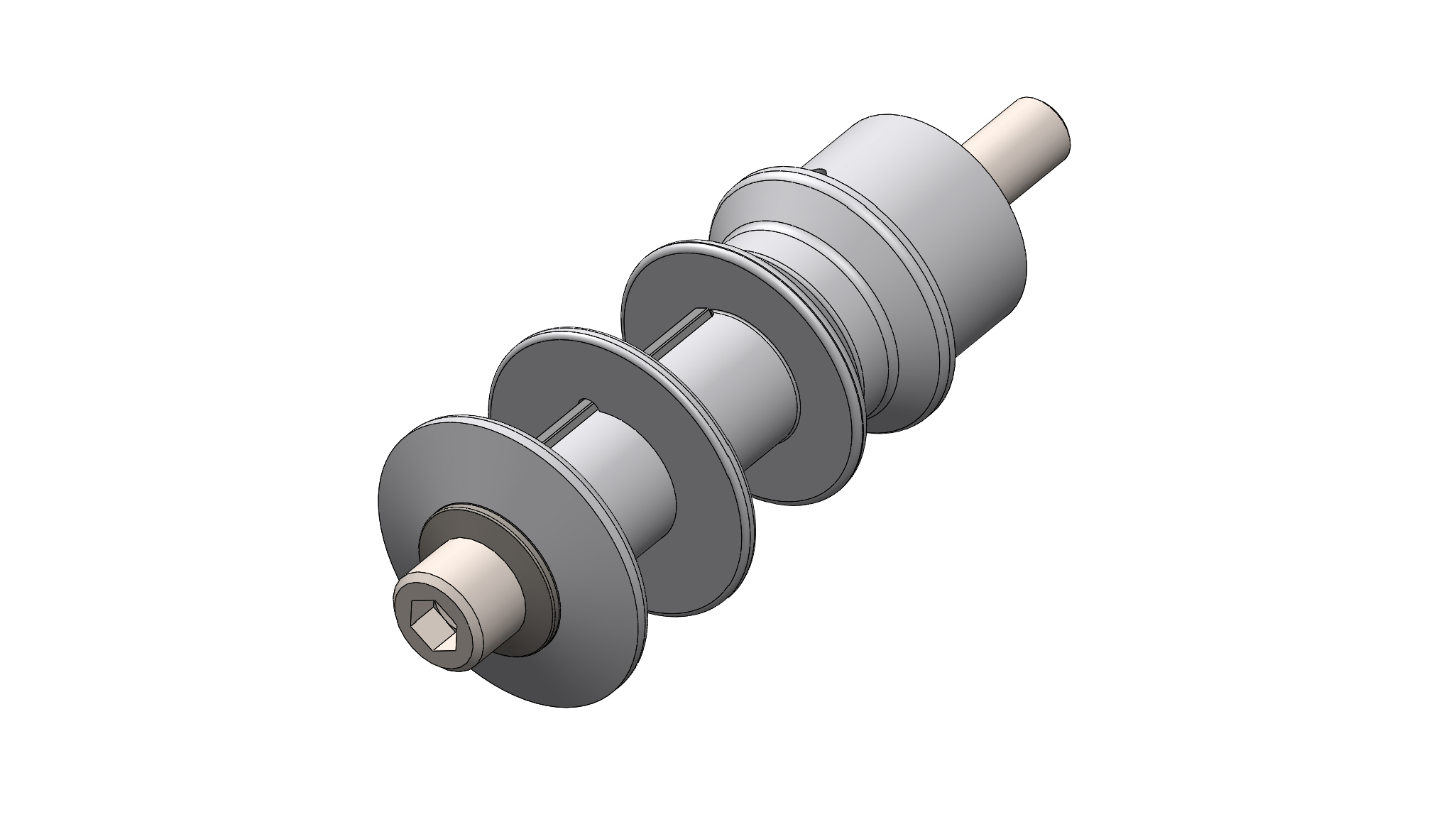

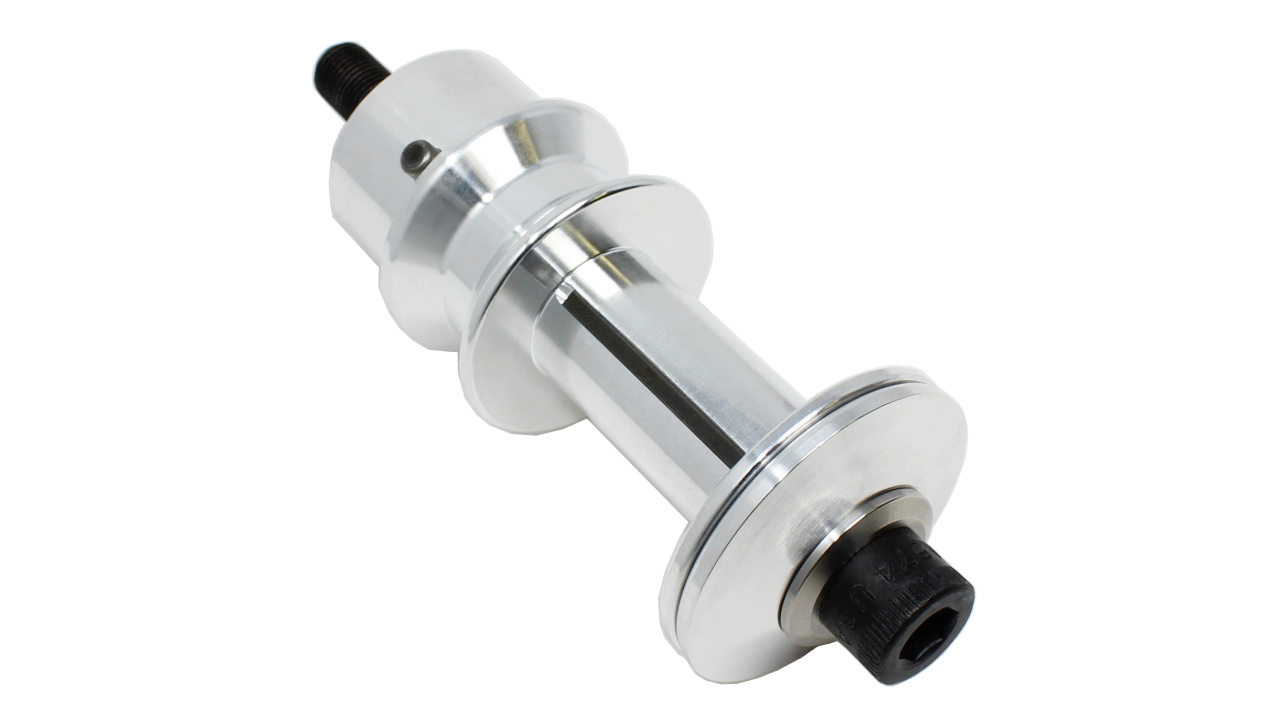

BEARING SUPPORT YES SPROCKETS DOUBLE HEX STROKER NO 141.15 300505-0003 This accessory drive arbor assembly is for an application with a RCD crank support and can drive two pulleys.

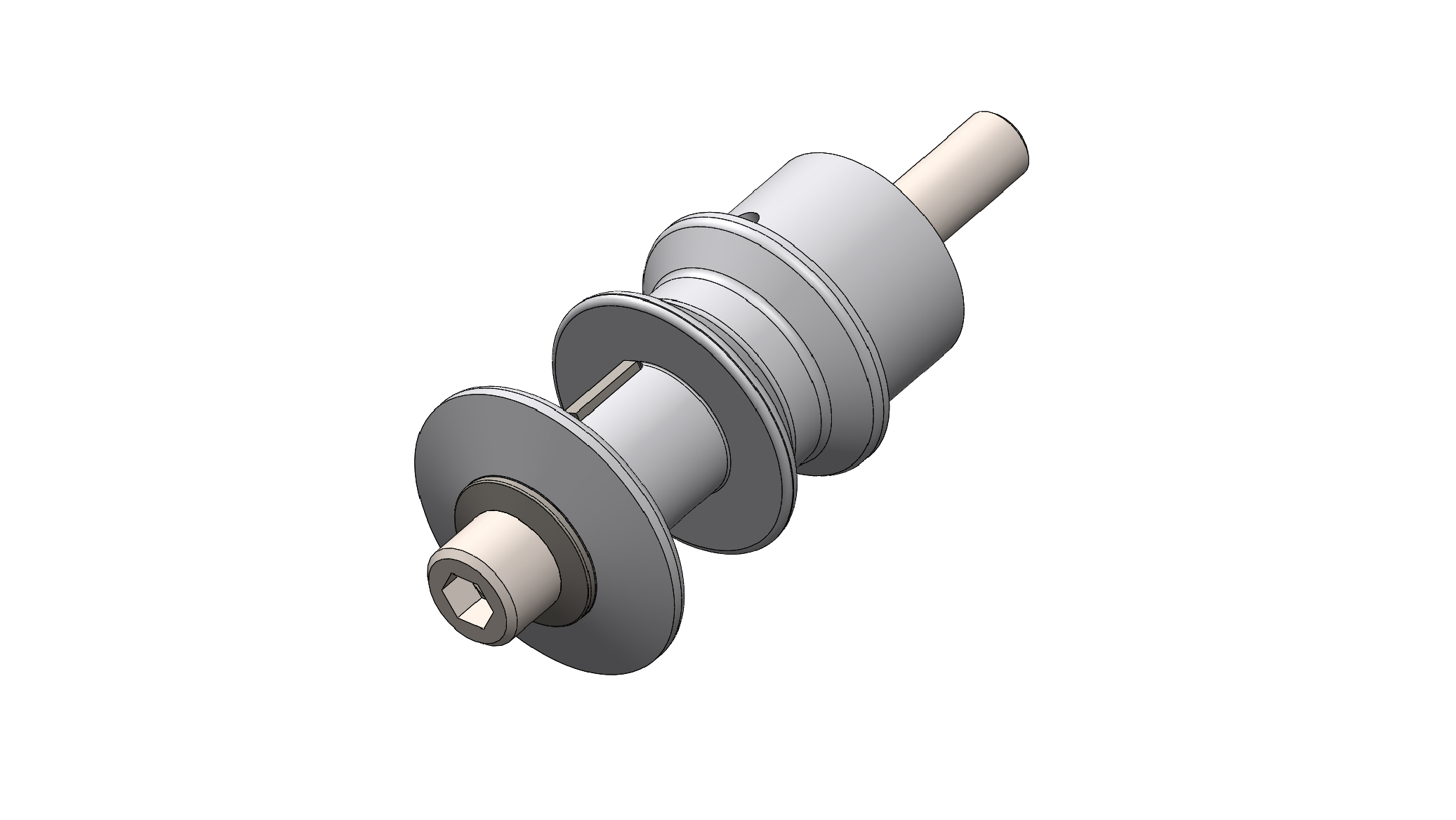

BEARING SUPPORT YES SPROCKETS SINGLE HEX STROKER NO 122.06 300505-0001 This accessory drive arbor assembly is for an application with a RCD crank support and can drive one pulley.

ACCESSORY DRIVE ARBORS

For blown applications with or without a crank support, RCD offers drive arbors with single or double drive pulleys. These arbors are made from 2024 aluminum bar stock, the 1.0” diameter boss is provided with an 1/8” keyway to drive the accessory pulleys. Arbors for applications without a crank support have six evenly spaced 3/8” holes to bolt directly crank hub through the blower pulley. Arbors for applications with a crank support have two 1/4" dowels to fit in the slots of the crank hub, they are attached with a 1/2" bolt to the end of the crank bolt. Some assemblies pictured with pulleys, however pulley’s are sold separately.
0
300505-0001 ACC DRIVE HUB WITH 1IN ARBOR BOM.PDF   Download
300505-0003 ACC DRIVE HUB DBL W-1IN ARBOR BOM.PDF   Download
300505-0006 ACC DRIVE HUB W-1IN ARBOR BOM.PDF   Download
300505-0008 ACC DRIVE DOUBLE PULLEY WITH 1 INCH ARBOR BOM.PDF   Download
300505-0010 ACC DRIVE HUB DBL 1 INCH ARBOR OIL PUMP MANDRAL BOM.PDF   Download
