SKU:

MOUNTING PATTERN

ROOTS SCREW BLOWER SNOUT MOUNTED SSI 3 HOLE & KOBELCO

STARTER MOUNT

NO YES

HEAVY DUTY

NO YES

PROFILE

DRAGSTER FUNNY CAR STANDARD

MOUNTING PATTERN ROOTS STARTER MOUNT NO HEAVY DUTY NO 182.81 103507-0005 This top guard assembly mounts to a Roots style blower and is equipped with our standard guard.

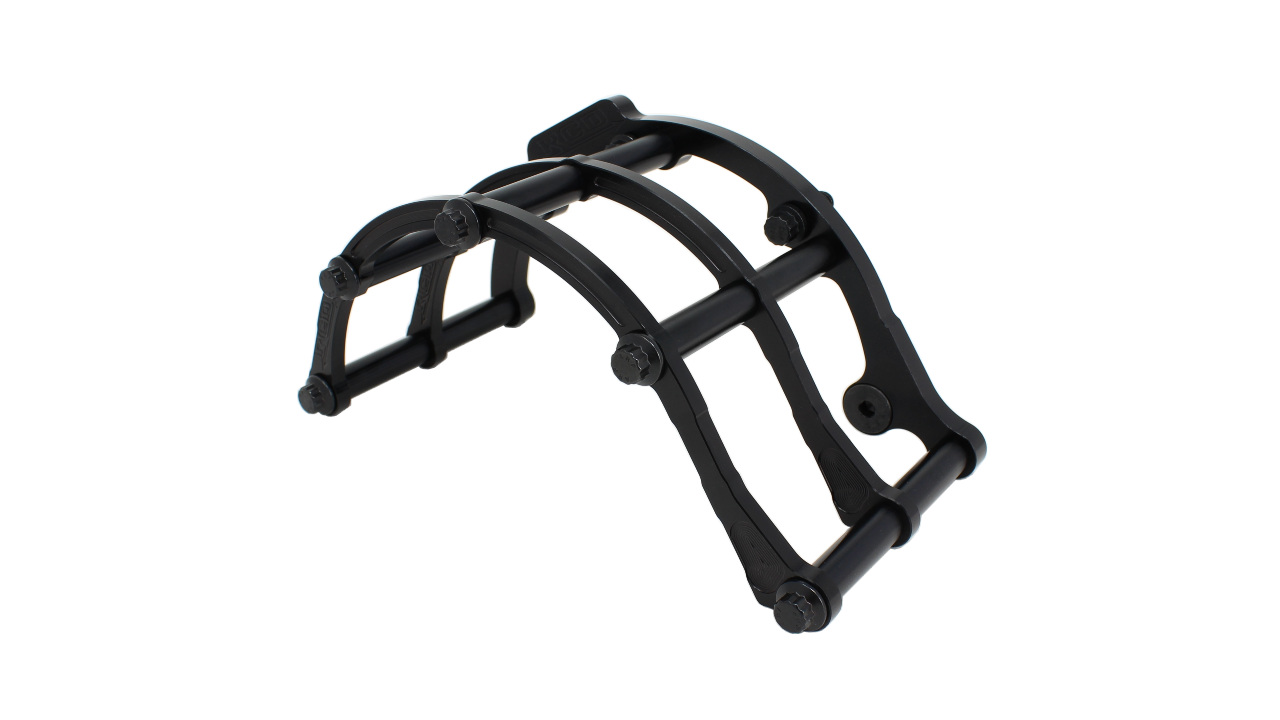

MOUNTING PATTERN ROOTS STARTER MOUNT NO HEAVY DUTY YES 236.25 103507-0003 This top guard assembly mounts to a Roots style blower and is equipped with our heavy duty guard.

MOUNTING PATTERN ROOTS STARTER MOUNT YES HEAVY DUTY NO 195.25 103507-0004 This top guard assembly mounts to a Roots style blower and is equipped with a starter faceplate and our standard guard.

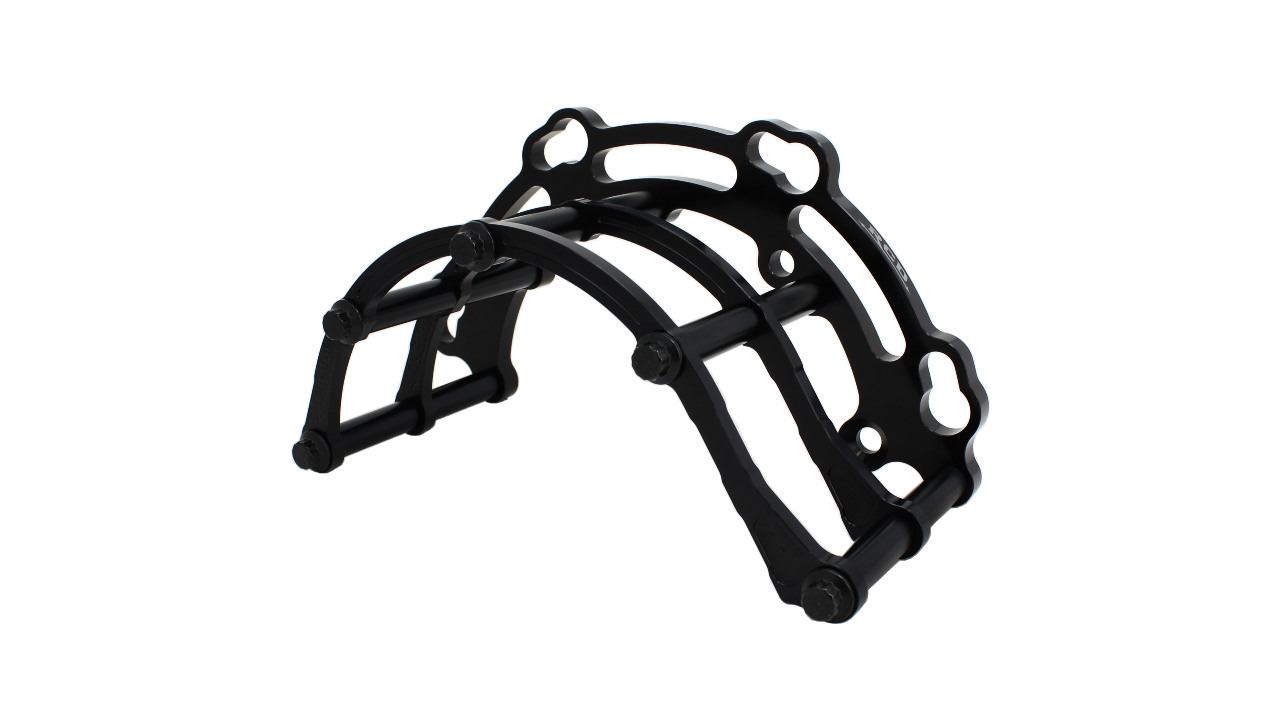

MOUNTING PATTERN ROOTS STARTER MOUNT YES HEAVY DUTY YES 236.25 103507-0002 This top guard assembly mounts to a Roots style blower and is equipped with a starter faceplate and our heavy duty guard.

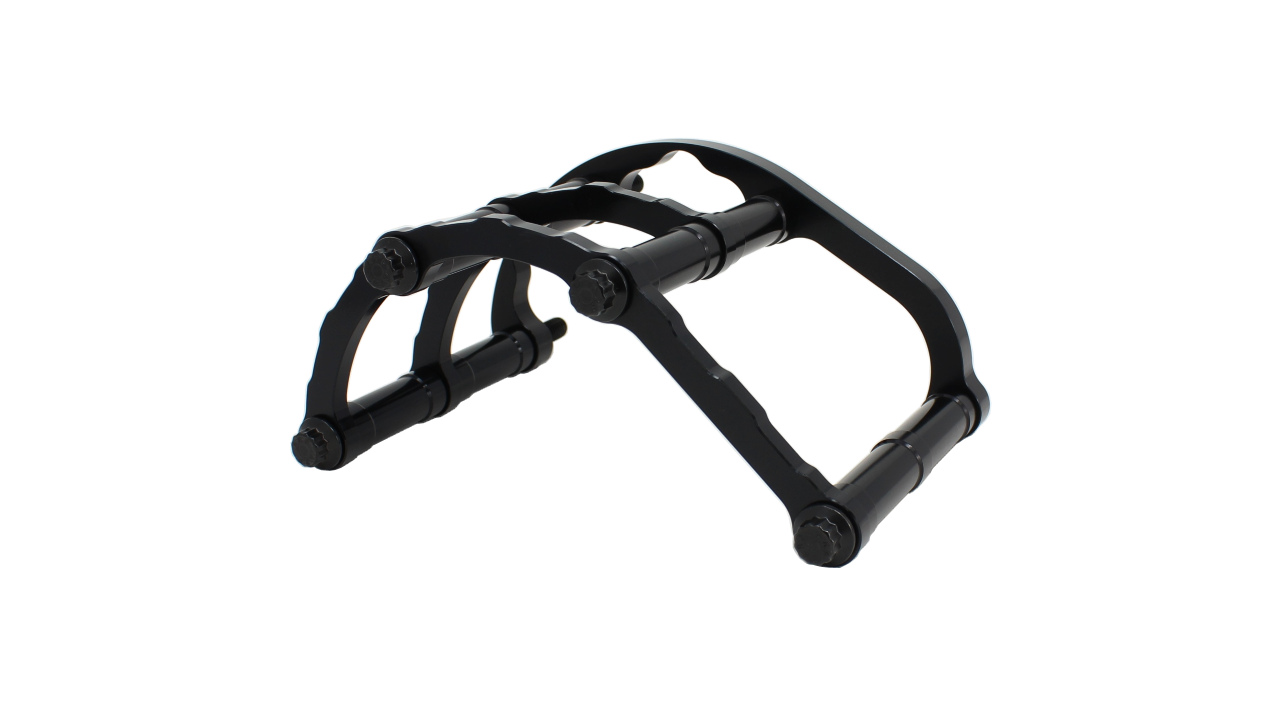

MOUNTING PATTERN SCREW BLOWER STARTER MOUNT NO HEAVY DUTY YES 179.93 103507-0060 This top guard assembly mounts to a Screw style blower and is equipped with our heavy duty guard.

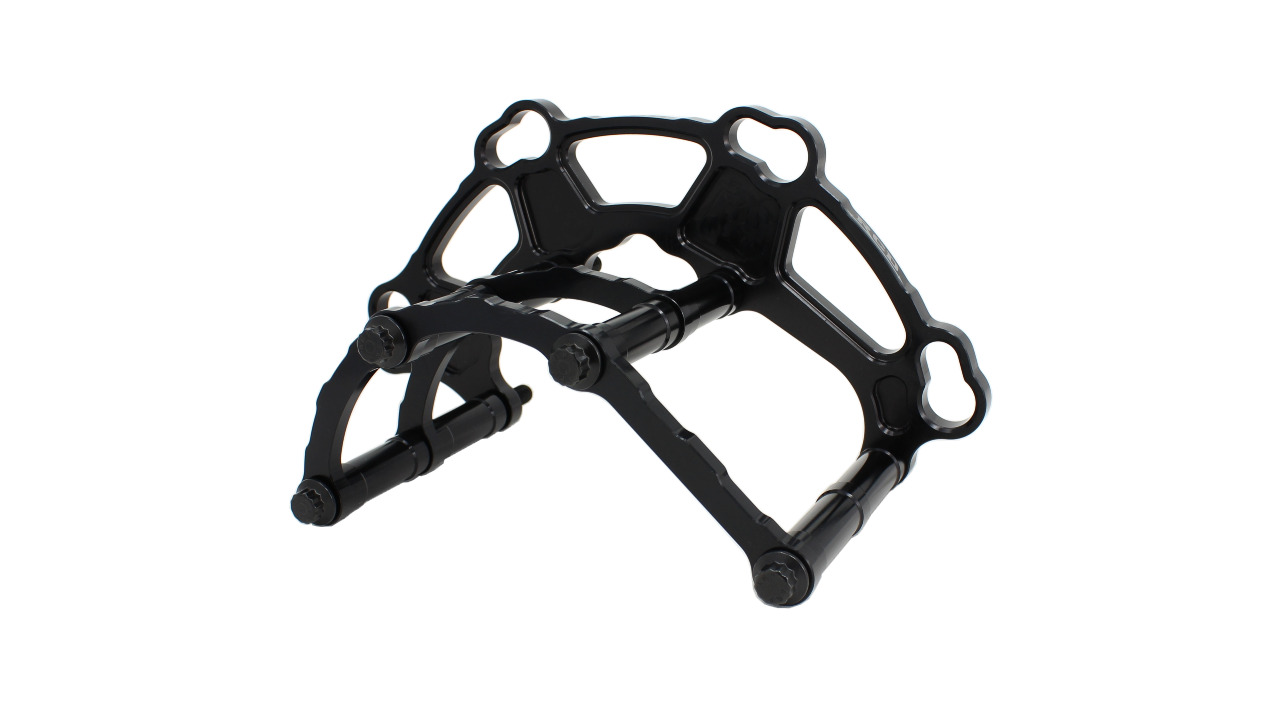

MOUNTING PATTERN SCREW BLOWER STARTER MOUNT YES HEAVY DUTY YES 221.54 103507-0062 This top guard assembly mounts to a Screw style blower and is equipped with built in starter faceplate and our heavy duty guard.

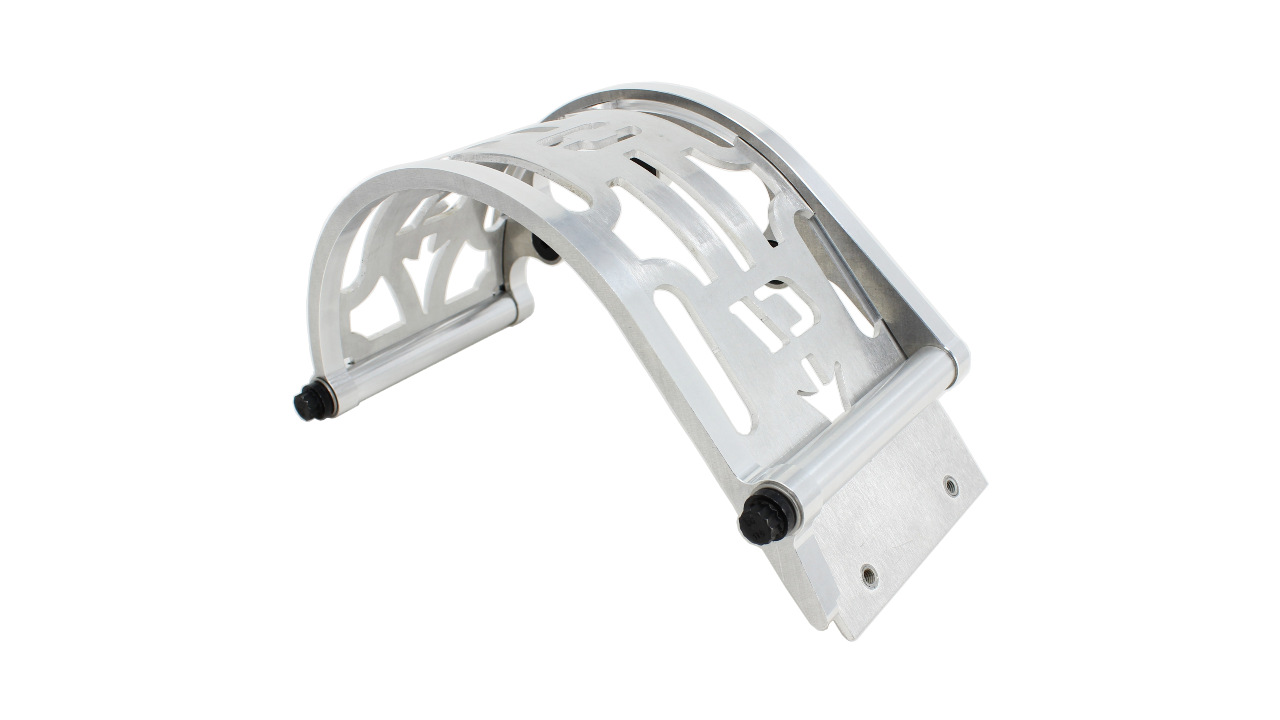

MOUNTING PATTERN SNOUT MOUNTED STARTER MOUNT NO HEAVY DUTY NO PROFILE STANDARD 199.23 103507-0017 This top guard assembly clamps to the blower snout and is equipped with our standard guard. NOTE: this guard is made to fit an RCD blower snout, other snouts may require a sleeve.

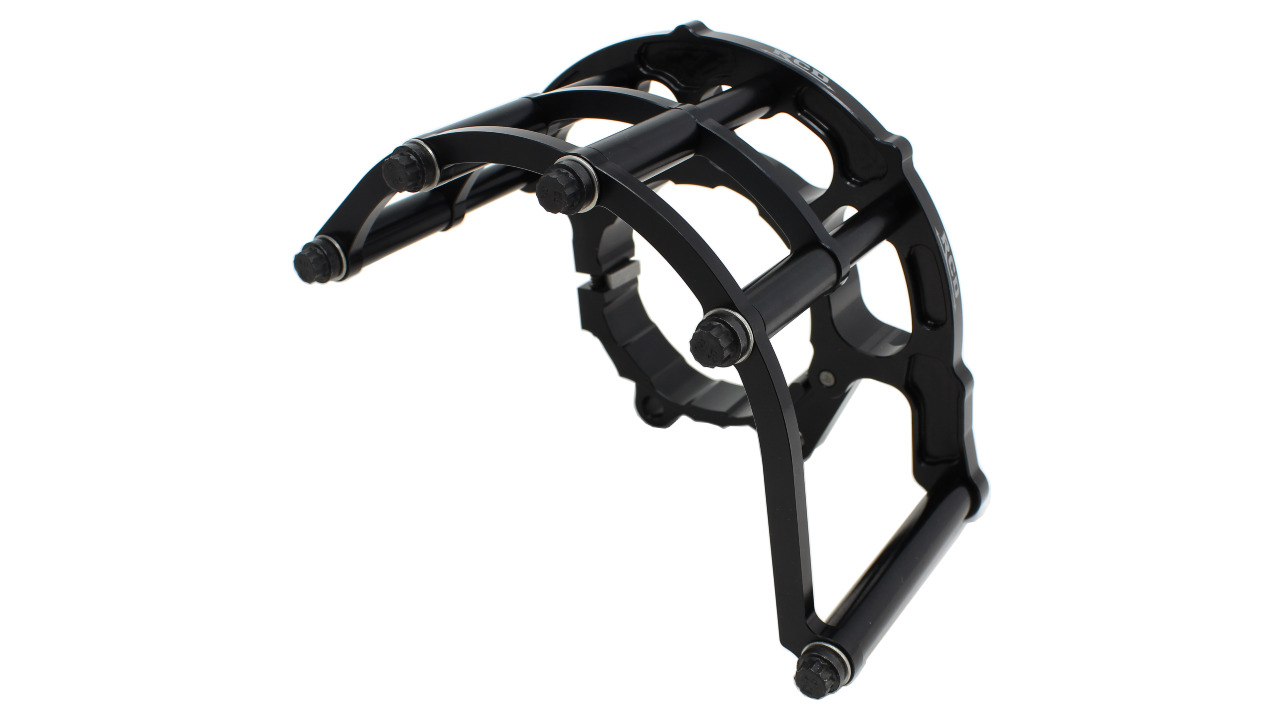

MOUNTING PATTERN SNOUT MOUNTED STARTER MOUNT NO HEAVY DUTY YES PROFILE DRAGSTER 424.05 103507-0037 This top guard assembly clamps to the blower snout and is equipped with our heavy-duty guard. NOTE: this guard is made to fit an RCD blower snout, other snouts may require a sleeve.

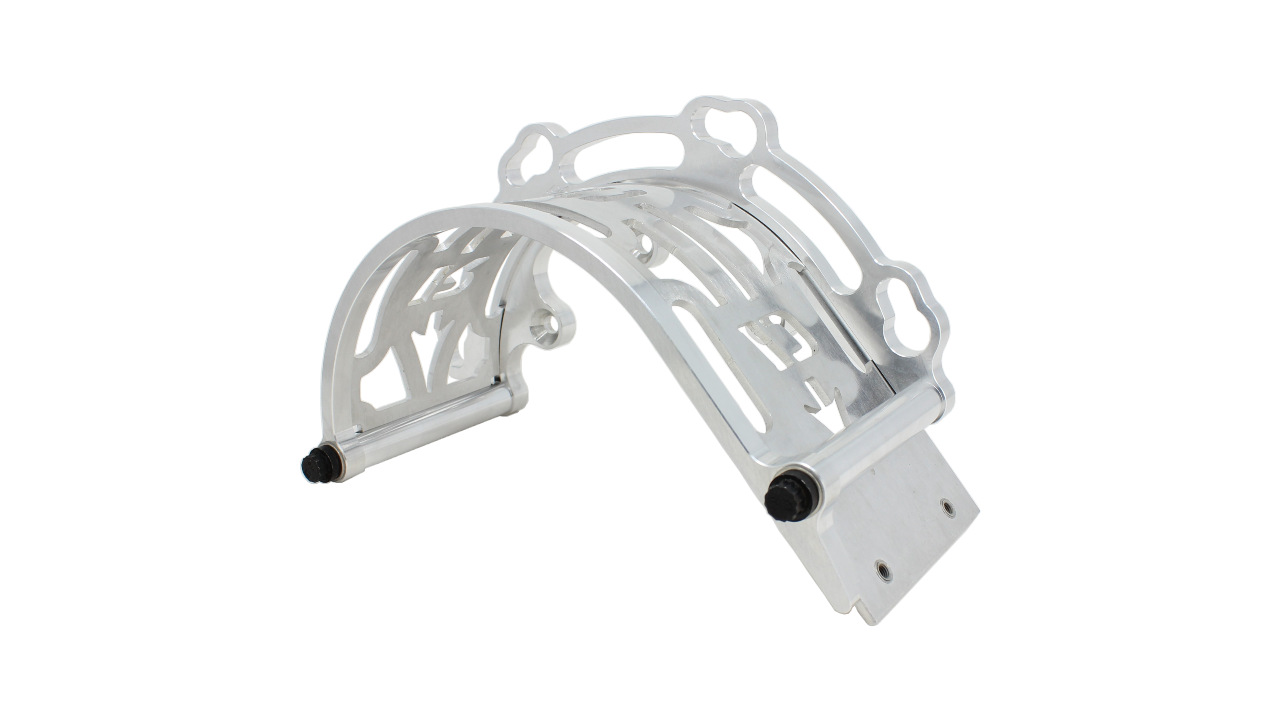

MOUNTING PATTERN SNOUT MOUNTED STARTER MOUNT YES HEAVY DUTY NO PROFILE STANDARD 205.37 103507-0018 This top guard assembly clamps to the blower snout and is equipped with a starter faceplate and our standard guard. NOTE: this guard is made to fit an RCD blower snout, other snouts may require a sleeve.

MOUNTING PATTERN SNOUT MOUNTED STARTER MOUNT YES HEAVY DUTY YES PROFILE DRAGSTER 449.82 103507-0032 This top guard assembly clamps to the blower snout and is equipped with a built-in starter faceplate and our heavy-duty guard. NOTE: this guard is made to fit an RCD blower snout, other snouts may require a sleeve.

MOUNTING PATTERN SNOUT MOUNTED STARTER MOUNT YES HEAVY DUTY YES PROFILE FUNNY CAR 449.82 103507-0030 This top guard assembly clamps to the blower snout and is equipped with a low-profile starter faceplate perfect for Funny Cars and our heavy-duty guard. NOTE: this guard is made to fit an RCD blower snout, other snouts may require a sleeve.

MOUNTING PATTERN SSI 3 HOLE & KOBELCO STARTER MOUNT NO HEAVY DUTY NO 192.01 103507-0010 This top guard assembly mounts to an SSI/Kobelco style blower and is equipped with our standard guard.

MOUNTING PATTERN SSI 3 HOLE & KOBELCO STARTER MOUNT YES HEAVY DUTY NO 192.01 103507-0009 This top guard assembly mounts to an SSI/Kobelco style blower and is equipped with a starter faceplate and our standard guard.

MOUNTING PATTERN SSI 3 HOLE & KOBELCO STARTER MOUNT YES HEAVY DUTY YES 236.25 103507-0008 This top guard assembly mounts to an SSI/Kobelco style blower and is equipped with a starter faceplate and our heavy duty guard.

TOP GUARD ASSEMBLIES

BACK

The top guard covers 150 degrees of the top blower pulley. This guard is incorporated into the starter faceplate and allows for the same starter lock-on as before. These assemblies now are available with a heavy-duty guard consisting of 5/16” bolts and .600” diameter aluminum tubes attached to 1/4" thick stiffeners.

103507-0002 W-STARTER HEAVY DUTY ROOTS BELT GUARD DWG.PDF		Download
103507-0003 NO STARTER HEAVY DUTY ROOTS BELT GUARD DWG.PDF		Download
103507-0004 BLOWER BELT GUARD W-STARTER STD ROOTS DWG.PDF		Download
103507-0005 BLOWER BELT GUARD STD ROOTS DWG.PDF		Download
103507-0008 3 HOLE SSI BELT GUARD HEAVY DUTY WITH STARTER DWG.PDF		Download
103507-0009 BLOWER BELT GUARD W-STARTER SSI - KOBELCO DWG.PDF		Download
103507-0010 BLOWER BELT GUARD SSI 3 HOLE - KOBELCO DWG.PDF		Download
103507-0017 BLOWER BELT GUARD SNOUT MOUNTED DWG.PDF		Download
103507-0018 BLOWER BELT W-STARTER SNOUT MOUNTED.PDF		Download
103507-0030 BLOWER BELTGUARD HEAVY DUTY FUNNYCAR DWG.PDF		Download
103507-0032 BLOWER BELTGUARD HEAVY DUTY DRAGSTER DWG.PDF		Download
103507-0037 BLOWER BELTGUARD HEAVY DUTY SNOUT MOUNT NO STARTER DWG.PDF		Download
103507-0060 BLOWER BELTGUARD SCREW BLOWER DWG.PDF		Download
103507-0062 BLOWER BELTGUARD W_STARTER SCREW BLOWER DWG.PDF		Download
