SHAFT LENGTH

LONG SHORT

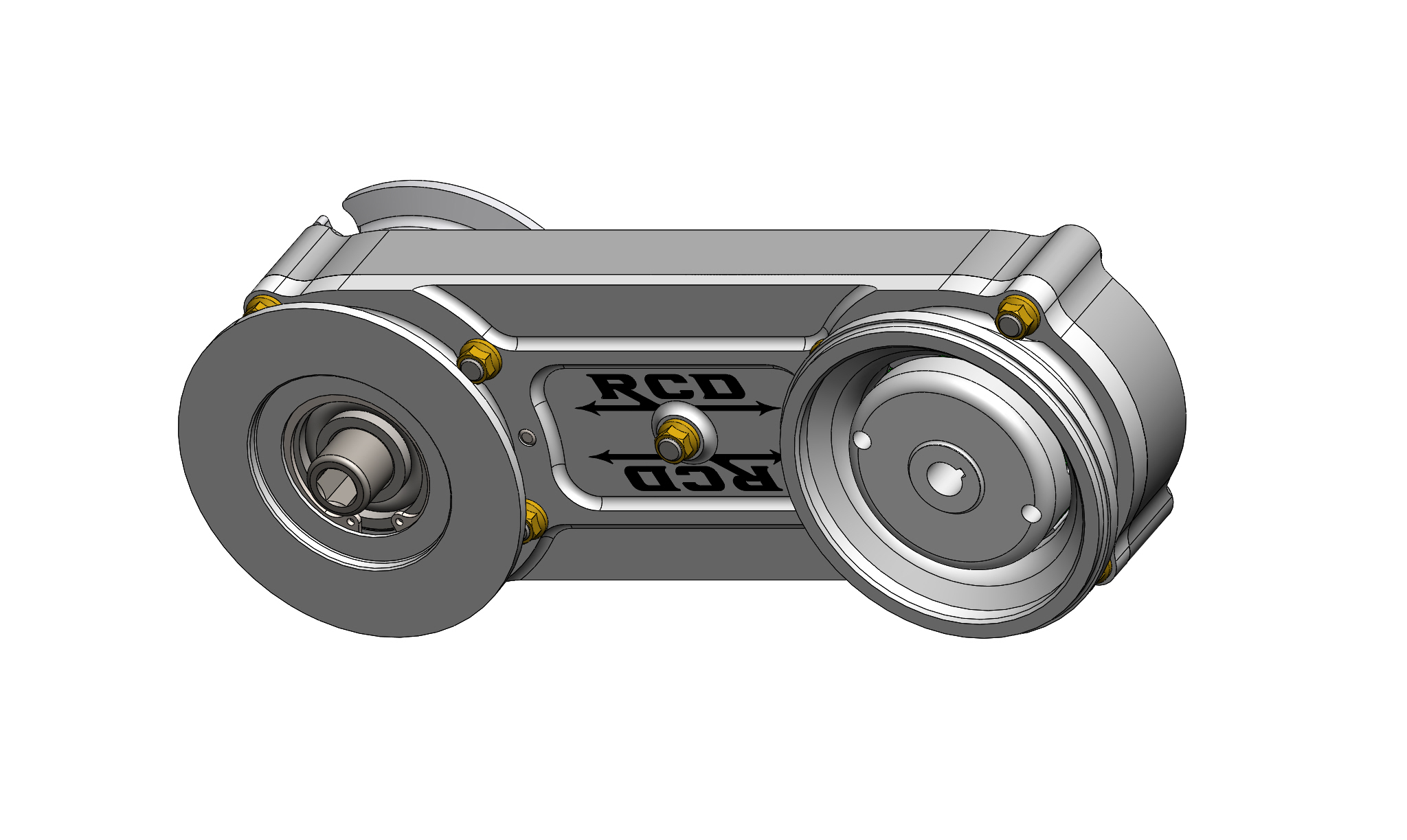

SHAFT LENGTH LONG 1152.67 302000-0005 This offset magneto drive has a long 3.4" drive shaft.

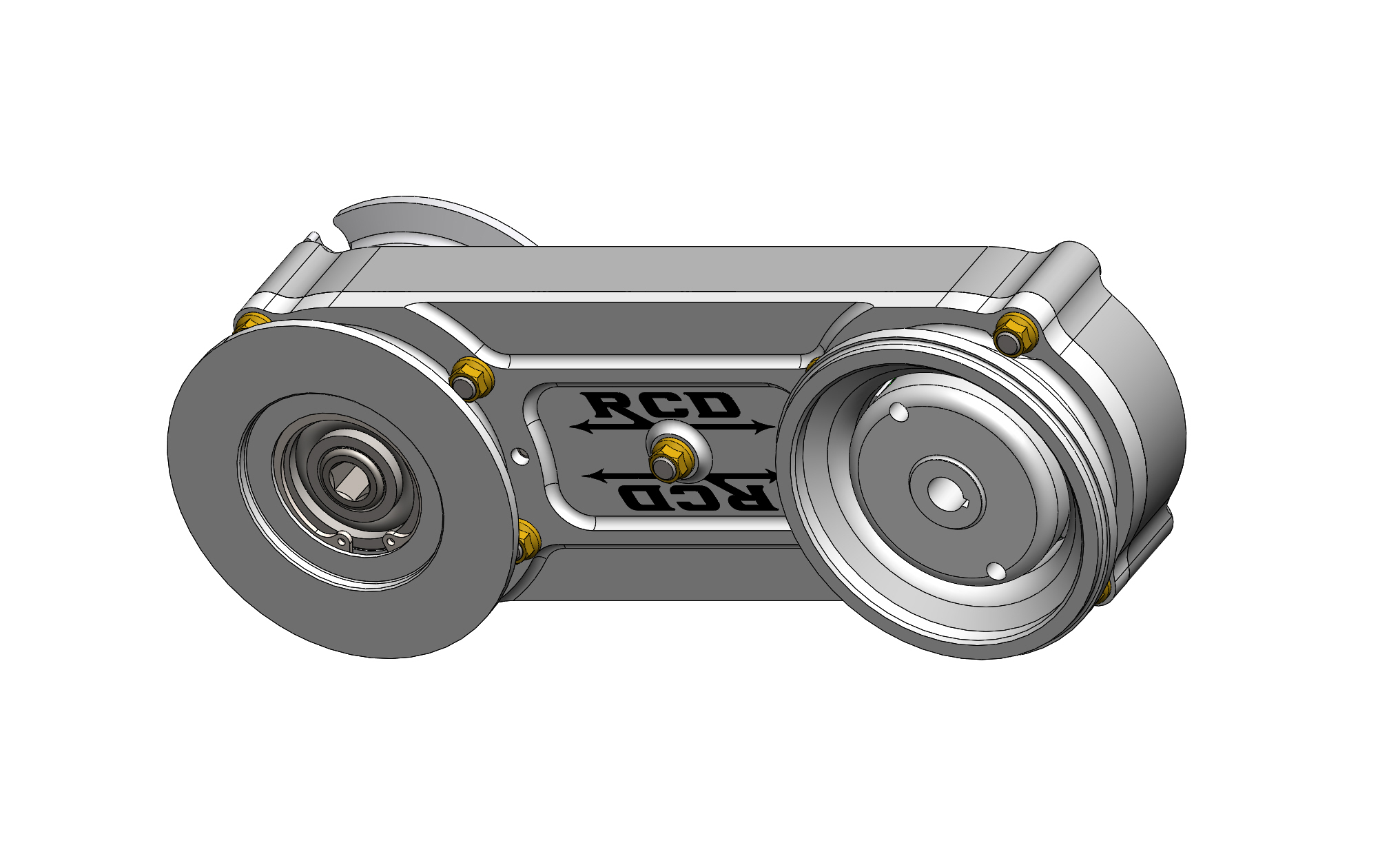

SHAFT LENGTH SHORT 1152.67 302000-0003 This offset magneto drive has a short 3.0" drive shaft.

OFFSET MAGNETO DRIVES

Similar in construction to the dual magneto drive, this drive clamps to an RCD fuel pump extension, extending the fuel pump out 2.45". The magneto drive is offset 6.60" parallel to the fuel pump drive and could be configured to run a RCD dry sump oil pump. A 3/8-16 tapped hole is provided on the back side of the offset drive to allow for bracing of the drive.
0
302000-0003 OFFSET MAGNETO DRIVE SHORT SHAFT BOM.PDF   Download
302000-0005 OFFSET MAGNETO DRIVE LONG SHAFT BOM.PDF   Download
