SKU:

BLOWER TYPE

ROOTS SCREW

LENGTH

10.0" 8.0" 6.0" 2.5"

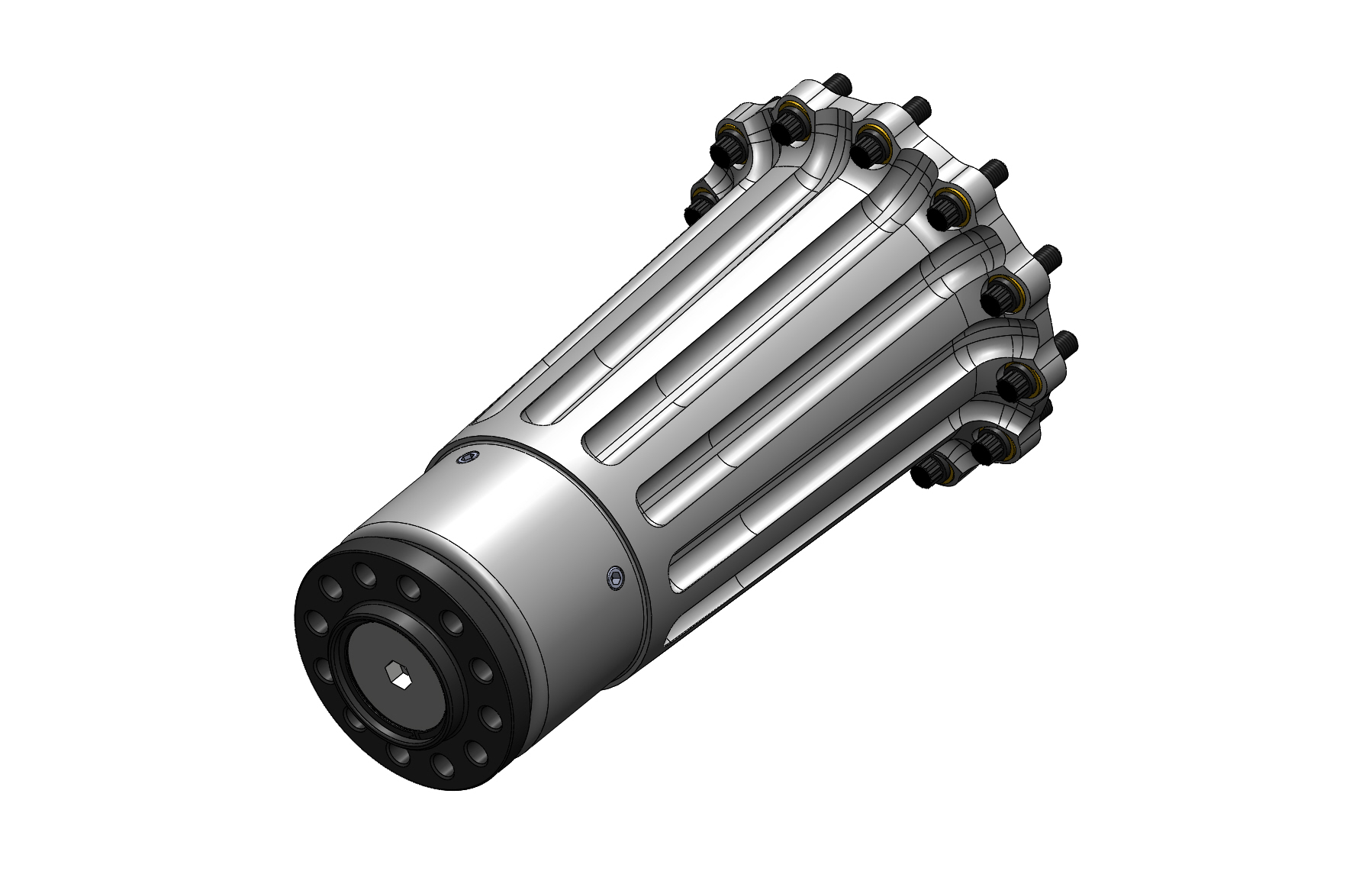

BLOWER TYPE ROOTS LENGTH 10.0" BLOWER PULLEY TYPE CENTER FLANGE BOLTS 1089.69 157000-0065 This roots style blower snout spaces the blower pulley out 10" from the blower case. The housing has been modified to accept a center flange RCD blower pulley.

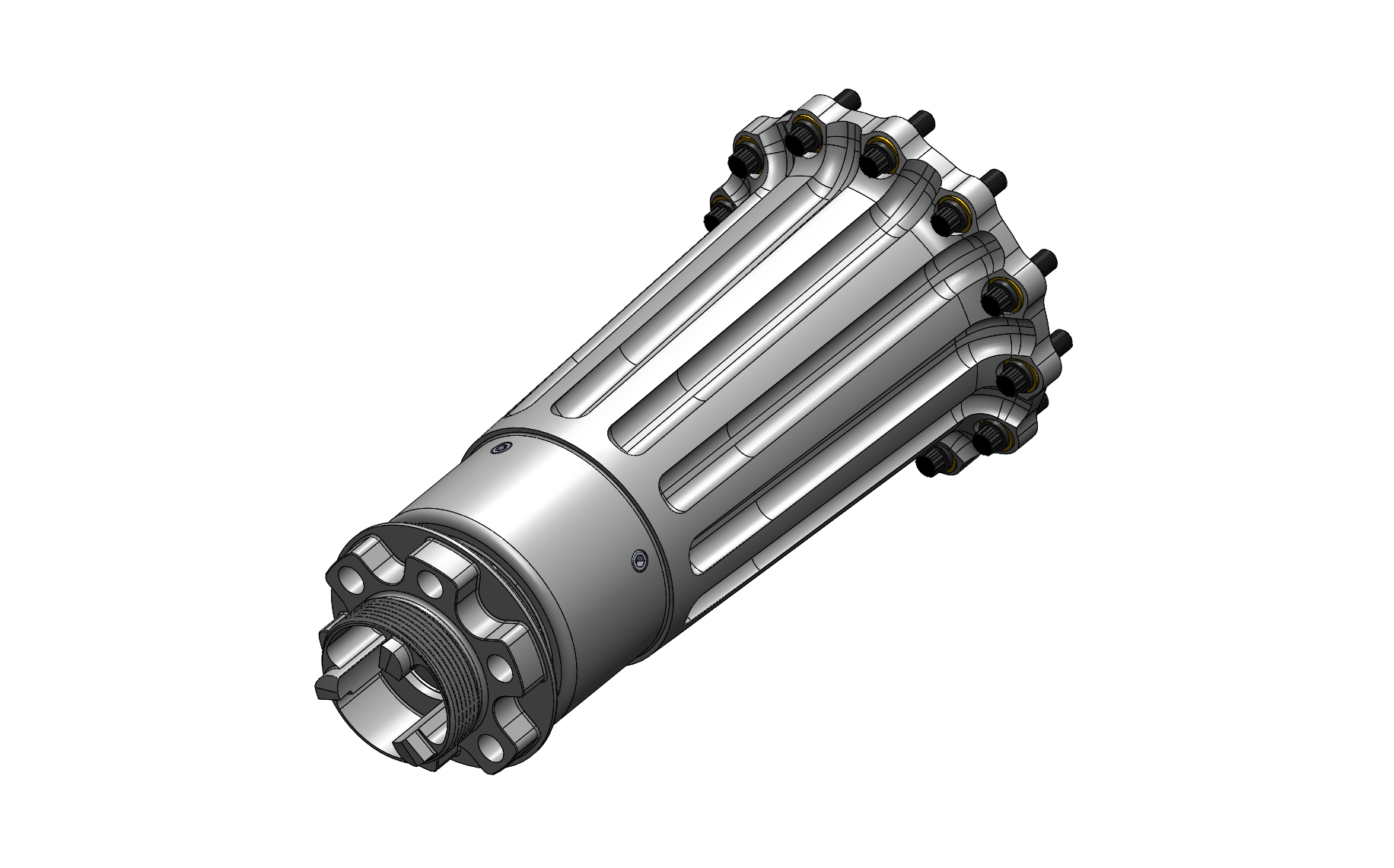

BLOWER TYPE ROOTS LENGTH 10.0" BLOWER PULLEY TYPE CENTER FLANGE SPLINE 1248.44 157000-0068 This roots style blower snout spaces the blower pulley out 10" from the blower case. The housing and drive hub have been modified to accept a center flange spline cut RCD blower pulley.

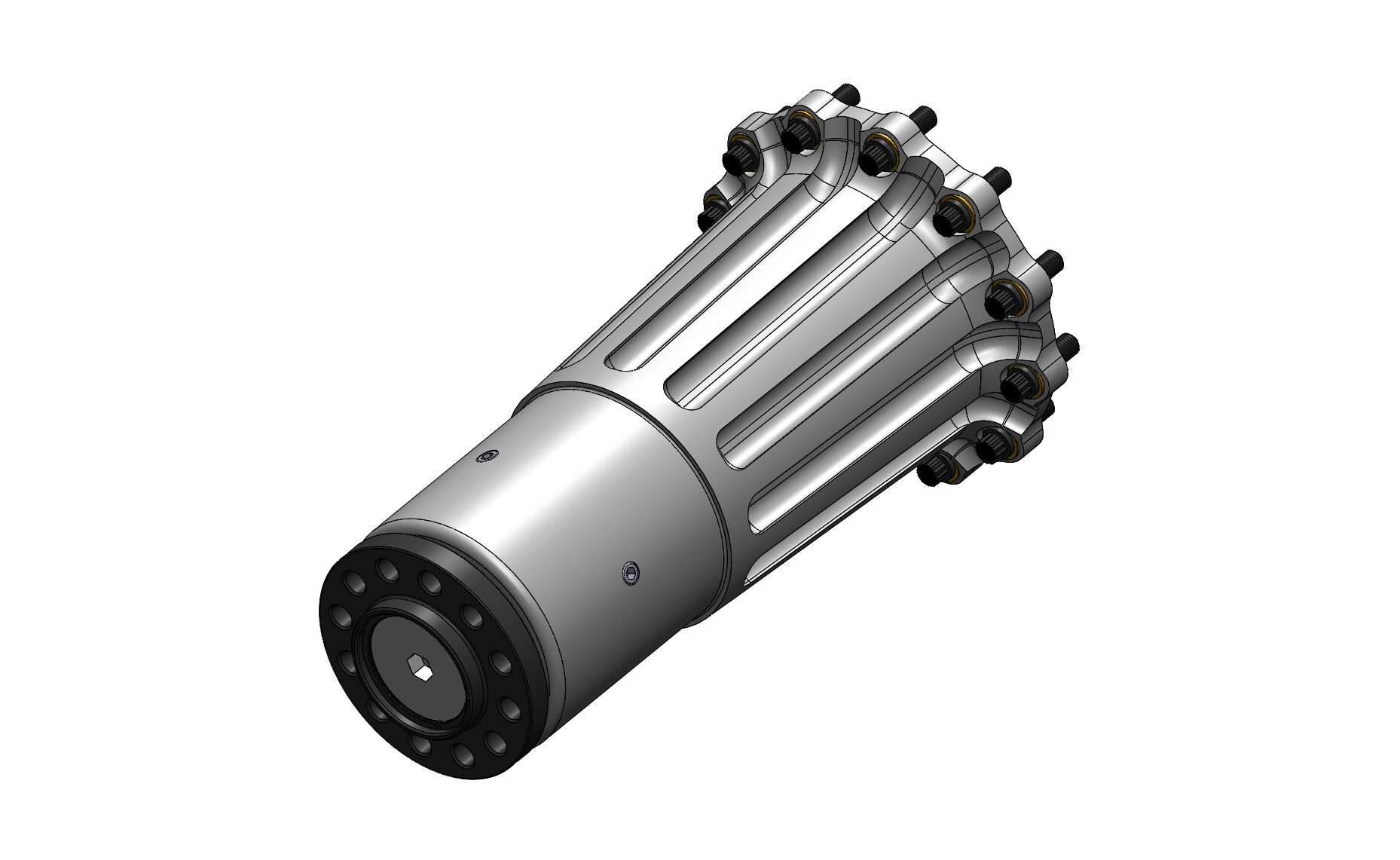

BLOWER TYPE ROOTS LENGTH 10.0" BLOWER PULLEY TYPE STD 1089.69 157000-0064 This roots style blower snout spaces the blower pulley out 10" from the blower case. The front drive hub will accept a standard RCD blower pulley.

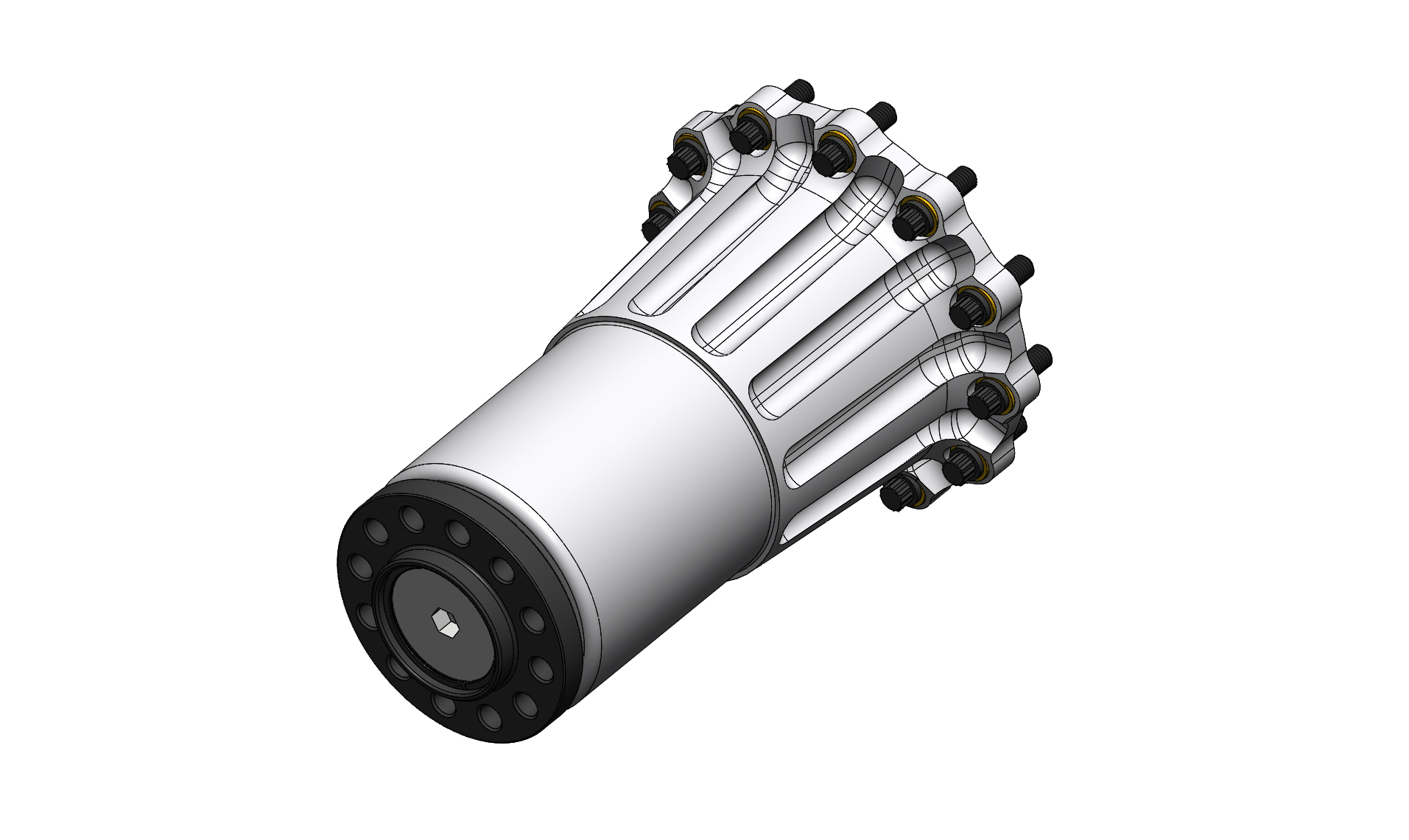

BLOWER TYPE ROOTS LENGTH 8.0" BLOWER PULLEY TYPE STD 726.46 157000-0034 This roots style blower snout spaces the blower pulley out 8" from the blower case. The front drive hub will accept a standard RCD blower pulley.

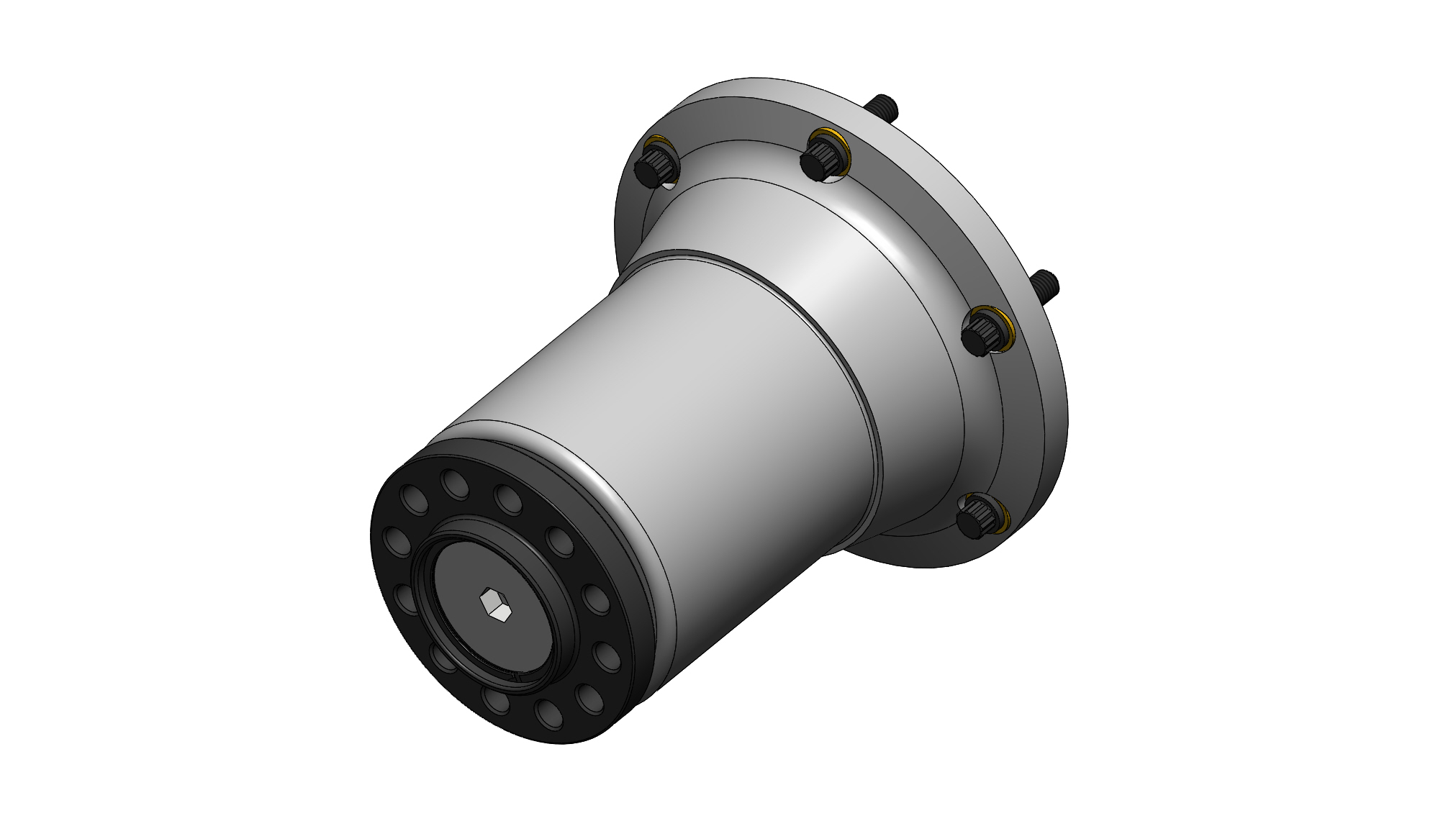

BLOWER TYPE ROOTS LENGTH 6.0" BLOWER PULLEY TYPE STD 516.17 157000-0039 This roots style blower snout spaces the blower pulley out 6" from the blower case. The front drive hub will accept a standard RCD blower pulley.

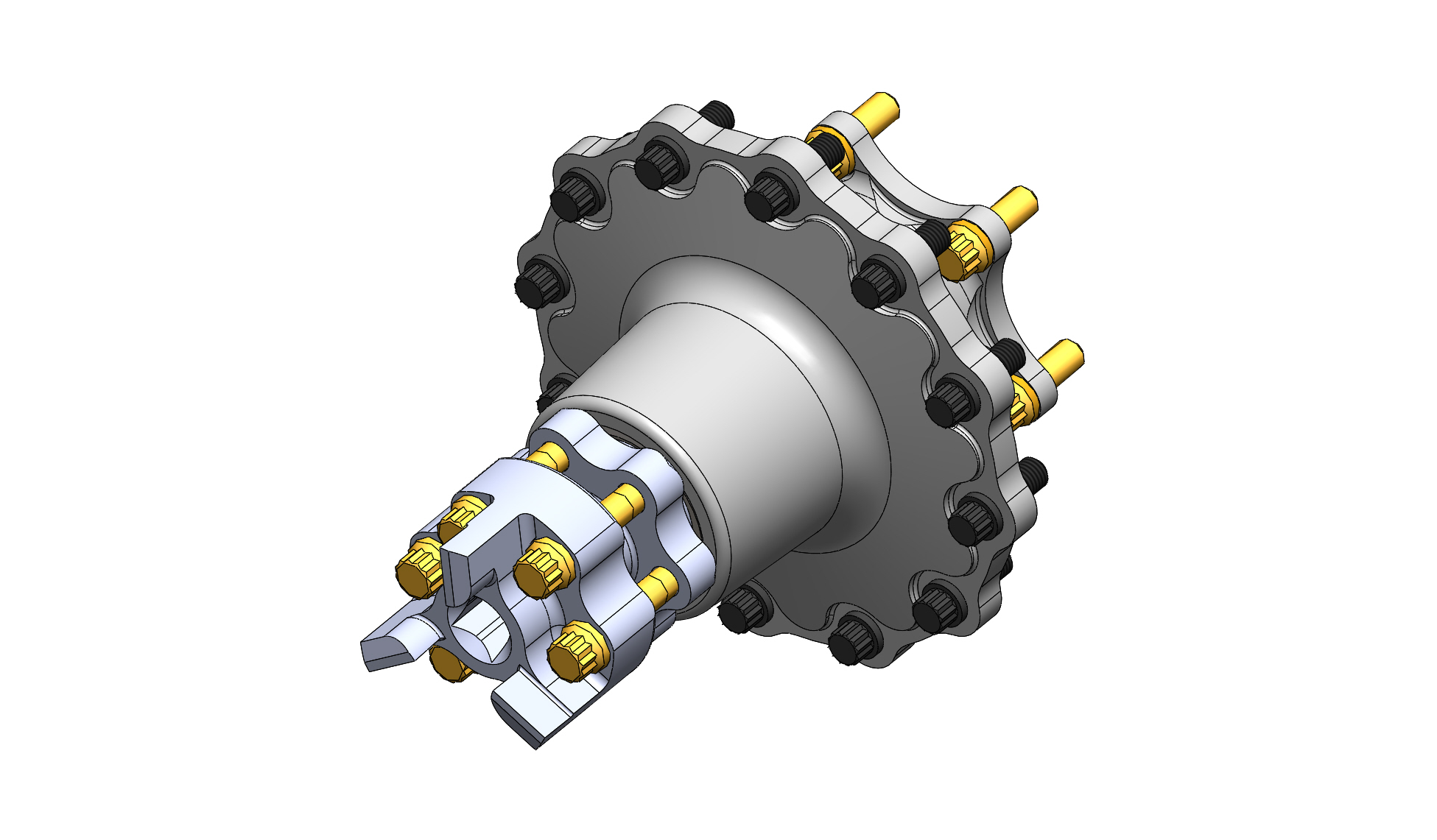

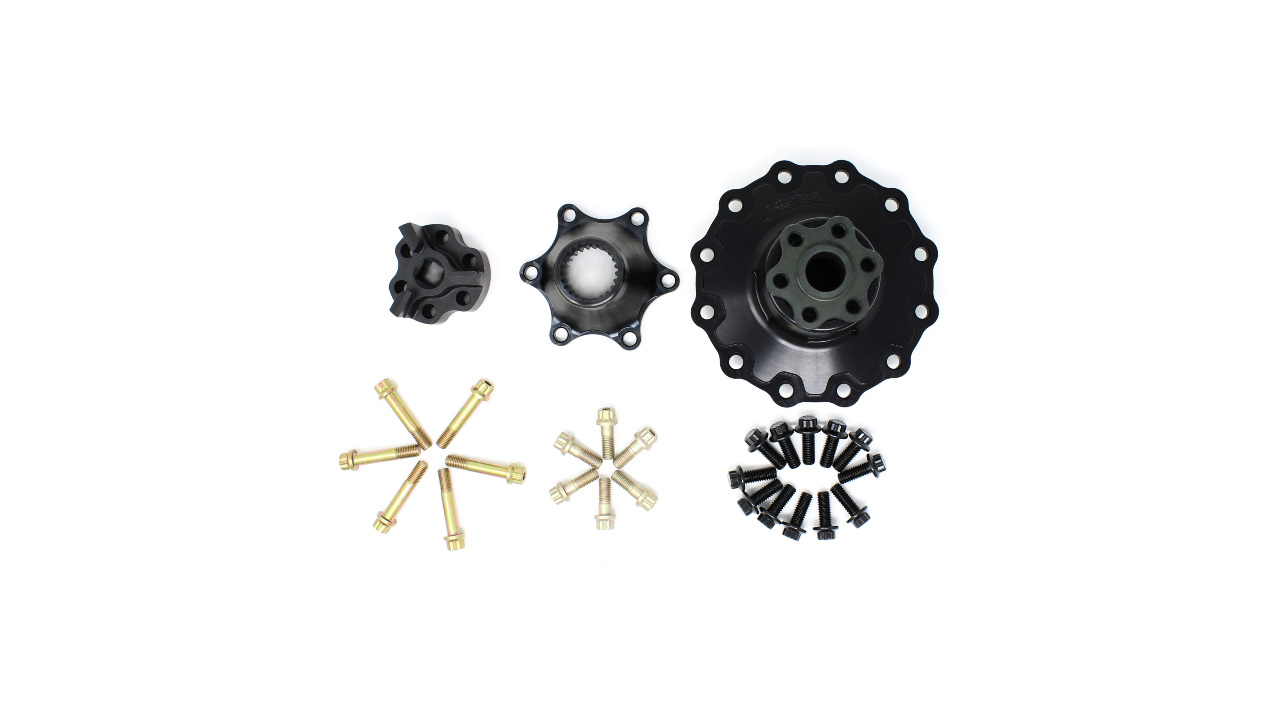

BLOWER TYPE SCREW LENGTH 2.5" BLOWER PULLEY TYPE STD 1049.99 157500-0010 This RCD screw blower snout spaces the pulley out 2.5" from the blower case, as close to the blower as possible. The front drive hub accepts a standard RCD screw blower pulley and is splined on one end to act as the blower drive shaft. Also included in this assembly is a rear drive hub, and a RCD screw blower engine jaw with all required hardware to attach these components.

BLOWER SNOUT ASSEMBLIES

These assemblies contain an aluminum blower snout housing with bearings and seals installed, a steel front drive hub with an aluminum shaft retaining bolt, and all the 'O" rings and hardware required to mount the snout to your blower case. NOTE: blower drive shafts and rear drive hubs sold separately, shafts may need to be cut to length depending on application.
0
157000-0034 BLOWER SNOUT 8.0 ROLLER BRG ALUM HOUSING GRAPHITE SEAL BOM.PDF   Download
157000-0039 BLOWER SNOUT 6.0 ROLLER BRG ALUM HOUSING GRAPHITE SEAL BOM.PDF   Download
157000-0064 BLOWER SNOUT 10.0 ROLLER BRG ALUM-STEEL STD FLANGE BOM.PDF   Download
157000-0065 BLOWER SNOUT 10.0 ROLLER BRG AL-STEEL CENTER FLANGE BOM.PDF   Download
157000-0068 BLOWER SNOUT 10.0 ROLLER BRG ALUM-STEEL CENTER FLG SPLINED BOM.PDF   Download
157500-0010 BLOWER SNOUT SCREW 24T SPLINE W-2 THRUST BOM.PDF   Download

Specifications
