SKU:


DRIVE HEX

1/2" 3/8" 7/16"

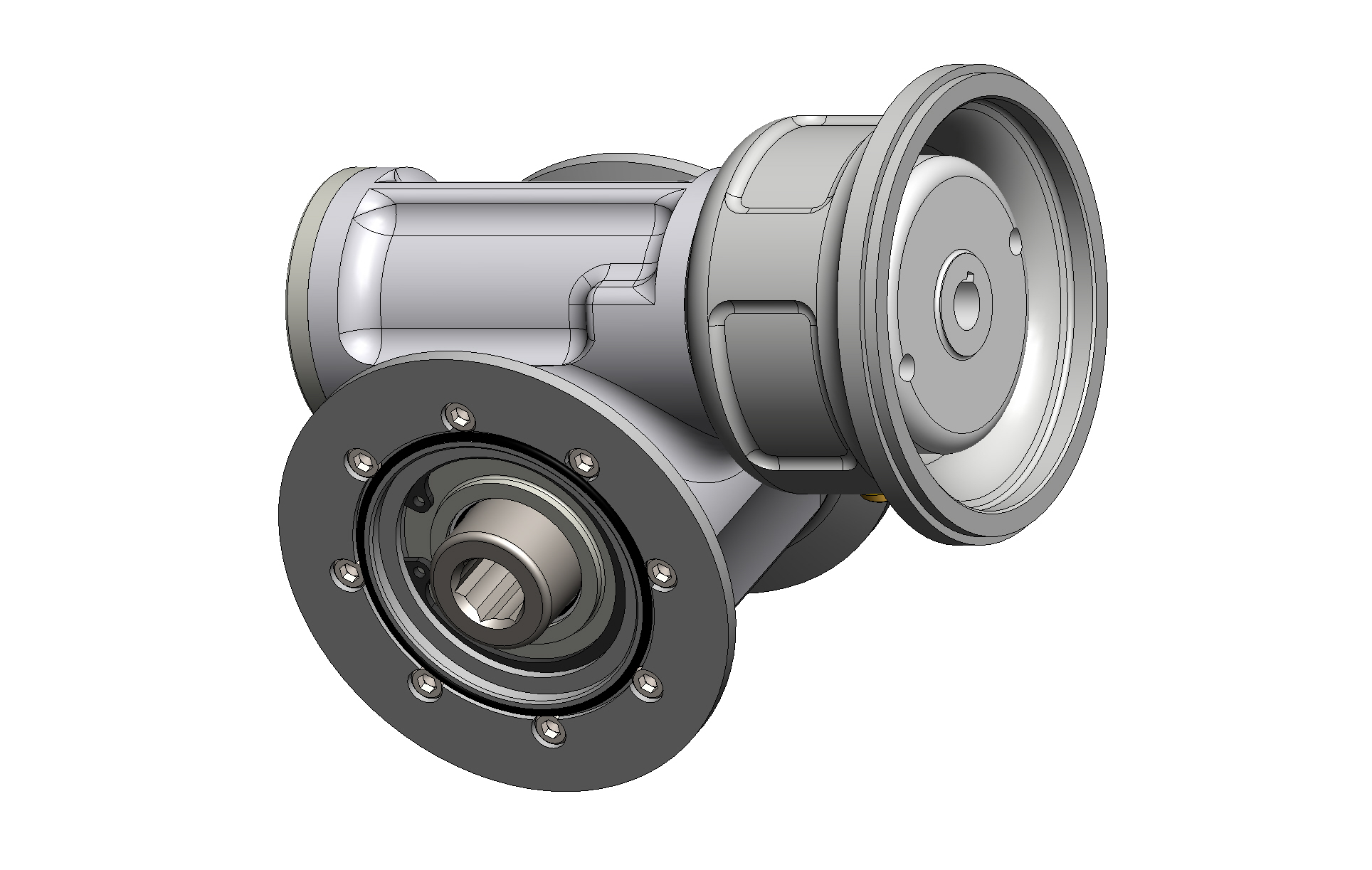

ROTATION CLOCKWISE DRIVE HEX 1/2" 895.71 302507-0006 This 90 degree front magneto drive is clockwise rotation with a 1/2" drive hex.
ROTATION CLOCKWISE DRIVE HEX 3/8" 895.71 302507-0001 This 90 degree front magneto drive is clockwise rotation with a 3/8" drive hex.
ROTATION CLOCKWISE DRIVE HEX 7/16" 895.71 302507-0003 This 90 degree front magneto drive is clockwise rotation with a 7/16" drive hex.
ROTATION COUNTER CLOCKWISE DRIVE HEX 1/2" 895.71 302507-0005 This 90 degree front magneto drive is counter clockwise rotation with a 1/2" drive hex.

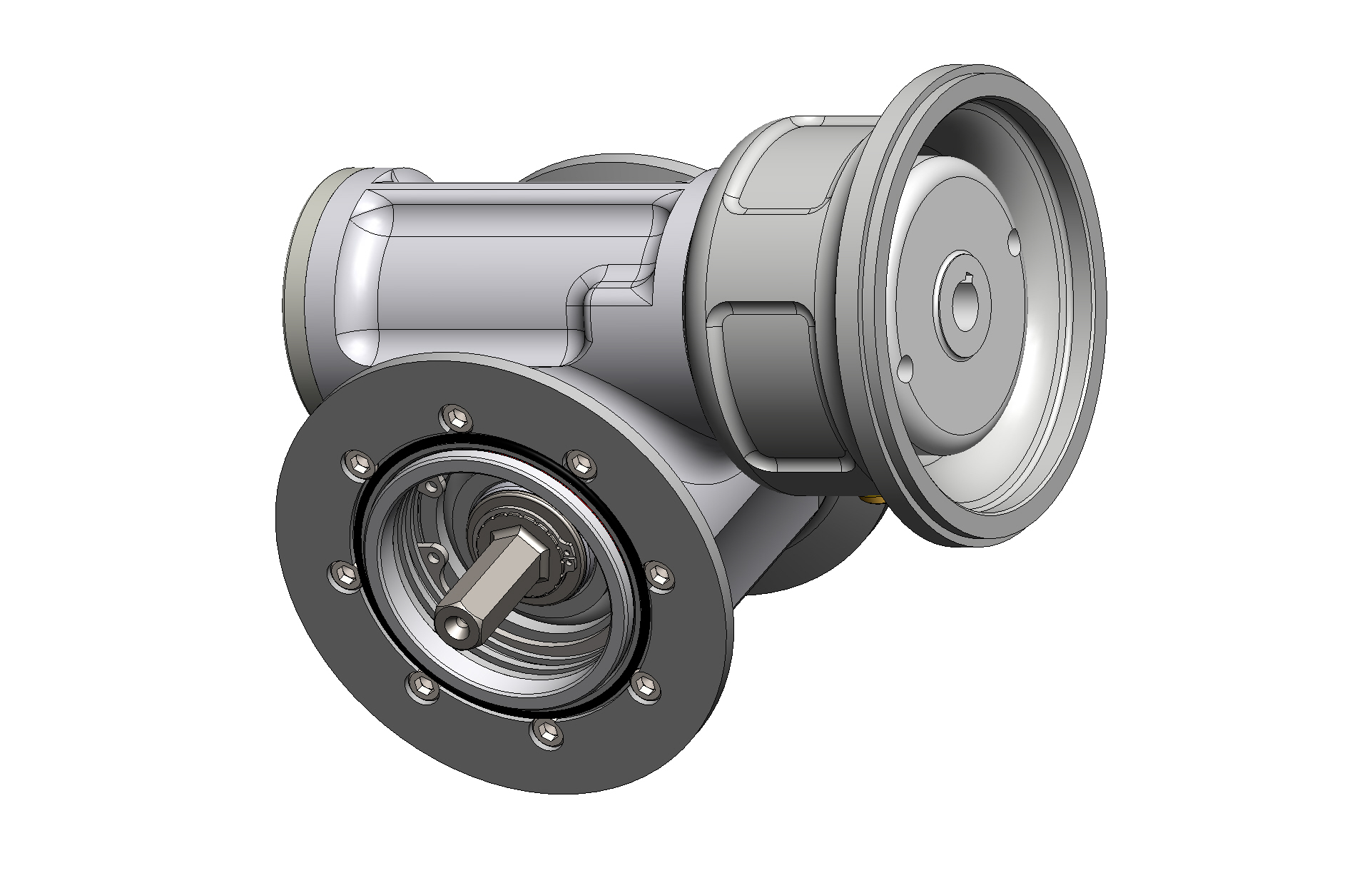

ROTATION COUNTER CLOCKWISE DRIVE HEX 3/8" 895.71 302507-0002 This 90 degree front magneto drive is counter clockwise rotation with a 3/8" drive hex.
ROTATION COUNTER CLOCKWISE DRIVE HEX 7/16" 895.71 302507-0004 This 90 degree front magneto drive is counter clockwise rotation with a 7/16” drive hex.

90 DEGREE FRONT MAGNETO DRIVES

The RCD 90 degree magneto drive can be band clamped to any drive on the engine that is running at 1/2 crank speed. The billet aluminum housing contains a 90 degree gear set and can be clocked 360 degrees to match the needs of your application while maintaining the ability to run another accessory from the front of the 90 degree magneto drive. The output and input drive can be configured to use 3/8", 7/16" or 1/2" male or female hex. This drive allows all MSD, Cirello or Mallory magnetos to be clamped directly on the drive and are available in either clockwise or counter clockwise rotation. Also provided is a port for a cam sync pickup.
0
302507-0001 FRONT MAGNETO DRIVE CW ROTATION .375 HEX BOM.PDF 1,009.00 KB. Download
302507-0002 FRONT MAGNETO DRIVE CCW ROTATION .375 HEX BOM.PDF 944.00 KB. Download
302507-0003 FRONT MAGNETO DRIVE CW ROTATION .438 HEX BOM.PDF 917.00 KB. Download
302507-0004 FRONT MAGNETO DRIVE CCW ROTATION .438 HEX BOM.PDF 920.00 KB. Download
302507-0005 FRONT MAGNETO DRIVE CCW ROTATION .50 HEX BOM.PDF 915.00 KB. Download
302507-0006 FRONT MAGNETO DRIVE CW ROTATION .50 HEX BOM.PDF 927.00 KB. Download

Specifications
